Schneider ATV32HD11N4 Variable Speed Drive installation issues are usually caused by incorrect motor configuration, wiring mistakes, insufficient cooling, or improper commissioning settings rather than a damaged drive unit. In industrial automation systems, the drive may power up correctly while still producing unstable speed control, unexpected trips, or poor acceleration performance because the motor parameters and application requirements are not correctly matched.

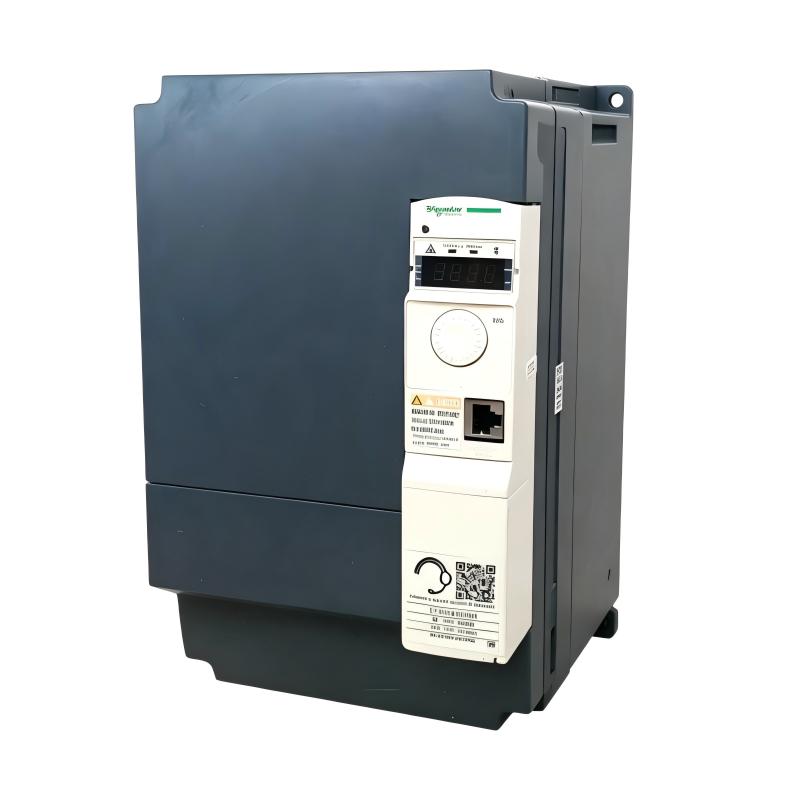

The Schneider ATV32HD11N4 Variable Speed Drive is an industrial AC drive used for variable-speed motor control applications. It is commonly applied in machine automation systems requiring adjustable motor speed, controlled acceleration, and improved energy management.

Schneider ATV32HD11N4 Variable Speed Drive Application Overview

The ATV32HD11N4 controls motor speed by adjusting output frequency and voltage according to the machine operating requirement.

Typical system structure:

Three Phase Power Supply
          |
          |
Schneider ATV32HD11N4 Drive
          |
          |
Motor Output
          |
          |
Industrial Equipment

Typical applications include:

• Conveyor systems
• Packaging machines
• Pumps and fans
• Material handling equipment
• Automated production lines
• Machine tools

In one packaging equipment upgrade project, engineers installed an ATV32HD11N4 Variable Speed Drive to replace a traditional motor starter.

Initial commissioning condition:

• Drive power: Normal
• Display operation: Normal
• Motor rotation: Correct
• Speed regulation: Unstable

The first assumption was mechanical load fluctuation.

The engineering team checked:

• Motor nameplate information
• Speed reference signal
• Acceleration settings
• Current response

The investigation found that the motor parameters entered into the drive did not match the actual motor specification.

Before correction:

• Speed fluctuation: ±8%
• Acceleration response: unstable
• Current peak: 34A

After parameter correction:

• Speed fluctuation reduced below ±2%
• Motor acceleration became smooth
• Drive operation remained stable

The problem was caused by commissioning setup, not drive hardware.

Schneider ATV32HD11N4 Installation Preparation and System Planning

Before installing the variable speed drive, engineers should evaluate the complete motor control system.

Preparation requirements:

• Confirm incoming voltage
• Verify motor power rating
• Check motor current requirement
• Prepare cabinet ventilation
• Plan control signal wiring

Installation checklist:

A common field mistake is completing the physical installation but skipping motor parameter verification during setup.

A variable speed drive depends on accurate motor data to calculate proper control behavior.

Schneider ATV32HD11N4 Variable Speed Drive Wiring Installation

Correct wiring directly affects drive reliability.

Engineers should verify:

Power Circuit Check

Inspect:

• Incoming three-phase terminals
• Motor output terminals
• Ground connection
• Cable tightening condition

Control Circuit Check

Verify:

• Start command wiring
• Stop input
• Analog speed reference
• Digital control signals

In one machine commissioning case:

Initial measurements:

• Input voltage: 402V AC
• Motor current during acceleration: 36A
• Normal running current: 19A

Field inspection found:

• Motor terminal connection was loose
• Ground connection resistance was higher than expected

After correction:

• Current peak decreased
• Drive stopped generating protection warnings
• Machine operation became stable

Schneider ATV32HD11N4 Drive Setup and System Configuration

Proper configuration is essential for reliable motor control.

Important setup parameters:

• Motor voltage
• Motor current
• Motor frequency
• Acceleration time
• Deceleration time
• Control source
• Speed reference channel

Typical commissioning logic:

IF Motor_Data = Correct
AND Command_Input = Valid
AND Output_Current = Normal

THEN

Enable Machine Operation

During setup, engineers should verify:

• Motor rotation direction
• Speed response
• Load behavior
• Current consumption

Field experience shows that many drive commissioning problems are caused by incorrect parameter entry rather than electronic failure.

Schneider ATV32HD11N4 Commissioning Validation and Performance Testing

Final commissioning should include both electrical and mechanical verification.

Electrical Testing

Check:

• Input voltage stability
• Output current
• Drive temperature
• Fault history

Machine Testing

Verify:

• Acceleration performance
• Speed stability
• Load response

Example commissioning results:

Before optimization:

• Speed variation: ±7%
• Startup current: 38A
• Frequent adjustment required

After optimization:

• Speed variation: ±1.5%
• Startup current: 26A
• Stable continuous operation

A successful ATV32HD11N4 installation requires correct wiring, accurate motor configuration, and complete load testing.
