Allen-Bradley 150-F85NBD SMC Flex Smart Motor Controller installation problems are usually caused by incorrect motor wiring, unsuitable current settings, improper control connections, or incorrect starting parameters rather than controller hardware failure. In industrial motor starting systems, the SMC Flex controller may appear fully operational while the motor still fails to start smoothly because the commissioning configuration does not match the actual mechanical load.

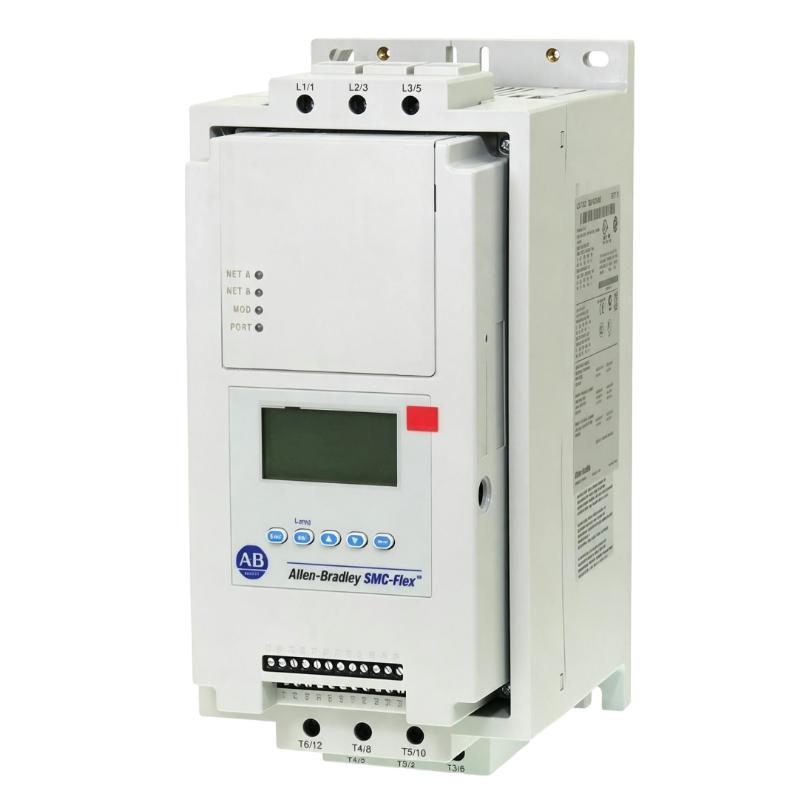

The Allen-Bradley 150-F85NBD SMC Flex Smart Motor Controller is a solid-state motor controller designed to provide controlled starting and stopping of three-phase AC motors. It reduces mechanical shock and limits starting current by controlling voltage applied to the motor during acceleration. It is widely used in pumps, fans, conveyors, compressors, and industrial processing equipment.

Allen-Bradley 150-F85NBD SMC Flex Smart Motor Controller Application Overview

The 150-F85NBD controls motor acceleration by gradually increasing the applied voltage, allowing large motors to reach operating speed with reduced electrical and mechanical stress.

Typical system structure:

Three Phase Power Supply
          |
          |
Allen-Bradley 150-F85NBD SMC Flex Controller
          |
          |
Three Phase AC Motor
          |
          |
Pump / Conveyor / Fan / Machine Load

Main functions:

• Soft motor starting
• Reduced inrush current
• Controlled acceleration and deceleration
• Motor overload protection
• Improved mechanical equipment reliability

Typical applications:

• Industrial pumps
• Conveyor systems
• Cooling fans
• Compressors
• Material handling equipment

In one factory water circulation project, engineers replaced a direct-on-line starter with an Allen-Bradley 150-F85NBD SMC Flex controller.

During commissioning:

• Controller power status: Normal
• Control signals: Normal
• Motor startup: Unstable

The initial assumption was that the motor had a mechanical problem.

The engineering team performed a field investigation:

• Checked incoming voltage
• Verified motor connections
• Compared motor nameplate data
• Reviewed controller settings

Measured results:

Before correction:

• Supply voltage: 460 VAC
• Control voltage: 120 VAC
• Motor starting current: Higher than expected
• Acceleration process: Interrupted

The investigation found that the motor full-load current parameter was incorrectly configured.

After correcting the motor data:

• Starting process became smooth
• Current peak decreased
• Pump reached normal speed

The problem was caused by commissioning configuration, not controller damage.

Allen-Bradley 150-F85NBD Installation Preparation and Motor System Planning

Before installation, engineers should analyze the complete motor control system.

Preparation requirements:

• Confirm motor voltage rating
• Verify motor full-load current
• Evaluate mechanical load characteristics
• Prepare power wiring
• Confirm control circuit requirements

Installation checklist:

A common field mistake is selecting a soft starter only according to motor power.

Engineers should also evaluate:

• Starting torque demand
• Load inertia
• Number of motor starts
• Required acceleration time

Correct application analysis prevents unnecessary startup faults.

Allen-Bradley 150-F85NBD SMC Flex Electrical Wiring Installation

Proper wiring is essential for stable motor operation.

Main Power Connection

Engineers should verify:

• Three-phase input terminals
• Phase sequence
• Cable tightening
• Protective devices

Motor Output Connection

Check:

• Motor terminal connection
• Motor grounding
• Cable insulation

Control Circuit Wiring

Verify:

• Start command
• Stop command
• Control voltage
• Auxiliary contacts

During one field commissioning case:

Initial condition:

• Start command received
• Controller entered startup mode
• Motor failed to accelerate

Engineering inspection showed:

• Controller wiring was correct
• Motor output phases were incorrectly identified

After correcting motor connections:

• Rotation direction became correct
• Motor acceleration completed
• Equipment started normally

Allen-Bradley 150-F85NBD Setup and System Configuration

The setup stage determines the final starting performance.

Important configuration areas:

• Motor full-load current
• Start ramp time
• Current limit
• Overload protection
• Stop mode selection

Typical commissioning logic:

IF Motor_Data = Correct
AND Wiring_Status = Normal
AND Start_Command = Valid

THEN

Enable Soft_Start_Process

Engineers should verify:

• Motor accelerates smoothly
• Current remains within limits
• Protection functions operate correctly
• Bypass operation works properly

Incorrect configuration is one of the most common causes of SMC Flex startup problems.

Allen-Bradley 150-F85NBD Commissioning Validation and Performance Testing

Final commissioning should test the controller under real operating conditions.

Motor Startup Test

Check:

• Start response
• Acceleration time
• Current reduction

Load Operation Test

Verify:

• Mechanical movement
• Motor temperature
• Running stability
• Production performance

Example commissioning results:

Before adjustment:

• High starting current
• Mechanical impact during startup
• Unstable acceleration

After adjustment:

• Smooth motor acceleration
• Reduced electrical stress
• Stable production operation

A successful Allen-Bradley 150-F85NBD installation requires correct wiring, accurate parameter configuration, and practical field commissioning.
