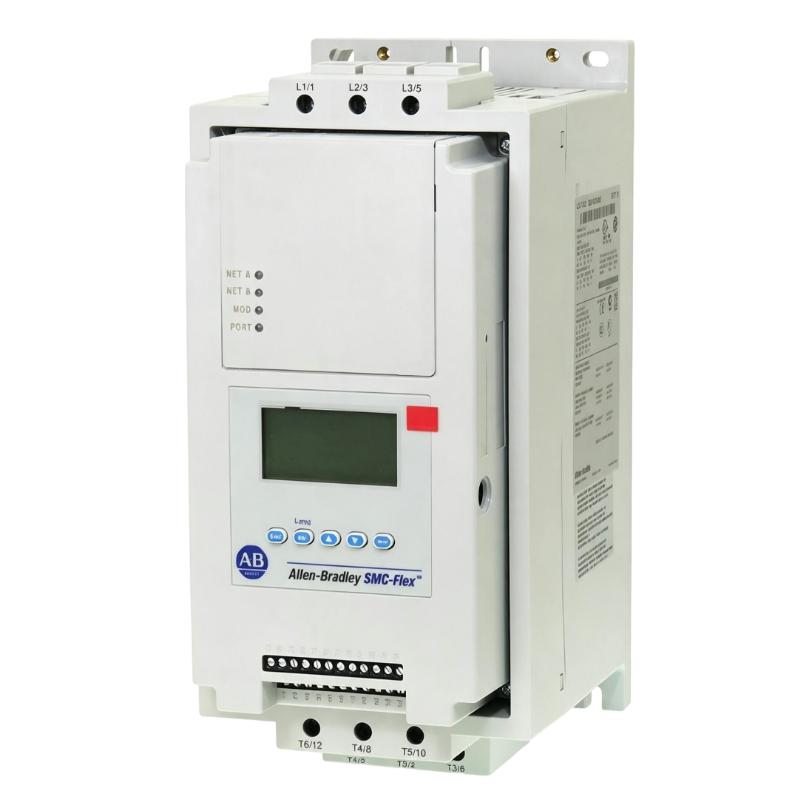

Allen-Bradley 150-F85NBD SMC Flex Smart Motor Controller faults are commonly related to motor overload, incorrect acceleration settings, phase imbalance, control wiring problems, or mechanical load changes rather than immediate controller failure. In industrial troubleshooting, engineers should diagnose the entire motor starting system before replacing the smart motor controller.

This article describes a field case where an SMC Flex controller repeatedly stopped during conveyor startup.

Allen-Bradley 150-F85NBD SMC Flex Motor Controller Fault Symptoms

Typical fault symptoms include:

• Motor fails to reach full speed
• Controller trips during acceleration
• Overload protection activates
• Startup requires repeated reset
• Production equipment stops unexpectedly

Field case:

A packaging conveyor system experienced intermittent startup failures.

Initial observations:

• PLC output command was normal
• Controller received start signal
• Motor stopped before reaching operating speed

The maintenance team suspected:

• Controller power component failure
• Motor insulation damage
• PLC output fault

Engineers started troubleshooting from the complete drive chain.

Allen-Bradley 150-F85NBD Fault Diagnosis Process and System Analysis

Troubleshooting path:

Power Supply
      |
      |
150-F85NBD SMC Flex Controller
      |
      |
AC Motor
      |
      |
Mechanical Conveyor Load

Engineers checked:

• Three-phase voltage balance
• Controller fault history
• Motor current
• Mechanical resistance

Diagnostic results:

• Supply voltage: Normal
• Control power: Normal
• Motor current: Excessive during startup

The problem was related to starting conditions.

Allen-Bradley 150-F85NBD Motor Overload Fault Investigation

Field measurements:

Before repair:

• Supply voltage: 460 VAC
• Motor starting current: 175% rated current
• Startup time: Longer than expected
• Fault frequency: Several times per shift

Engineers analyzed:

• Motor nameplate information
• Current limit settings
• Mechanical load condition

The investigation found:

• Conveyor load had increased after production modification
• Original startup parameters were no longer suitable

The SMC Flex protection function operated correctly.

Allen-Bradley 150-F85NBD Root Cause Analysis and Recovery

The final root cause was a mismatch between controller settings and actual operating conditions.

Previous condition:

• Conveyor operated with lighter material
• Existing startup settings worked correctly

New condition:

• Product weight increased
• Starting torque requirement became higher

Failure pattern:

Normal operation:

• Motor started under low load

Fault condition:

• High mechanical resistance
• Current increased rapidly
• Controller activated protection

Engineering conclusion:

The fault was caused by application changes and parameter mismatch, not controller hardware failure.

Allen-Bradley 150-F85NBD Troubleshooting Repair and System Recovery

Corrective actions:

Parameter Optimization

Performed:

• Increased acceleration ramp time
• Adjusted current limit
• Verified overload configuration

Mechanical System Inspection

Checked:

• Conveyor alignment
• Bearing condition
• Load movement

Final results:

Before repair:

• Startup failures: Multiple times per shift
• Production interruption: Frequent

After repair:

• Motor startup stable
• No overload trips
• Production returned to normal

Allen-Bradley 150-F85NBD Common Fault Patterns and Diagnostic Methods

Motor Overload Fault

Symptoms:

• Controller trips after startup
• Motor current remains high

Diagnosis:

• Measure motor current
• Check mechanical load
• Review overload settings

Phase Loss Fault

Symptoms:

• Motor cannot accelerate
• Current imbalance appears

Diagnosis:

• Measure three-phase voltage
• Check power terminals
• Inspect incoming supply

Start Command Failure

Symptoms:

• Controller receives command
• Motor does not start

Diagnosis:

• Check control voltage
• Verify start input wiring
• Review control logic

Allen-Bradley 150-F85NBD Long-Term Maintenance Strategy

For reliable SMC Flex operation:

• Record fault history
• Monitor motor current trends
• Check power connections regularly
• Maintain proper ventilation
• Backup controller parameters

A practical engineering rule:

“When an Allen-Bradley 150-F85NBD fault occurs, verify motor condition, load requirements, and configuration settings before replacing the controller.”

Recommended troubleshooting sequence:

Power inspection → Controller diagnostics → Motor current measurement → Parameter review → Mechanical load check → Final startup validation.
