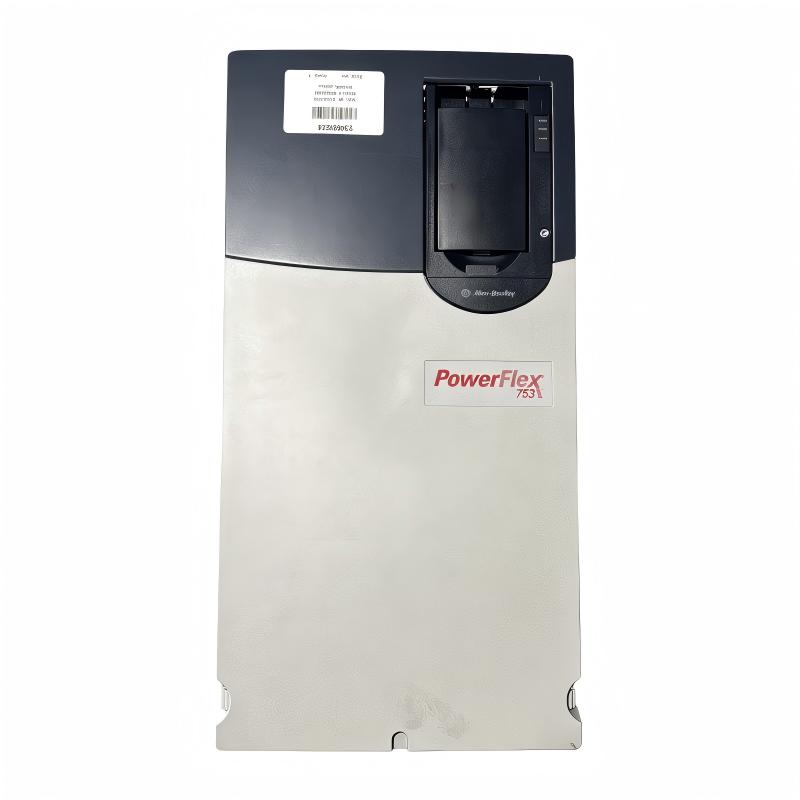

Allen Bradley 20F11ND096AA0NNNNN PowerFlex 753 AC Drive

Heavy-Duty Industrial Applications and Automation Deployment

The Allen Bradley 20F11ND096AA0NNNNN PowerFlex 753 AC Drive is a high-capacity variable frequency drive engineered for demanding industrial motor control applications that require strong torque performance, stable operation, and flexible integration into advanced automation systems. As part of the PowerFlex 753 AC Drive family, this model is designed to provide reliable speed control for large motors used in manufacturing, processing, and infrastructure applications.

With a 96 A output rating and 480 VAC class power design, the drive is suitable for applications where consistent motor performance and efficient energy management are critical.

Typical applications include:

• Heavy-duty conveyor systems
• Material handling equipment
• Industrial pumps and compressors
• Large ventilation and fan systems
• Process manufacturing machinery
• Packaging production lines
• Water and wastewater systems
• Factory automation equipment

The PowerFlex 753 platform provides a flexible solution for OEM manufacturers, machine builders, and system integrators requiring dependable motor control technology. Its modular architecture allows engineers to configure communication, feedback, and control options according to specific automation requirements.

Key Performance Advantages and Industrial Benefits

High-Power Motor Control Capability

The 20F11ND096AA0NNNNN is designed for larger industrial motors, delivering reliable speed regulation and torque control for applications with demanding load conditions.

Advanced Drive Integration

This PowerFlex 753 AC Drive can be integrated into modern Allen Bradley automation systems, helping operators achieve centralized monitoring, improved diagnostics, and efficient machine coordination.

Stable Operation Under Industrial Loads

The drive provides consistent performance during acceleration, deceleration, and continuous operation, helping reduce mechanical stress and improve equipment reliability.

Built-In Functional Expansion

The PowerFlex 753 series supports optional communication and feedback accessories, allowing users to expand system functionality as automation requirements increase.

Improved Energy Efficiency

By controlling motor speed according to process requirements, the drive helps optimize energy usage and reduce unnecessary motor operation.

Maintenance-Friendly Design

The modular structure and diagnostic functions simplify troubleshooting procedures, allowing maintenance teams to identify operating issues more efficiently.

Industrial Application Reliability

Designed for factory environments, this drive combines robust construction with flexible configuration options, making it suitable for long-term industrial service.

Technical FAQs – Allen Bradley 20F11ND096AA0NNNNN PowerFlex 753 AC Drive

1. What motor applications are suitable for the 20F11ND096AA0NNNNN?
This drive is designed for high-power industrial motors used in conveyors, pumps, fans, compressors, and heavy manufacturing equipment.

2. What control technology does this PowerFlex 753 drive use?
The drive supports advanced motor control methods including sensorless vector control for accurate speed and torque management.

3. Can the drive be integrated with ControlLogix and CompactLogix systems?
Yes. It is designed for integration with Allen Bradley PLC platforms through compatible communication options.

4. Does this model support external braking resistors?
Yes. The built-in dynamic braking transistor allows connection of an external braking resistor for applications requiring rapid stopping.

5. How can communication problems be diagnosed on this drive?
Engineers can check network configuration, communication module status, controller settings, and drive diagnostic information.

6. Can the drive operate with encoder feedback?
Yes. Optional feedback modules can be installed for applications requiring improved speed accuracy and closed-loop control.

7. What protection functions are included in the drive?
The drive provides monitoring and protection functions for conditions such as overload, overvoltage, undervoltage, and thermal events.

8. How are drive parameters configured?
Parameters can be adjusted through compatible Rockwell Automation configuration software or Human Interface Module accessories.

9. What should be checked if the drive reports an overcurrent fault?
Motor wiring, mechanical load conditions, acceleration settings, and motor parameters should be inspected before restarting operation.

10. Can this drive be used in automated production systems?
Yes. Its communication capability and flexible configuration make it suitable for integrated industrial automation applications.
