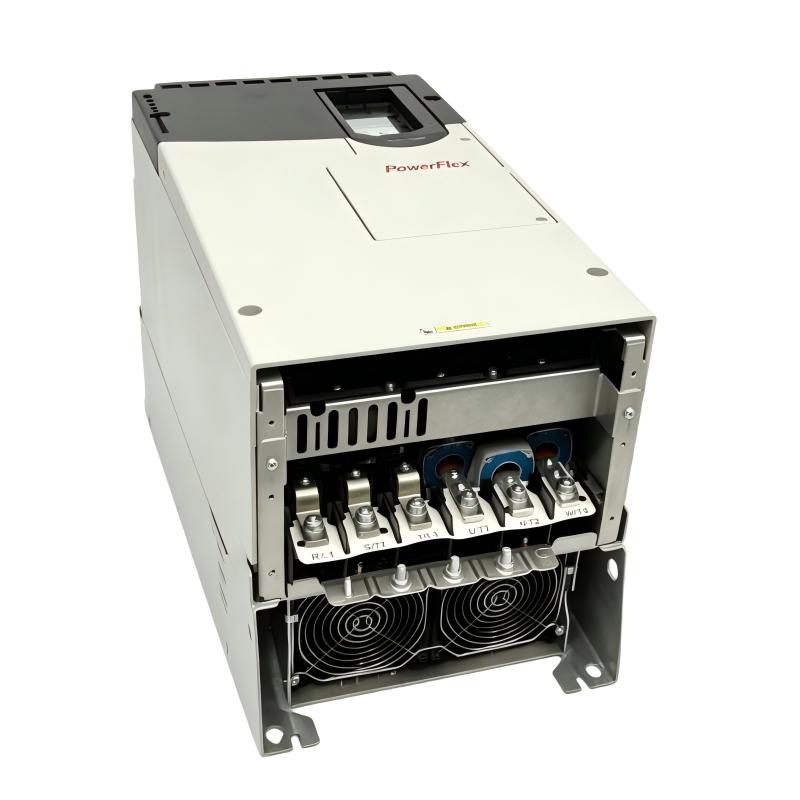

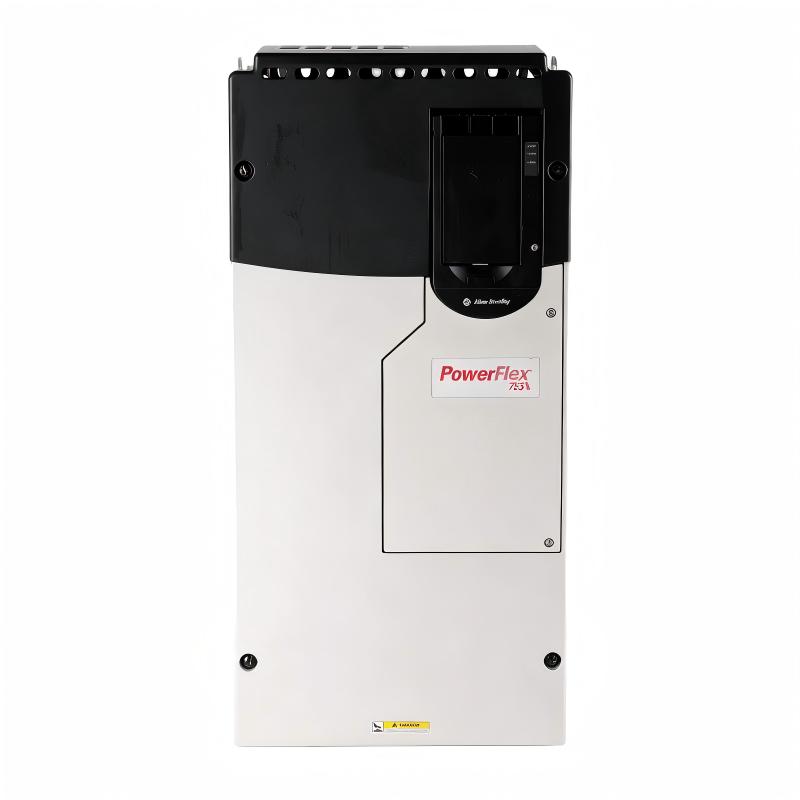

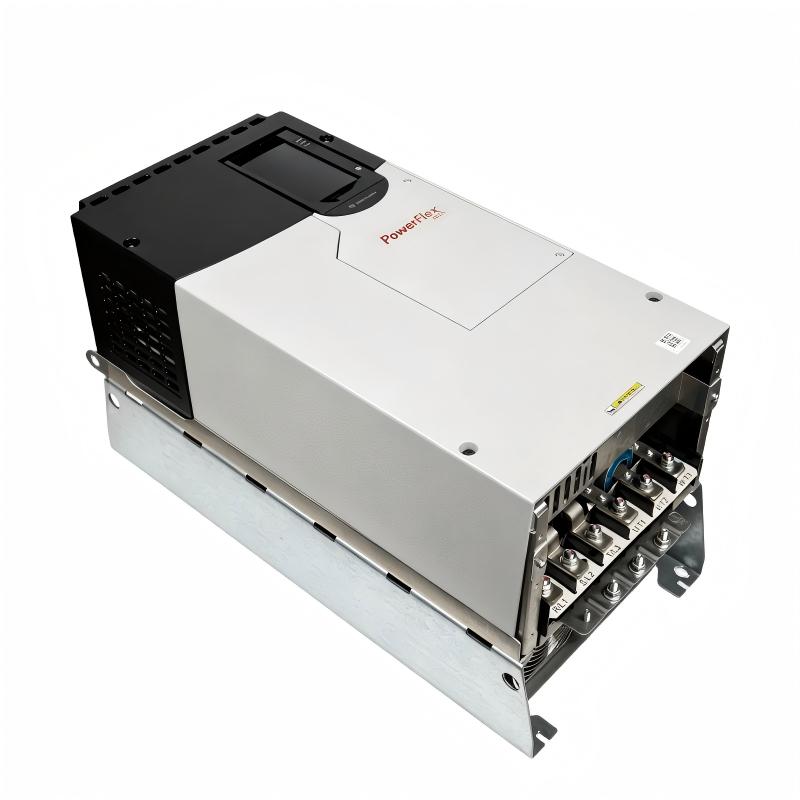

Allen Bradley 20F1AND248AN0NNNNN PowerFlex 753 AC Drive

High-Capacity Industrial Drive Applications and Automation Control Solutions

The Allen Bradley 20F1AND248AN0NNNNN PowerFlex 753 AC Drive is a high-performance variable frequency drive engineered for large industrial motor applications requiring reliable power control, precise speed management, and flexible integration with automation systems. As part of the PowerFlex 753 AC Drive family, this model is designed to support demanding production environments where operational stability and efficient motor performance are essential.

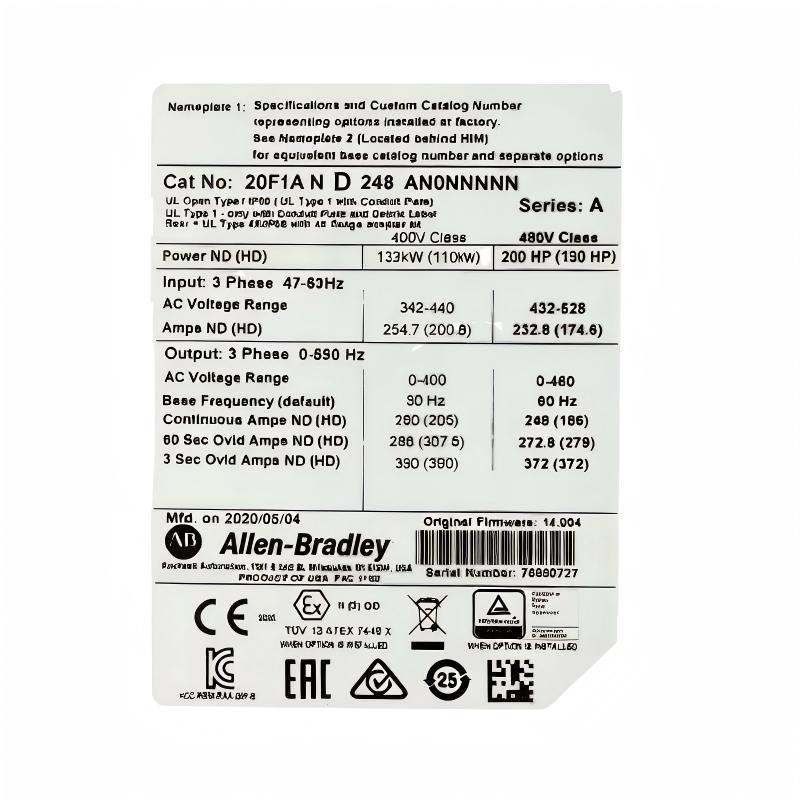

Featuring a 480 VAC three-phase power configuration, 248 A output capability, embedded I/O, forced-air cooling, and a Frame 6 design, the drive provides a scalable solution for heavy-duty industrial automation applications.

Typical application areas include:

• Heavy-duty conveyor systems
• Large industrial pumps
• Compressors and ventilation equipment
• Material handling machinery
• Manufacturing production lines
• Process automation systems
• Mining and energy equipment
• Large OEM machine platforms

The 20F1AND248AN0NNNNN is suitable for system integrators and engineers who require a dependable motor control platform capable of handling high-power applications while maintaining compatibility with Allen Bradley automation environments. Its modular architecture supports future system expansion and helps simplify industrial drive management.

Industrial Performance Advantages and System Benefits

High-Power Motor Control Capability

The PowerFlex 753 AC Drive provides excellent performance for large motor applications, delivering stable frequency control and reliable torque management for continuous industrial operation.

Designed for Demanding Production Environments

With a robust industrial design and forced-air cooling structure, this drive supports reliable performance in applications where motors operate under heavy and continuous loads.

Flexible Automation Integration

The drive is designed to work within Allen Bradley control architectures, allowing integration with PLC-based automation systems for centralized control, monitoring, and diagnostics.

Optimized Machine Efficiency

By precisely controlling motor speed according to process requirements, the drive helps reduce unnecessary energy consumption and improves overall equipment efficiency.

Modular Expansion Capability

The PowerFlex 753 platform allows users to expand functionality with optional communication, feedback, and I/O modules, providing flexibility for changing automation requirements.

Simplified Maintenance Management

Integrated diagnostics and modular components help maintenance teams identify operating conditions faster, reducing troubleshooting time and improving system availability.

Reliable Industrial Investment

The 20F1AND248AN0NNNNN provides a durable solution for companies requiring long-term motor control performance in manufacturing, processing, and infrastructure applications.

Technical FAQs – Allen Bradley 20F1AND248AN0NNNNN PowerFlex 753 AC Drive

1. What type of motors can the 20F1AND248AN0NNNNN control?
This AC drive is designed for large industrial AC motors used in conveyors, pumps, fans, compressors, and heavy machinery applications.

2. What control methods are available on the PowerFlex 753 series?
The PowerFlex 753 platform supports advanced adjustable frequency control and vector-based motor control technologies.

3. Can this drive communicate with Allen Bradley PLC systems?
Yes. The drive can be integrated with Allen Bradley PLC platforms through compatible communication modules and industrial networks.

4. Does this model support dynamic braking?
The 20F1AND248AN0NNNNN configuration does not include an internal dynamic braking transistor. External braking solutions can be selected according to application requirements.

5. How are drive parameters configured?
Parameters can be configured using compatible Rockwell Automation programming tools, network communication, or optional Human Interface Module accessories.

6. What protection functions are included in the drive?
The drive provides monitoring and protection functions for overload, voltage abnormalities, thermal conditions, and operational faults.

7. Can encoder feedback be added to this drive?
Yes. Optional feedback modules can be installed for applications requiring improved speed regulation and closed-loop motor control.

8. How can communication faults be diagnosed?
Engineers should check communication settings, network status, controller configuration, and drive diagnostic information.

9. What should be checked when an overcurrent fault occurs?
Motor wiring, mechanical load conditions, acceleration parameters, motor data settings, and output connections should be inspected.

10. Is this drive suitable for continuous-duty applications?
Yes. The PowerFlex 753 series is designed for industrial applications requiring reliable and continuous motor operation.
