Brand:ABB Bailey Item No.:NKAS01-15 Product Origin:Sweden (SE) Product Dimensions:Cable Length: 15 feet Product Weight:Shipping Weight: 3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

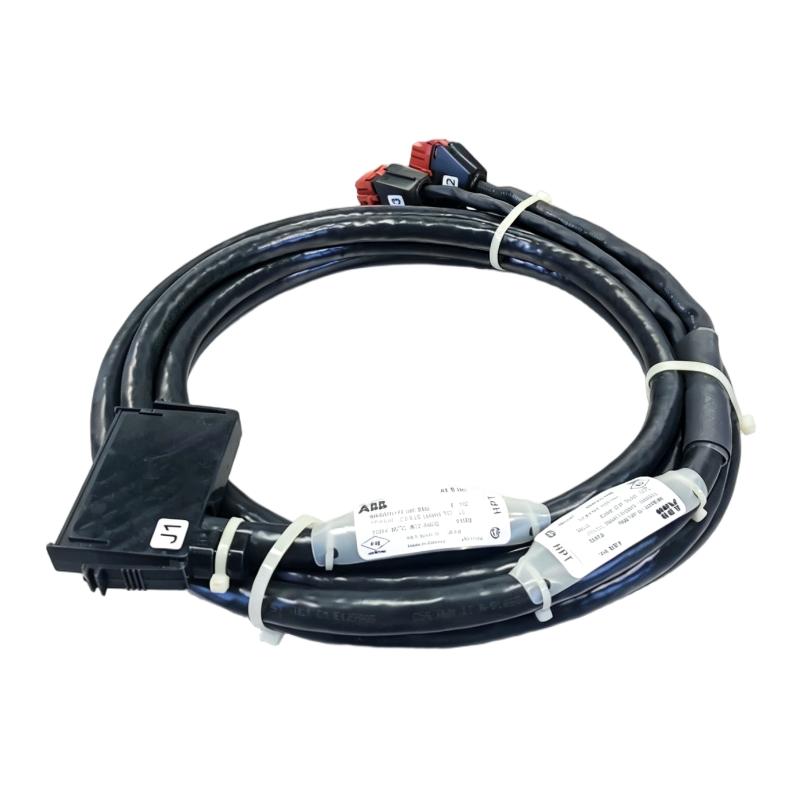

The ABB Bailey NKAS01-15 Analog Module TU Cable is an essential wiring component for ABB Bailey analog input systems. It provides a dedicated connection path between the ASI analog interface and the NTAI06 termination unit, allowing field measurement signals to be transferred reliably into the distributed control system.
The cable features a PVC-insulated design and a prefabricated structure that simplifies installation compared with manually assembled field wiring. With a standard length of 15 feet, the NKAS01-15 provides sufficient flexibility for control cabinet layouts while maintaining organized signal routing.
In industrial automation environments, signal quality directly affects measurement accuracy and process control performance. By using an original ABB Bailey-designed cable assembly, engineers can reduce wiring uncertainty and maintain consistent connection quality across the automation system.
For facilities maintaining ABB Bailey INFI 90 installations, the NKAS01-15 remains a valuable spare and replacement component, supporting reliable analog signal integration and long-term system availability.
Technical Specifications
Specification
Description
Manufacturer
ABB Bailey
Model Number
NKAS01-15
Product Type
Analog Module TU Cable
Cable Type
Prefabricated PVC Cable
System Platform
ABB Bailey INFI 90 / Symphony
Connection Function
ASI to NTAI06 Analog Input Connection
Cable Length
15 ft (4.6 m)
Insulation Material
PVC
Application
Analog Signal Module Connection
Connector Type
ABB Bailey Dedicated Interface Connector
Installation Type
Control Cabinet Wiring
Product Category
Industrial Automation Cable
Dimensions
53.34 × 342.90 × 304.80 mm
Weight
3.00 kg (6.61 lb)
Recommended Related Models
Model
Product Type
Application
NTAI06
Analog Input Termination Unit
Analog field signal termination
SPASI01
Analog Input Module
Process analog signal processing
NKAS01-10
Analog Module TU Cable
Shorter ASI to NTAI06 connection
NKAS01-25
Analog Module TU Cable
Extended analog module connection
NTAI05
Analog Input Termination Unit
Alternative analog input interface
Popular Related Models
Model
Product Type
ABB Bailey NTAI06
Analog Input Termination Unit
ABB Bailey SPASI01
Analog Input Module
ABB Bailey NKAS01-10
Analog Module TU Cable
ABB Bailey NKAS01-25
Analog Module TU Cable
ABB Bailey NTAI05
Analog Input Termination Unit
Industrial Signal Connection Applications and Analog Module Wiring Solutions
The ABB Bailey NKAS01-15 Analog Module TU Cable is a prefabricated industrial connection cable designed for ABB Bailey INFI 90 and Symphony control system analog input applications. It provides a reliable signal connection between the ASI analog interface and the NTAI06 analog input termination unit, ensuring stable communication between field signals and control system processing modules.
Designed specifically for ABB Bailey automation architectures, the NKAS01-15 simplifies cabinet wiring and reduces installation complexity by providing a factory-assembled cable solution. Its PVC-insulated construction and dedicated connector configuration make it suitable for demanding industrial environments where signal integrity and long-term reliability are essential.
Typical application areas include:
ABB Bailey INFI 90 DCS systems
Symphony Harmony control platforms
Industrial analog signal acquisition systems
Process instrumentation connections
Power generation automation
Chemical and petrochemical plants
Oil and gas process control systems
Industrial control cabinet wiring
The NKAS01-15 is commonly used to connect analog input termination components with control modules, helping engineers achieve cleaner wiring layouts, faster installation, and improved maintenance efficiency. Its dedicated ABB Bailey design makes it a dependable choice for replacement projects and system expansions.
Main Advantages and Industrial Connection Benefits
Purpose-Built ABB Bailey Analog Interface Cable
The NKAS01-15 is engineered specifically for ABB Bailey analog module applications, providing direct compatibility with ASI and NTAI06 connection requirements.
Reliable Analog Signal Transmission
A stable cable connection is essential for accurate process measurement. The NKAS01-15 helps maintain consistent signal transmission between field termination equipment and analog processing modules.
Pre-Fabricated Installation Design
The cable is supplied as a ready-made connection assembly, reducing wiring time and minimizing the possibility of installation errors in industrial control cabinets.
Optimized for Process Automation Systems
The cable supports analog signal applications commonly found in continuous process industries, including temperature, pressure, flow, and level monitoring systems.
Improved Cabinet Wiring Efficiency
Using a dedicated ABB Bailey cable solution helps simplify cabinet layouts, making troubleshooting and future maintenance activities more convenient.
Enhanced System Reliability
Factory-designed connectors and compatible cable construction provide a dependable connection solution for long-term operation in industrial environments.
Supports Legacy DCS Maintenance
For plants operating ABB Bailey INFI 90 systems, the NKAS01-15 provides a practical replacement component that helps extend the service life of existing automation infrastructure.
Technical FAQs – ABB Bailey NKAS01-15 Analog Module TU Cable
1. What is the main function of the ABB Bailey NKAS01-15 cable?
The NKAS01-15 provides the connection between the ASI analog interface and the NTAI06 analog input termination unit.
2. Which ABB Bailey systems use the NKAS01-15?
The cable is designed for ABB Bailey INFI 90 and Symphony-related analog input control architectures.
3. What type of signals are handled through the NKAS01-15?
The cable is used for analog input signal connections between field termination components and analog processing modules.
4. Is the NKAS01-15 a standard communication cable?
No. It is a dedicated prefabricated cable designed specifically for ABB Bailey analog module connections.
5. What devices are connected by the NKAS01-15?
The cable connects ASI devices to NTAI06 analog input termination units.
6. How should the NKAS01-15 be installed in a control cabinet?
The cable should be installed according to ABB Bailey system wiring diagrams, ensuring correct connector placement and secure routing.
7. What troubleshooting steps should be followed if analog signals are incorrect?
Engineers should inspect connector seating, cable continuity, termination connections, module configuration, and field signal sources.
8. Can the NKAS01-15 be used for digital input applications?
No. It is specifically designed for analog module connection applications.
9. What industries commonly use the NKAS01-15?
It is commonly found in power generation, chemical processing, oil and gas, and other process automation industries.
10. Is the NKAS01-15 suitable for ABB Bailey system upgrades?
Yes. It can support maintenance and upgrade projects where existing ABB Bailey analog systems remain in operation.
