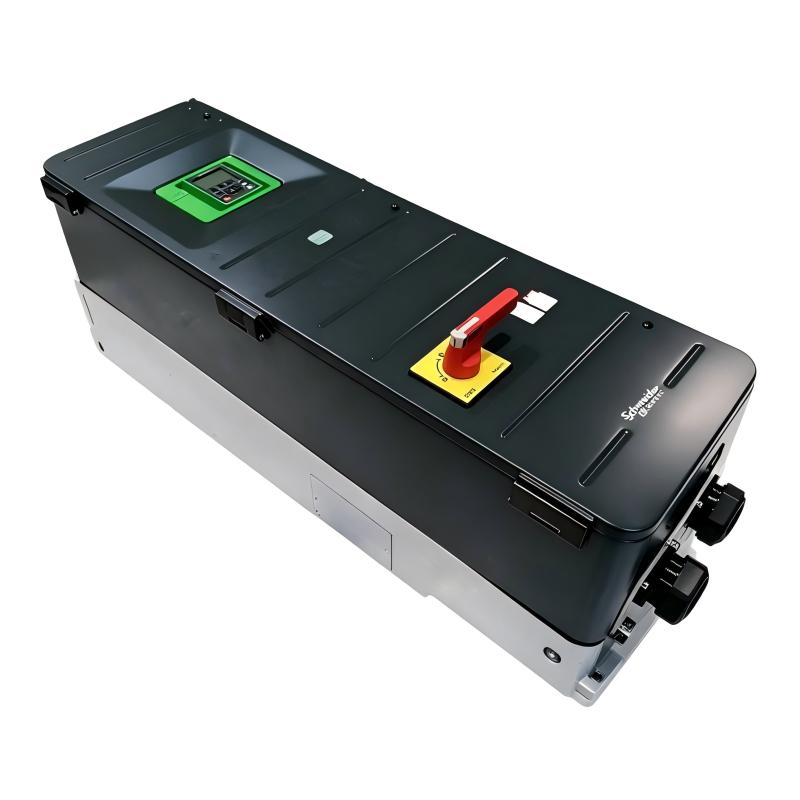

Schneider ATV650D90N4E Variable-Speed Drive

Advanced Motor Control Applications and Industrial Process Drive Solutions

The Schneider ATV650D90N4E Variable-Speed Drive is a high-performance Altivar Process ATV650 AC drive designed for demanding industrial motor control applications requiring efficient speed regulation, process monitoring, and reliable operation. This drive is rated for 90 kW motor applications, supports 380 to 480 V three-phase power supplies, and is equipped with an integrated disconnect switch and IP55 protection for industrial environments.

Developed for process industries, the ATV650D90N4E provides precise control of asynchronous and synchronous motors while helping users improve energy efficiency, optimize machine performance, and maintain stable production processes. It combines advanced motor management functions with built-in monitoring capabilities, making it suitable for applications where operational reliability and equipment protection are essential.

Typical application areas include:

• Water and wastewater pumping systems
• HVAC and ventilation equipment
• Industrial fans and blowers
• Compressors and process pumps
• Chemical and pharmaceutical production lines
• Oil and gas auxiliary equipment
• Mining and material handling systems
• Manufacturing automation equipment

The ATV650D90N4E is particularly valuable in continuous-duty applications where motor speed adjustment, energy savings, and predictive maintenance capabilities directly influence production efficiency. Its robust enclosure design and industrial communication features make it a reliable choice for modern automation environments.

Key Advantages and Industrial Performance Benefits

High-Efficiency Motor Speed Control

The ATV650D90N4E provides accurate variable-speed motor control, allowing machines to operate according to actual process requirements. This reduces unnecessary energy consumption while improving overall system performance.

Designed for Heavy Industrial Applications

With a 90 kW power rating and strong overload capability, the drive is suitable for large motors used in pumps, fans, compressors, and other industrial equipment.

Integrated Process Monitoring Functions

The Altivar Process platform includes advanced monitoring features that help operators analyze equipment performance, detect abnormal operating conditions, and improve maintenance planning.

Reliable IP55 Protection Design

The IP55 enclosure provides enhanced protection against dust and water ingress, allowing installation in industrial locations where environmental conditions may be challenging.

Flexible Communication Capability

The ATV650D90N4E supports industrial communication networks, including Modbus TCP and Modbus serial communication, allowing easy integration with PLC, DCS, and SCADA systems.

Energy Optimization for Process Equipment

The drive helps reduce operating costs by adjusting motor speed based on real process demand instead of running motors continuously at full speed.

Improved Equipment Protection

Built-in motor protection and monitoring functions help reduce mechanical stress, improve equipment lifespan, and support safer machine operation.

Technical FAQs – Schneider ATV650D90N4E Variable-Speed Drive

1. What is the main application of the Schneider ATV650D90N4E?
The ATV650D90N4E is designed for controlling three-phase asynchronous, synchronous, and reluctance motors in industrial process applications.

2. What motor power rating does the ATV650D90N4E support?
The drive supports motors up to 90 kW in normal-duty applications and is designed for industrial motor speed control requirements.

3. What input voltage range does the ATV650D90N4E require?
The drive operates with a three-phase power supply range of 380 to 480 VAC.

4. Which communication protocols are available on the ATV650D90N4E?
The drive supports industrial communication interfaces including Modbus TCP and Modbus serial communication.

5. Can the ATV650D90N4E be integrated with PLC systems?
Yes. It can be connected with PLC and automation systems for speed commands, monitoring, diagnostics, and parameter management.

6. How can an overcurrent fault on the ATV650D90N4E be diagnosed?
Engineers should check motor load conditions, acceleration settings, motor parameters, cable connections, and possible mechanical overload conditions.

7. Does the ATV650D90N4E support automatic motor tuning?
Yes. Motor identification functions can be used to improve control accuracy and optimize drive performance.

8. What causes an overvoltage fault during operation?
Common causes include excessive motor regeneration, short deceleration times, unstable power supply conditions, or incorrect braking settings.

9. Can the ATV650D90N4E operate in pump and fan applications?
Yes. It is specifically optimized for process applications such as pumps, fans, and fluid management equipment.

10. What maintenance checks are recommended for this variable-speed drive?
Regular inspections should include cooling airflow, electrical connections, parameter backup, fault history review, and environmental condition checks.
