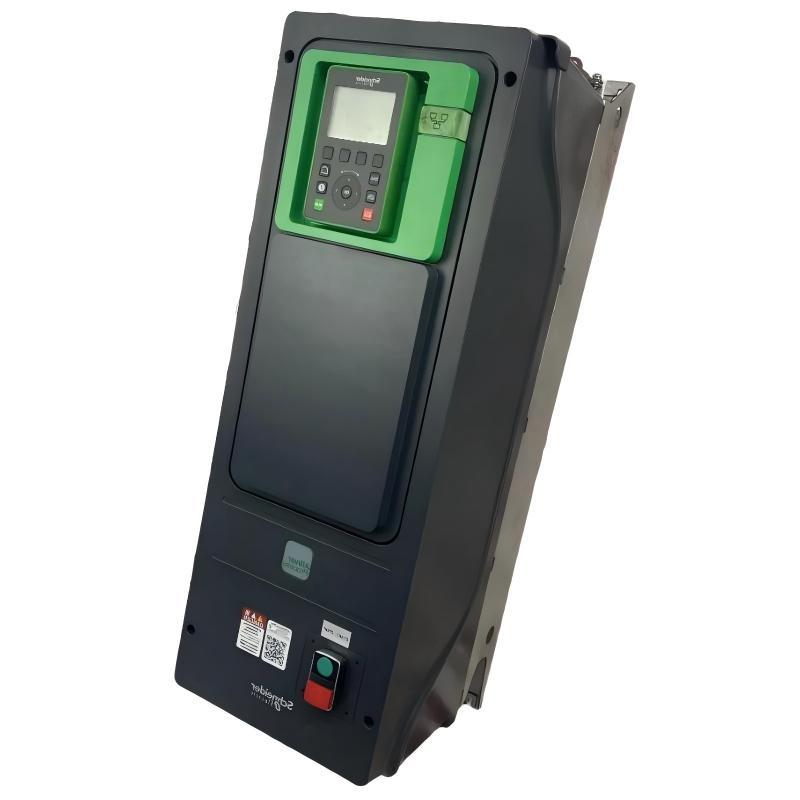

Schneider ATV650U07N4E Variable-Speed Drive

Industrial Motor Control Applications and Compact Process Automation Drive Solutions

The Schneider ATV650U07N4E Variable-Speed Drive is a compact Altivar Process ATV650 AC drive developed for industrial motor control applications that require reliable speed regulation, energy optimization, and simplified system integration. Designed for 0.75 kW (1 HP) three-phase motor applications, the drive operates with 380 to 480 VAC power supply and includes an integrated disconnect switch with an IP55 enclosure design for industrial environments.

As part of the Altivar Process ATV600 family, the ATV650U07N4E combines variable-frequency drive technology with advanced process monitoring functions. It provides accurate motor control for pumps, fans, small process machines, and auxiliary equipment while helping operators improve energy efficiency and equipment availability.

Typical application fields include:

• Industrial water and wastewater systems
• HVAC ventilation and air handling equipment
• Small process pumps
• Conveyor and handling machinery
• Packaging and OEM equipment
• Manufacturing auxiliary systems
• Chemical process support equipment
• Factory automation applications

The ATV650U07N4E is especially suitable for installations requiring a compact drive with enhanced protection, integrated disconnect functionality, and convenient maintenance access. Its combination of robust design and intelligent monitoring makes it a practical choice for industrial facilities upgrading existing motor control systems.

Performance Advantages and Industrial Drive Benefits

Integrated Disconnect Switch Design

The ATV650U07N4E includes an integrated Vario disconnect switch, allowing easier isolation during maintenance operations. This design reduces additional cabinet components and simplifies installation planning.

Efficient Motor Speed Regulation

By adjusting motor frequency and output speed according to process demand, the drive helps reduce unnecessary energy consumption while maintaining stable machine performance.

Optimized for Process Applications

The Altivar Process platform provides dedicated functions such as embedded power measurement, process monitoring, asset protection, and operational diagnostics to support modern industrial requirements.

Compact Industrial Installation

With a compact frame design, the ATV650U07N4E is suitable for applications where installation space is limited but reliable variable-speed control is required.

IP55 Environmental Protection

The IP55 enclosure helps protect internal components from dust and water ingress, allowing installation in industrial environments outside traditional electrical cabinets.

Flexible Automation Integration

The drive can be integrated with PLC, SCADA, and DCS systems through available industrial communication solutions, enabling centralized monitoring and control.

Improved Maintenance Efficiency

Built-in diagnostics and monitoring functions help maintenance teams quickly identify operating conditions, review faults, and reduce troubleshooting time.

Technical FAQs – Schneider ATV650U07N4E Variable-Speed Drive

1. What is the primary function of the Schneider ATV650U07N4E?
The ATV650U07N4E controls motor speed and torque by adjusting output frequency and voltage, providing efficient variable-speed operation.

2. What motor power rating does the ATV650U07N4E support?
The drive is designed for 0.75 kW (1 HP) motor applications.

3. What type of motors can be controlled by the ATV650U07N4E?
It supports asynchronous motors and synchronous motors used in industrial automation applications.

4. What causes an overcurrent fault on the ATV650U07N4E?
Possible causes include excessive mechanical load, incorrect motor parameters, short circuits, acceleration settings, or motor cable issues.

5. How can communication failures be diagnosed on this drive?
Engineers should check communication parameters, network wiring, address settings, controller configuration, and drive communication status.

6. Does the ATV650U07N4E support automatic motor tuning?
Yes. Motor identification functions can be used to improve control accuracy and optimize motor performance.

7. Why does the drive trip during motor acceleration?
Common reasons include excessive acceleration time settings, oversized loads, incorrect motor data, or insufficient drive capacity.

8. Can the ATV650U07N4E be used for pump and fan applications?
Yes. It is suitable for variable-speed pump and fan control where energy optimization is required.

9. What maintenance procedures are recommended for this drive?
Regular maintenance includes checking cooling airflow, electrical connections, fault history, parameter backups, and environmental conditions.

10. How can an undervoltage fault be investigated?
Engineers should inspect incoming power quality, supply voltage stability, wiring connections, and upstream protection devices.
