Schneider ATV650U22N4E Variable-Speed Drive

Industrial Motor Control Applications and Advanced Process Drive Solutions

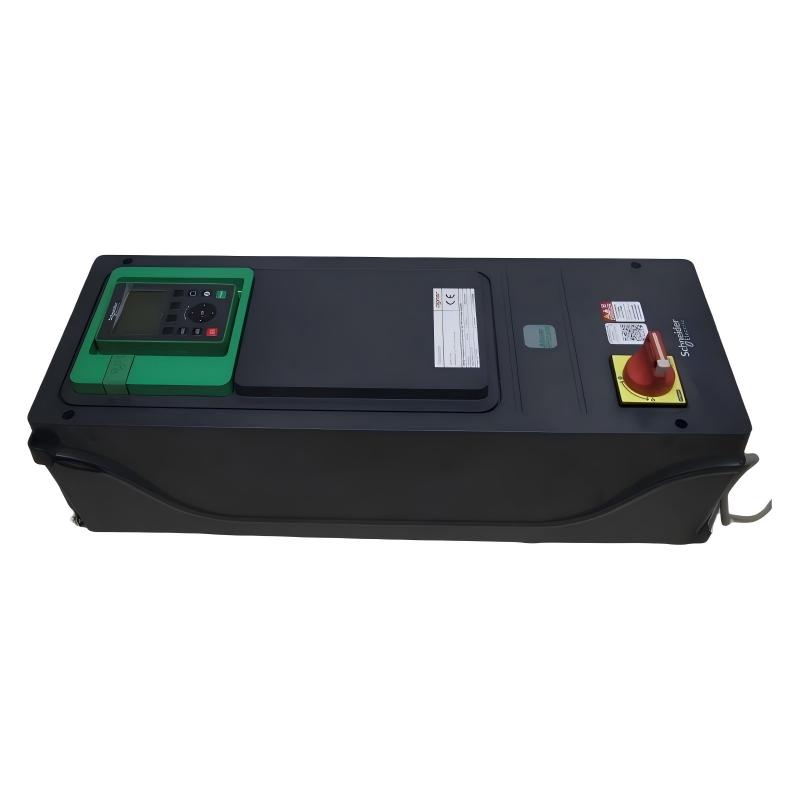

The Schneider ATV650U22N4E Variable-Speed Drive is a high-performance Altivar Process ATV650 AC drive designed for industrial applications requiring reliable motor regulation, energy optimization, and intelligent process management. With a 2.2 kW (3 HP) power rating, this drive provides accurate speed and torque control for three-phase motors used in pumps, fans, conveyors, and process machinery.

Designed for demanding industrial environments, the ATV650U22N4E operates with a 380 to 480 VAC three-phase power supply and features an IP55 enclosure with integrated disconnect switch, providing additional convenience for installation, isolation, and maintenance operations.

As part of Schneider Electric’s Altivar Process family, the ATV650U22N4E combines traditional variable-frequency drive technology with embedded monitoring functions, energy dashboards, and process control capabilities. It helps industrial users improve equipment efficiency, reduce downtime, and achieve better lifecycle performance.

Typical application areas include:

• Industrial water and wastewater pumping systems
• HVAC and ventilation equipment
• Process fluid control systems
• Conveyor and material handling machinery
• Food and beverage production equipment
• Packaging automation systems
• Factory utility applications
• OEM machine solutions

The ATV650U22N4E is especially suitable for applications where compact installation, reliable motor control, and simplified maintenance are essential. Its integrated design allows engineers to build more efficient automation systems while maintaining high operational reliability.

Drive Performance Advantages and Industrial Automation Benefits

Integrated Disconnect Function for Easier Maintenance

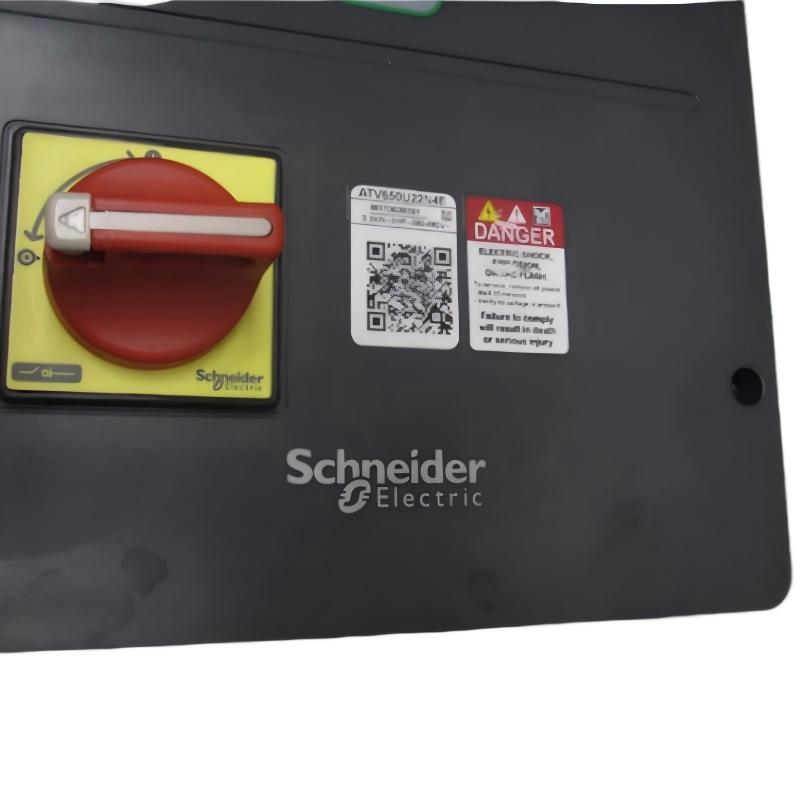

The ATV650U22N4E includes an integrated disconnect switch, allowing technicians to isolate the drive during maintenance procedures without requiring additional external switching equipment. This improves installation efficiency and supports safer service operations.

Efficient 2.2 kW Motor Speed Control

The drive provides precise frequency regulation and torque management, allowing motors to operate according to actual process requirements. This improves energy efficiency while reducing unnecessary mechanical stress.

Advanced Process Monitoring Capability

The Altivar Process platform includes embedded monitoring features that help operators analyze operating conditions, track equipment performance, and optimize maintenance schedules.

Reliable Industrial Protection Design

With an IP55 enclosure rating, the ATV650U22N4E is suitable for industrial environments where protection against dust and water exposure is required.

Flexible Automation System Integration

The drive supports integration with PLC, SCADA, and DCS architectures, allowing engineers to monitor drive status, adjust parameters, and control motor operation from centralized systems.

Energy Optimization for Process Equipment

Through intelligent speed adjustment, the drive helps reduce energy consumption in variable-load applications such as pumps and fans.

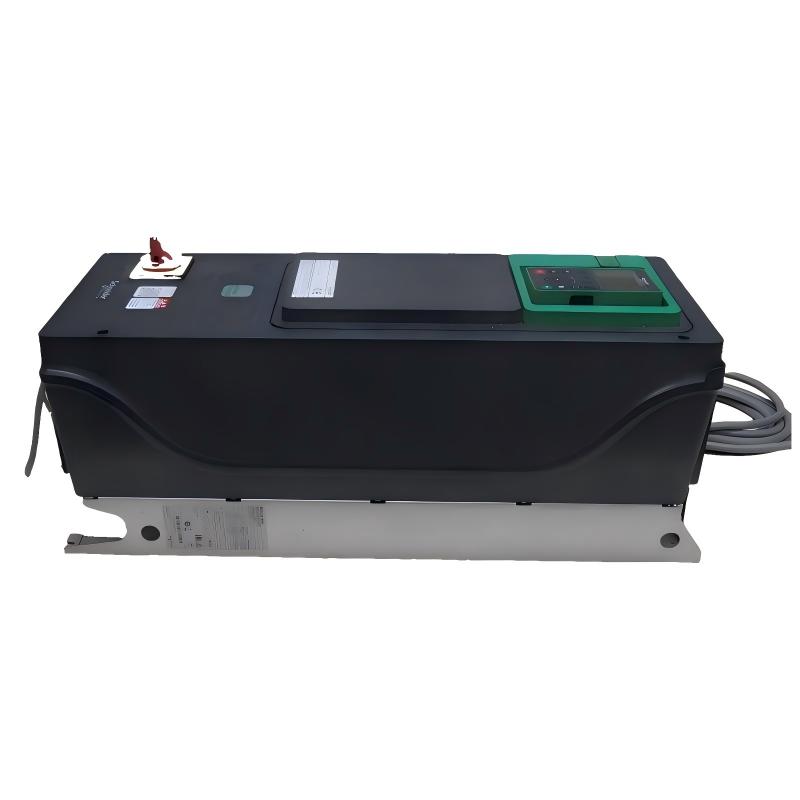

Compact Wall-Mount Structure

The optimized enclosure design provides flexible installation options for industrial facilities where control panel space and machine layout efficiency are important considerations.

Improved Fault Analysis Capability

Built-in diagnostic functions allow maintenance teams to review operating conditions, identify abnormal behavior, and reduce troubleshooting time.

Technical FAQs – Schneider ATV650U22N4E Variable-Speed Drive

1. What is the main purpose of the Schneider ATV650U22N4E?
The ATV650U22N4E is designed to control motor speed, torque, and operating efficiency by adjusting output frequency and voltage.

2. What motor power rating does the ATV650U22N4E support?
The drive supports motor applications up to 2.2 kW (3 HP) with three-phase industrial power systems.

3. What voltage supply is required for the ATV650U22N4E?
The drive operates with a 380 to 480 VAC three-phase power supply.

4. Which motor technologies are compatible with this drive?
The ATV650U22N4E supports asynchronous and synchronous motors for industrial automation applications.

5. How can an overcurrent fault be diagnosed on the ATV650U22N4E?
Check motor load conditions, acceleration parameters, motor wiring, mechanical resistance, and drive configuration settings.

6. Why does the drive trip during motor startup?
Possible causes include incorrect motor parameters, excessive starting torque requirements, short acceleration settings, or motor connection problems.

7. How can communication problems between PLC and drive be resolved?
Verify communication parameters, network wiring, addressing configuration, controller settings, and drive communication status.

8. Does the ATV650U22N4E support automatic motor tuning?
Yes. Motor identification functions can optimize control accuracy and improve motor performance.

9. What causes an undervoltage alarm on the drive?
Common causes include unstable incoming power, loose electrical connections, incorrect supply voltage, or upstream electrical issues.

10. What maintenance procedures are recommended for the ATV650U22N4E?
Recommended maintenance includes checking cooling airflow, inspecting terminals, reviewing fault history, backing up parameters, and checking installation conditions.
