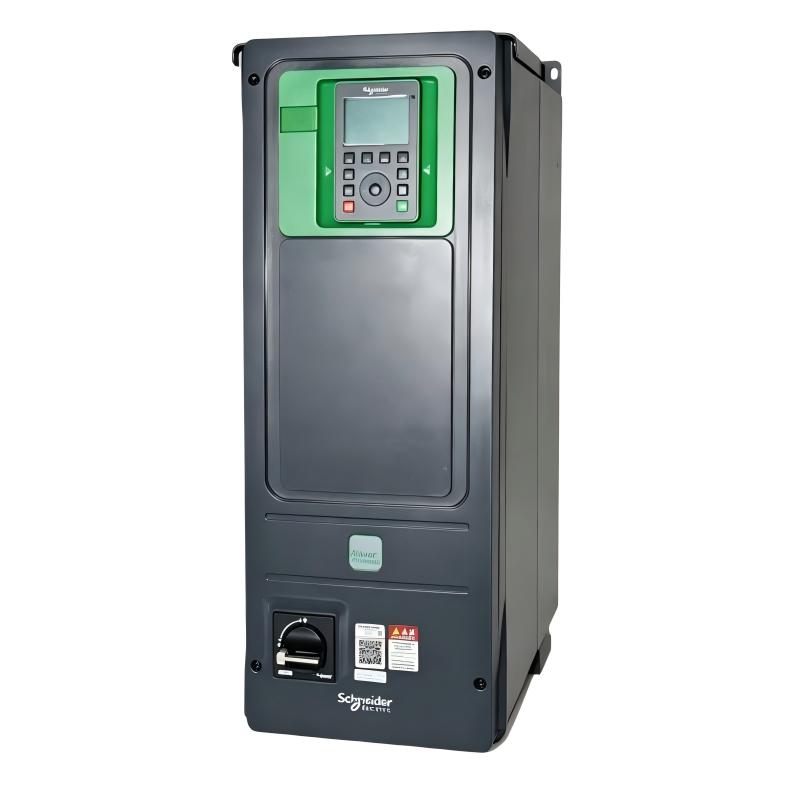

Schneider ATV650U75N4 Variable-Speed Drive

Industrial Motor Control Applications and Advanced Process Automation Solutions

The Schneider ATV650U75N4 Variable-Speed Drive is a powerful Altivar Process ATV650 AC drive designed for industrial applications that require efficient motor speed regulation, reliable process control, and optimized energy management. With a 7.5 kW (10 HP) motor rating, this drive delivers stable performance for three-phase motors used in demanding industrial environments such as water treatment, manufacturing, HVAC, and process industries.

Designed for 380 to 480 VAC three-phase power systems, the ATV650U75N4 combines robust industrial protection with advanced automation functions. Its IP55 enclosure enables reliable operation in harsh industrial locations, while the wall-mounted structure provides flexible installation options for machine builders and system integrators.

The ATV650U75N4 belongs to Schneider Electric’s Altivar Process family, integrating intelligent monitoring, energy management, and equipment protection features. These capabilities help industrial users improve production efficiency, reduce energy consumption, and maintain stable operation throughout the equipment lifecycle.

Typical application areas include:

• Industrial pump and water management systems
• HVAC and ventilation equipment
• Process fluid circulation systems
• Conveyor and material handling applications
• Manufacturing production lines
• Cooling and utility systems
• Food and beverage processing machinery
• OEM automation equipment

The ATV650U75N4 provides engineers with a reliable drive solution that combines high-performance motor control, simplified commissioning, and long-term operational stability.

Drive Performance Advantages and Industrial Automation Benefits

High-Efficiency 7.5 kW Motor Control

The ATV650U75N4 provides precise speed and torque adjustment for motors up to 7.5 kW. By controlling motor operation according to actual process demand, it helps improve energy efficiency and reduce unnecessary mechanical stress.

Advanced Altivar Process Platform

The drive includes intelligent process functions such as embedded power measurement, energy monitoring, and asset protection features. These functions allow operators to better understand equipment performance and optimize maintenance strategies.

Reliable Industrial Protection Design

With an IP55-rated enclosure, the ATV650U75N4 is suitable for industrial environments where protection against dust and water exposure is required. This makes it suitable for installation near machines without additional protective cabinets.

Flexible Motor Compatibility

The drive supports both asynchronous and synchronous motors, providing flexibility for different industrial automation designs and retrofit projects.

Energy Optimization Capability

Variable-speed operation allows motors to adjust output according to system requirements. This is particularly valuable for pumps, fans, and fluid handling applications where load demand changes continuously.

Industrial Network Integration

The ATV650U75N4 supports integration into automation architectures through industrial communication interfaces, allowing connection with PLC, SCADA, and supervisory control systems.

Improved Diagnostic Functions

Built-in monitoring and fault analysis functions help maintenance engineers quickly identify abnormal operating conditions and improve troubleshooting efficiency.

Compact Wall-Mount Design

The optimized enclosure structure allows efficient installation while maintaining industrial-grade reliability. The drive dimensions are 264 × 678 × 299 mm, making it suitable for applications requiring a compact but powerful motor control solution.

Technical FAQs – Schneider ATV650U75N4 Variable-Speed Drive

1. What is the main purpose of the Schneider ATV650U75N4?
The ATV650U75N4 is designed to regulate AC motor speed and torque by controlling output frequency and voltage for improved industrial process performance.

2. What motor power rating does the ATV650U75N4 support?
The drive supports motor applications up to 7.5 kW (10 HP) under standard operating conditions.

3. What voltage supply does the ATV650U75N4 require?
The drive operates with a three-phase 380 to 480 VAC power supply.

4. Which motor types can be controlled by this drive?
The ATV650U75N4 supports both asynchronous and synchronous motors used in industrial applications.

5. What causes an overcurrent fault on the ATV650U75N4?
Possible causes include excessive motor load, incorrect acceleration settings, motor cable problems, short circuits, or incorrect motor parameter configuration.

6. How can unstable motor speed problems be corrected?
Check motor tuning parameters, speed reference signals, feedback settings, and mechanical load conditions.

7. Why does the drive trip during acceleration?
Acceleration trips may result from insufficient ramp time, excessive starting torque requirements, incorrect motor data, or mechanical resistance.

8. How can communication failures with PLC systems be diagnosed?
Verify communication wiring, protocol settings, device addressing, network parameters, and controller configuration.

9. What causes an overheating alarm during operation?
Common causes include blocked ventilation, high ambient temperature, excessive loading, or cooling system problems.

10. What maintenance procedures are recommended for the ATV650U75N4?
Regular maintenance includes checking cooling airflow, inspecting terminals, reviewing fault records, and verifying parameter backups.
