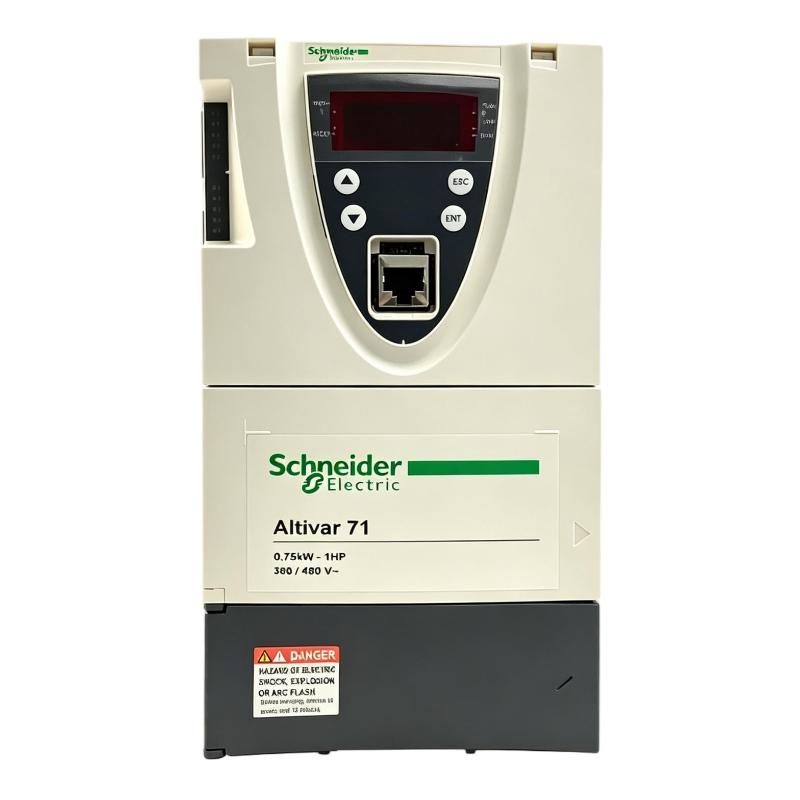

Schneider ATV71H075N4Z Variable-Speed Drive

Industrial Motor Control Applications and High-Precision Automation Solutions

The Schneider ATV71H075N4Z Variable-Speed Drive is a compact and powerful Altivar 71 series AC drive designed for demanding industrial motor control applications where accurate speed regulation, flexible configuration, and reliable operation are required. With a 0.75 kW (1 HP) motor rating, this drive provides efficient control of three-phase asynchronous motors used in automation systems, machinery, and process equipment.

Engineered for industrial environments, the ATV71H075N4Z supports a 380 to 480 VAC three-phase power supply and integrates advanced motor control algorithms to achieve stable torque performance across different operating conditions. The drive includes communication capabilities such as Modbus and CANopen, allowing smooth integration into PLC-based automation architectures.

The Altivar 71 platform is recognized for its flexibility in complex motion and machine applications. The ATV71H075N4Z provides multiple configuration options, including support for communication cards and application-specific expansion modules, making it suitable for customized automation projects.

Typical applications include:

• Conveyor systems
• Packaging machinery
• Material handling equipment
• Industrial fans and pumps
• Machine tools
• Textile and printing equipment
• OEM automation systems
• General-purpose motor speed control applications

With its compact structure and advanced control functions, the ATV71H075N4Z offers engineers an effective solution for improving machine performance, reducing energy consumption, and enhancing overall system reliability.

Drive Features and Industrial Automation Advantages

Compact Design for Flexible Installation

The ATV71H075N4Z features a space-efficient structure that allows installation in control panels with limited space. Its compact dimensions make it suitable for OEM machinery and distributed automation systems.

Advanced Motor Control Performance

The drive provides precise frequency regulation and torque management, helping motors achieve smooth acceleration, stable operation, and improved efficiency in variable-speed applications.

Reliable Altivar 71 Technology

As part of Schneider Electric’s Altivar 71 family, the ATV71H075N4Z provides advanced configuration capabilities for industrial applications requiring accurate motor control and flexible system integration.

Multiple Communication Options

The integrated communication functions support Modbus and CANopen networks, enabling direct connection with PLC systems, automation controllers, and industrial monitoring platforms.

Flexible Expansion Capability

The drive supports optional communication and application cards, allowing users to expand system functionality according to specific machine requirements.

Energy-Efficient Motor Operation

By adjusting motor speed according to process requirements, the ATV71H075N4Z helps reduce unnecessary energy consumption while improving mechanical system control.

Improved Machine Performance

Advanced control functions help minimize speed fluctuations, improve acceleration response, and maintain stable operation under changing load conditions.

Easy Maintenance and Diagnostics

The drive provides monitoring parameters and fault information that help technicians quickly identify operating issues and reduce troubleshooting time.

Technical FAQs – Schneider ATV71H075N4Z Variable-Speed Drive

1. What is the main function of the Schneider ATV71H075N4Z?
The ATV71H075N4Z controls the speed and torque of AC motors by adjusting output frequency and voltage according to application requirements.

2. What motor power rating does the ATV71H075N4Z support?
The drive is designed for 0.75 kW (1 HP) motor applications in industrial automation systems.

3. What type of motors can be controlled by this drive?
The ATV71H075N4Z is designed for controlling three-phase asynchronous motors used in industrial equipment.

4. Why does the drive generate an overcurrent fault during startup?
Possible causes include excessive mechanical load, incorrect motor parameters, insufficient acceleration time, or motor cable problems.

5. How can communication faults with a PLC be diagnosed?
Check communication wiring, network addressing, baud rate settings, protocol configuration, and PLC communication status.

6. What causes unstable motor speed operation?
Incorrect motor tuning, unstable reference signals, improper parameter settings, or sudden load changes may cause speed fluctuations.

7. How can a motor fail-to-start condition be troubleshooting?
Verify incoming power, drive enable signals, motor wiring, control commands, and programmed operating parameters.

8. Does the ATV71H075N4Z support industrial communication networks?
Yes. The drive supports Modbus and CANopen communication for industrial automation integration.

9. What causes the drive to overheat during operation?
Common causes include blocked ventilation, excessive load, high ambient temperature, or insufficient cooling airflow.

10. What maintenance practices are recommended for this drive?
Regular inspections should include checking electrical connections, cleaning ventilation areas, reviewing fault history, and verifying parameter settings.
