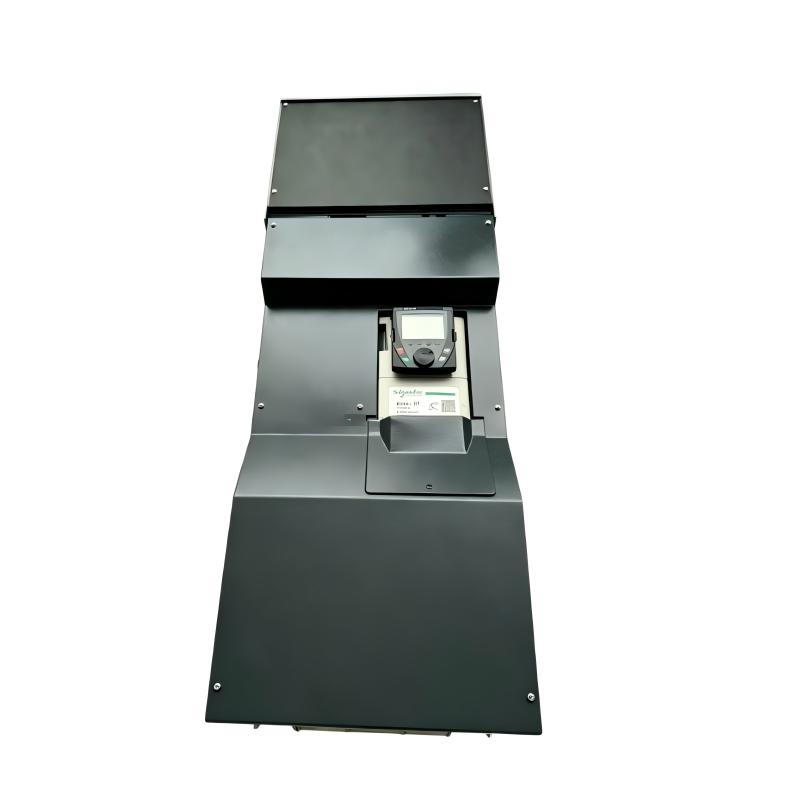

Schneider ATV71HC20N4 Variable-Speed Drive

Heavy-Duty Industrial Motor Control Applications and High-Power Automation Solutions

The Schneider ATV71HC20N4 Variable-Speed Drive is a high-performance Altivar 71 series AC drive engineered for demanding industrial applications requiring powerful motor control, precise speed regulation, and reliable operation under heavy loads. Designed for 200 kW (300 HP) motor applications, this drive provides advanced control capabilities for large industrial machines, process equipment, and complex automation systems.

Built for 380 to 480 VAC three-phase power systems, the ATV71HC20N4 integrates advanced motor control algorithms, including vector control technology, to deliver stable torque performance and smooth acceleration across a wide operating range. It supports both asynchronous and synchronous motor applications, making it suitable for high-power industrial equipment requiring flexible configuration.

The ATV71HC20N4 belongs to Schneider Electric’s proven Altivar 71 platform, offering advanced communication options, programmable functions, and application-specific expansion capabilities. Its design is optimized for industries where production continuity, precise motor management, and efficient energy usage are critical.

Typical applications include:

• Large conveyor and material handling systems
• Mining and mineral processing equipment
• Heavy-duty pumps and compressors
• Industrial fans and ventilation systems
• Cranes and lifting equipment
• Manufacturing production machinery
• Water treatment infrastructure
• High-power OEM automation systems

With its robust construction and advanced control architecture, the ATV71HC20N4 provides a dependable solution for engineers upgrading existing motor systems or developing new high-capacity industrial automation projects.

High-Power Drive Performance and Industrial Automation Advantages

High-Capacity 200 kW Motor Control

The ATV71HC20N4 delivers powerful motor control capability for large industrial applications. Its high-performance inverter technology enables accurate speed adjustment, torque management, and smooth motor operation even under demanding load conditions.

Advanced Altivar 71 Control Technology

The drive incorporates Schneider Electric’s Altivar 71 control platform, providing flexible programming functions, application customization, and advanced motor management features for complex automation requirements.

Reliable Heavy-Duty Industrial Operation

Designed for large-scale industrial systems, the ATV71HC20N4 provides stable performance in applications requiring continuous operation, high torque output, and reliable process control.

Support for Multiple Motor Technologies

The drive supports asynchronous and synchronous motors, allowing engineers to select the most suitable motor technology for different industrial processes.

Flexible Communication Integration

The ATV71HC20N4 supports industrial communication networks including Modbus and CANopen, while optional communication cards enable integration with various PLC and automation platforms.

Improved Energy Efficiency

By adjusting motor speed according to actual process requirements, the drive helps reduce unnecessary energy consumption and improves overall system efficiency.

Advanced Fault Monitoring Capability

Integrated diagnostic functions provide detailed operating information, helping maintenance teams quickly identify problems related to motor overload, communication issues, or drive protection events.

Suitable for Complex Automation Systems

The drive supports optional expansion cards, encoder interfaces, and programmable functions, making it suitable for customized industrial automation solutions.

Technical FAQs – Schneider ATV71HC20N4 Variable-Speed Drive

1. What is the main function of the Schneider ATV71HC20N4?
The ATV71HC20N4 controls large AC motors by regulating output frequency and voltage to achieve precise speed and torque management.

2. What motor power rating does the ATV71HC20N4 support?
The drive is designed for 200 kW (300 HP) motor applications in industrial environments.

3. What type of motors can be controlled by this drive?
The ATV71HC20N4 supports asynchronous and synchronous motors used in industrial machinery and process systems.

4. What causes an overcurrent fault during startup?
Common causes include excessive mechanical load, incorrect acceleration parameters, motor cable problems, short circuits, or improper motor configuration.

5. How can a motor acceleration problem be diagnosed?
Check acceleration settings, motor parameters, load conditions, current feedback values, and mechanical restrictions.

6. How should communication faults be troubleshooting?
Verify communication wiring, network addresses, baud rate settings, communication cards, and PLC configuration parameters.

7. Why does the drive trip during heavy-load operation?
Possible reasons include motor overload, insufficient drive capacity, incorrect torque settings, mechanical blockage, or excessive acceleration demand.

8. How can unstable motor speed output be corrected?
Review motor tuning parameters, encoder feedback settings, speed references, and load variations.

9. What causes DC bus overvoltage faults?
Typical causes include rapid deceleration, excessive regenerative energy, incorrect braking configuration, or unstable power conditions.

10. What maintenance procedures are recommended for ATV71HC20N4?
Regular maintenance includes checking cooling systems, inspecting power connections, reviewing fault history, cleaning ventilation areas, and verifying parameter backups.
