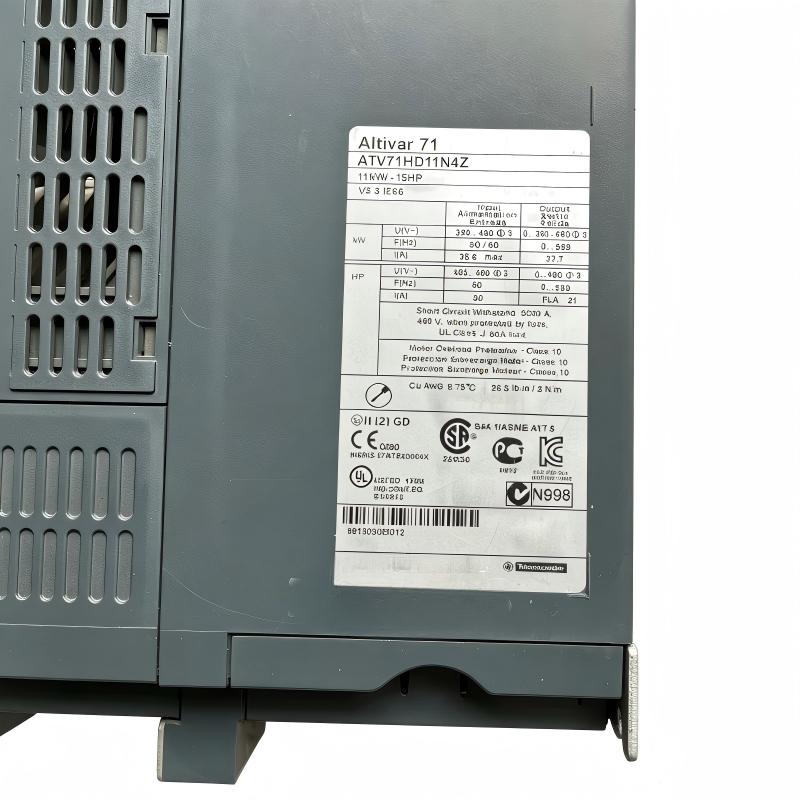

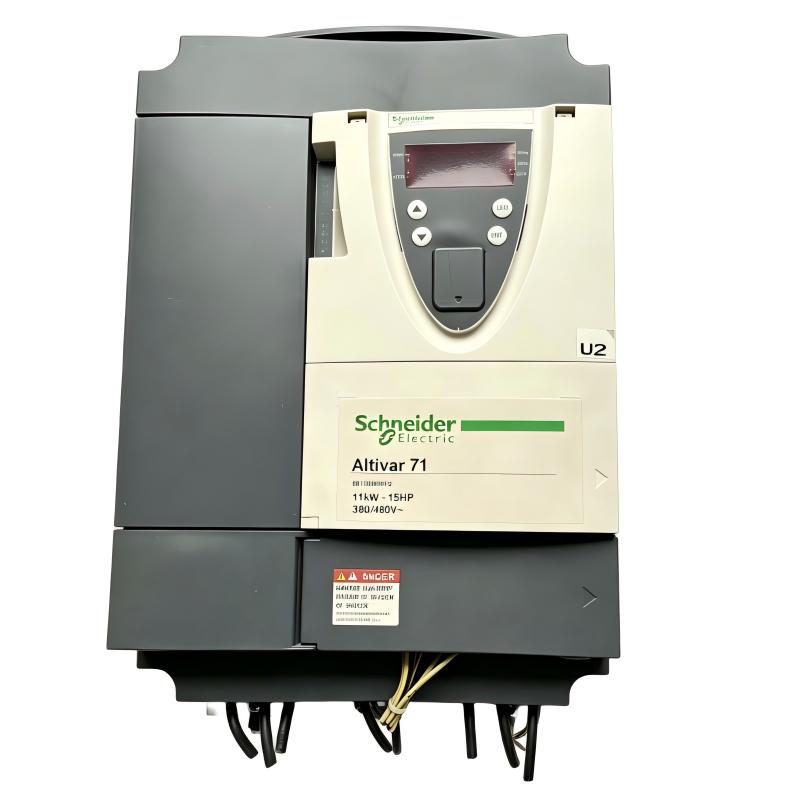

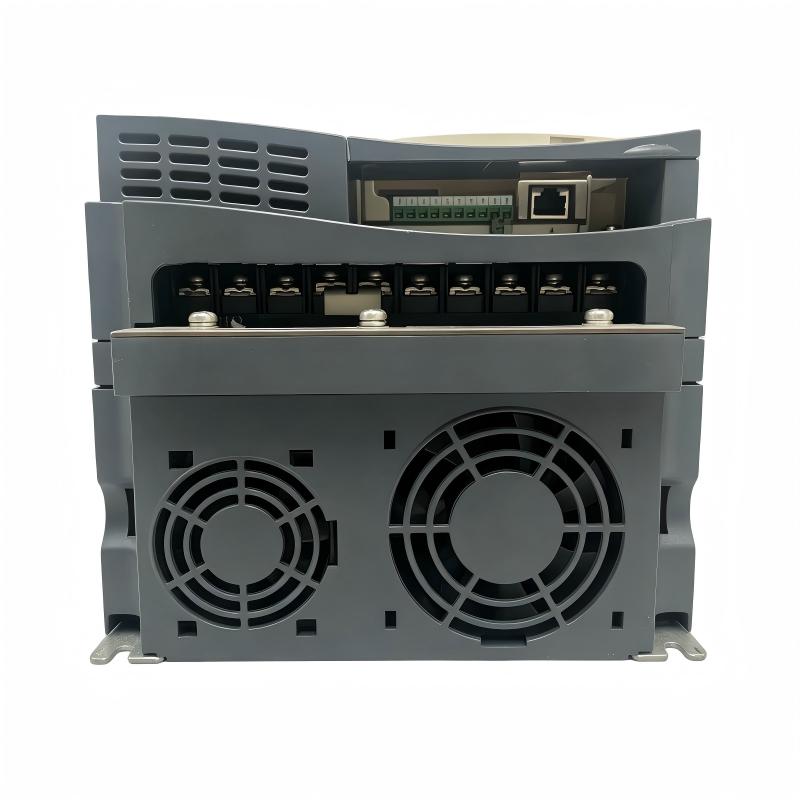

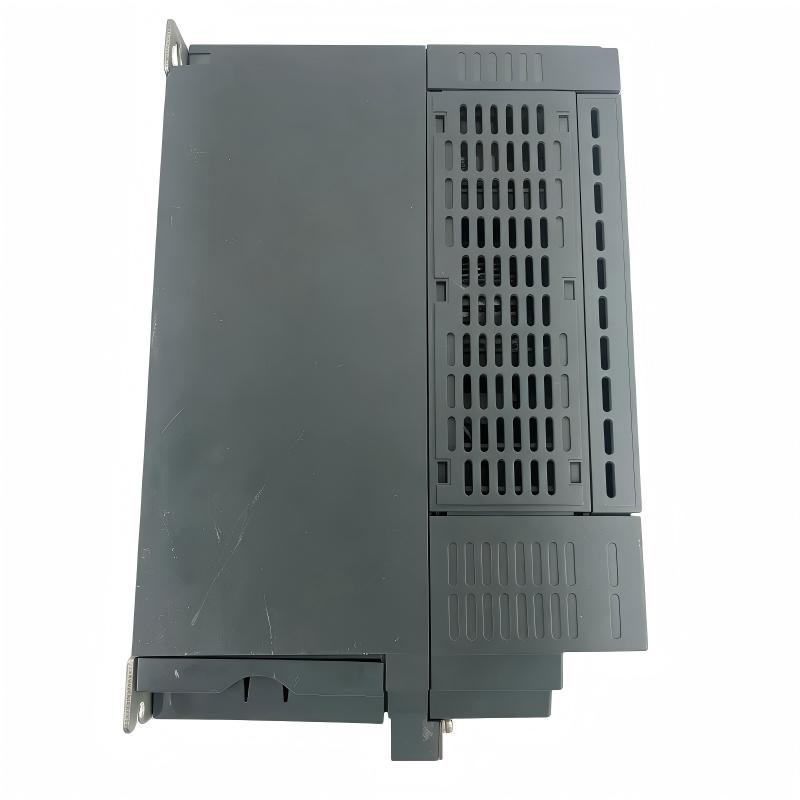

Schneider ATV71HD11N4Z Variable-Speed Drive

Industrial Motor Control Applications and Intelligent Automation System Integration

The Schneider ATV71HD11N4Z Variable-Speed Drive is a high-performance Altivar 71 AC drive designed for industrial applications requiring accurate motor control, flexible configuration, and reliable operation. With an 11 kW (15 HP) power rating, this drive provides efficient speed and torque regulation for three-phase motors used in automation machinery, production equipment, and process control systems.

Designed for 380 to 480 VAC three-phase power systems, the ATV71HD11N4Z combines advanced motor control technology with flexible communication capability. It integrates functions such as vector control, programmable application settings, and industrial network connectivity, making it suitable for machine builders and system integrators who need precise motor management.

The ATV71HD11N4Z belongs to Schneider Electric’s well-established Altivar 71 family and is optimized for applications where smooth acceleration, stable torque output, and dependable operation are important. The drive includes an EMC filter and supports CANopen and Modbus communication, allowing convenient integration with PLC and industrial automation platforms.

Typical applications include:

• Conveyor and material handling systems
• Packaging and processing machinery
• Machine tools
• Industrial fans and pumps
• Textile and printing equipment
• HVAC automation systems
• OEM machinery applications
• General industrial motor control systems

The ATV71HD11N4Z provides engineers with a reliable solution for improving motor efficiency, reducing mechanical stress, and enhancing overall automation performance.

Optimized Drive Performance and Industrial Automation Advantages

Reliable 11 kW Motor Control Capability

The ATV71HD11N4Z delivers accurate motor speed adjustment and torque management for 11 kW industrial motors. Its advanced control algorithms help maintain stable operation during acceleration, deceleration, and variable-load conditions.

Advanced Altivar 71 Control Platform

Built on the Altivar 71 architecture, this drive provides flexible programming functions and application-specific configuration options. Engineers can customize operating parameters according to different machine requirements.

High-Performance Vector Control

The drive supports vector control technology, allowing improved torque response and smoother low-speed operation. This makes it suitable for applications requiring accurate motor behavior and dynamic performance.

Integrated Communication Capability

The ATV71HD11N4Z supports CANopen and Modbus communication, enabling direct connection with PLC controllers, industrial networks, and automation monitoring systems.

EMC Filter for Improved Compatibility

The integrated EMC filter helps reduce electromagnetic interference and improves compatibility with surrounding automation equipment, sensors, and control systems.

Flexible Expansion Options

The drive supports optional communication cards, I/O expansion modules, and application-specific accessories, allowing users to adapt the system for different industrial requirements.

Energy-Saving Motor Operation

By adjusting motor speed according to actual process demand, the ATV71HD11N4Z can reduce unnecessary energy consumption and improve equipment efficiency.

Efficient Maintenance and Diagnostics

Built-in monitoring parameters and fault information allow technicians to analyze operating conditions quickly, shorten troubleshooting time, and improve system availability.

Technical FAQs – Schneider ATV71HD11N4Z Variable-Speed Drive

1. What is the primary function of the Schneider ATV71HD11N4Z?
The ATV71HD11N4Z controls AC motor speed and torque by adjusting output frequency and voltage according to application requirements.

2. What motor capacity does the ATV71HD11N4Z support?
The drive is designed for industrial motors with a rated power of 11 kW (15 HP).

3. What voltage supply is required for this drive?
The ATV71HD11N4Z operates with a three-phase 380 to 480 VAC power supply.

4. Which communication protocols are supported?
The drive supports CANopen and Modbus communication for integration with industrial automation networks.

5. Why does the drive generate an overcurrent fault during startup?
Possible causes include excessive mechanical load, incorrect motor parameters, insufficient acceleration time, motor cable problems, or incorrect wiring.

6. How can unstable motor speed operation be corrected?
Check motor tuning parameters, speed reference signals, feedback settings, and load conditions.

7. What causes the drive to trip during acceleration?
Acceleration trips may occur because of short ramp times, high starting torque requirements, incorrect motor data, or mechanical resistance.

8. How can communication failures with a PLC be diagnosed?
Verify network wiring, communication settings, node addresses, protocol configuration, and controller status.

9. What causes overheating alarms on the ATV71HD11N4Z?
Common causes include blocked ventilation, excessive load, high ambient temperature, or insufficient cooling airflow.

10. What maintenance procedures are recommended for this drive?
Regular inspections should include checking electrical terminals, cleaning cooling passages, reviewing fault history, and backing up parameters.
