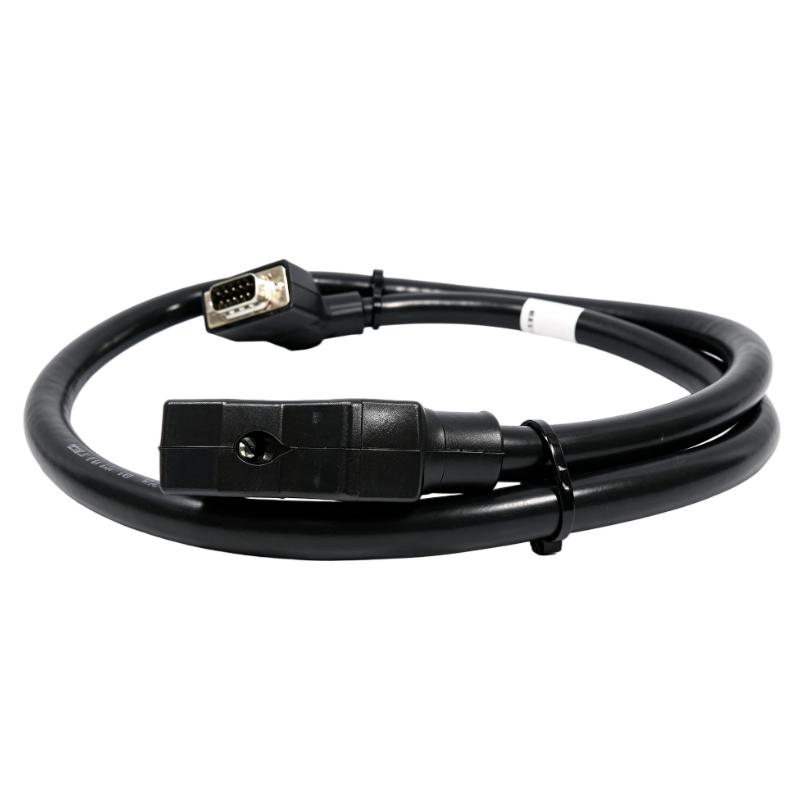

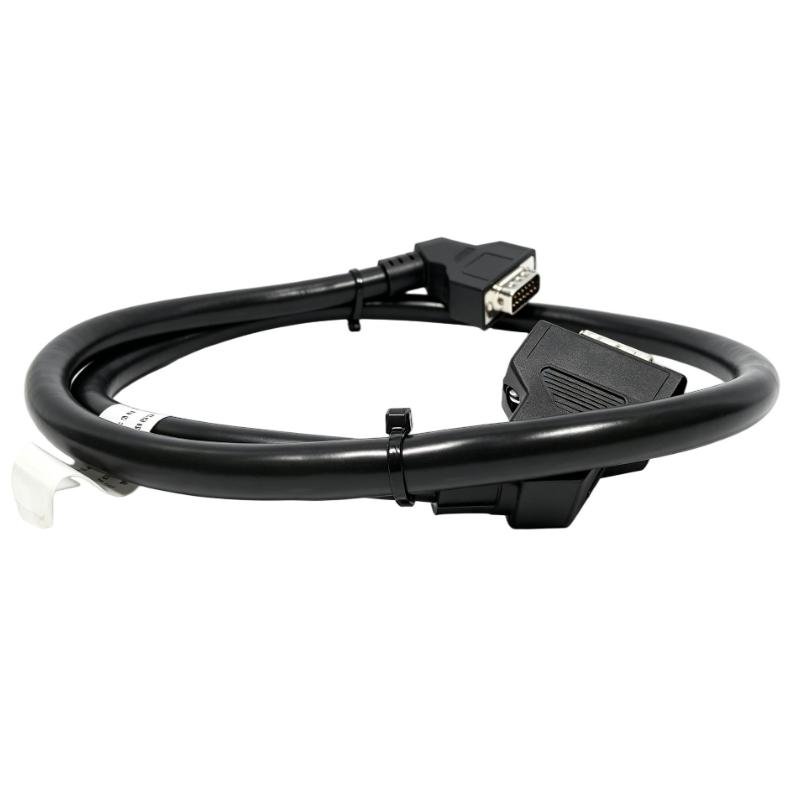

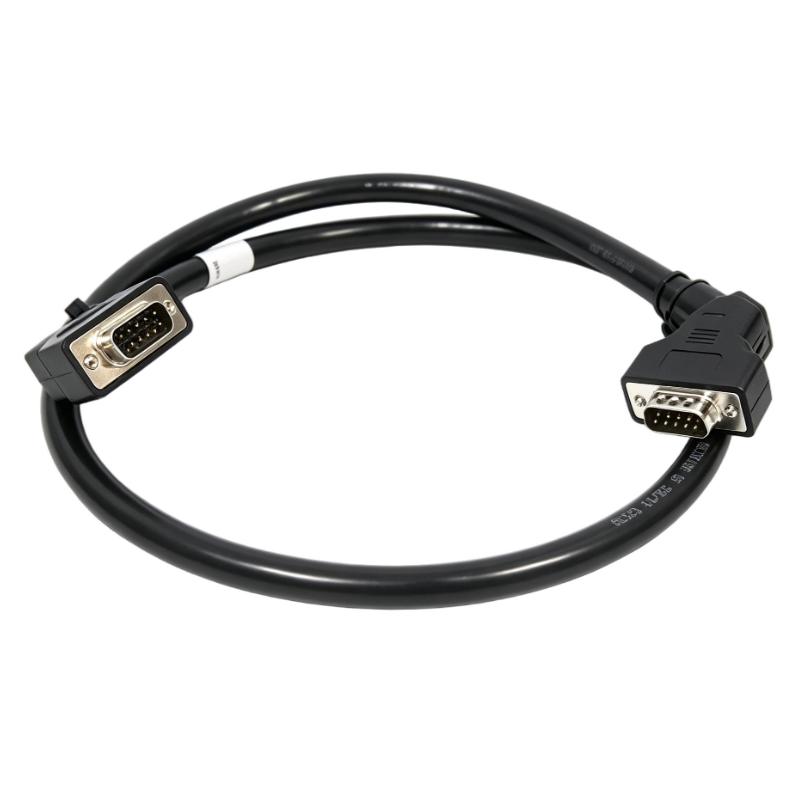

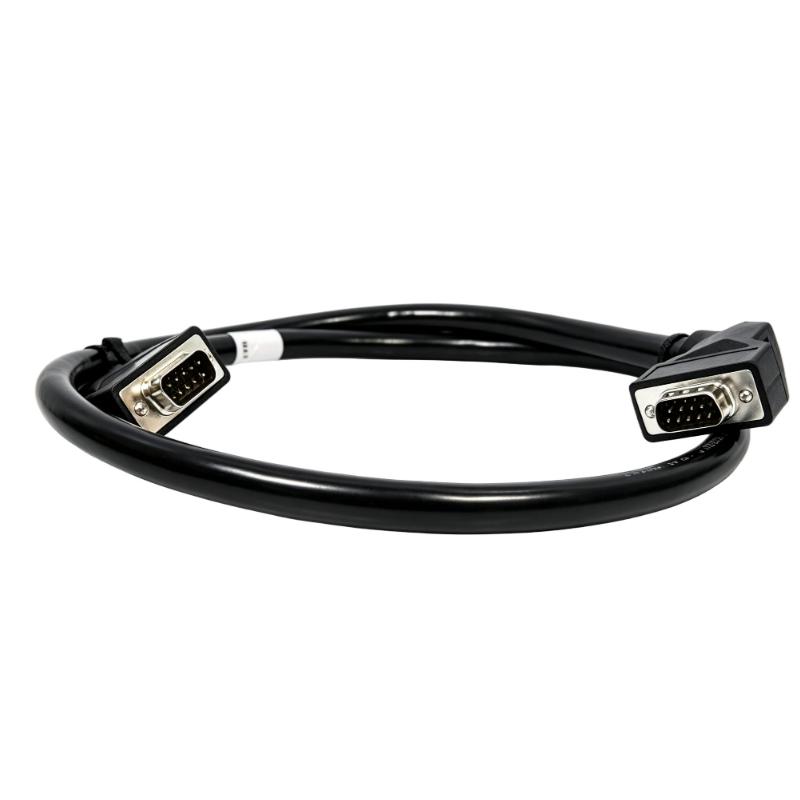

Schneider BMXXBC008K Backplane Extension Cable

Industrial Automation Applications and Modicon X80 Rack Expansion Connectivity

The Schneider BMXXBC008K Backplane Extension Cable is a dedicated Modicon M340 Backplane Extension Cable designed to provide reliable rack expansion and local bus communication between automation modules. This cable is an essential connection accessory for Schneider Electric PLC systems where flexible rack positioning and extended module installation are required.

With a 0.8-meter cable length, the BMXXBC008K allows engineers to separate PLC racks while maintaining stable communication between connected modules. It is designed for use with compatible Modicon X80/M340 architectures and supports the transmission of local bus signals required for distributed rack configurations.

The BMXXBC008K uses reliable SUB-D 9 male connectors at both ends, providing a secure connection method for industrial environments. Its plug-and-play structure simplifies installation while helping reduce cabinet design limitations in complex automation projects.

Typical application areas include:

• Modicon M340 PLC systems
• Modicon M580 automation architectures
• Extended PLC rack installations
• Industrial control cabinets
• Machine automation systems
• Factory production lines
• Process control equipment
• Distributed automation projects

The BMXXBC008K provides automation engineers with a practical solution for expanding PLC hardware layouts while maintaining communication reliability and system flexibility.

Flexible Rack Expansion Capability and Industrial Automation Advantages

Reliable Backplane Communication Extension

The BMXXBC008K is designed to transport local bus signals between connected PLC racks, enabling flexible placement of automation modules without requiring all components to be installed in a single rack position.

Optimized Modicon M340 System Integration

This extension cable is specifically developed for the Modicon M340 automation platform and works with compatible rack extension accessories such as BMXXBE1000, ensuring smooth integration into Schneider PLC architectures.

Simplified Control Cabinet Design

By allowing physical separation between racks, the BMXXBC008K helps engineers optimize cabinet layouts, improve wiring organization, and create more efficient automation system structures.

Stable Industrial Signal Transmission

The cable provides dependable local bus communication, helping maintain consistent data exchange between PLC racks and connected modules during continuous industrial operation.

Plug-and-Play Installation Design

The two SUB-D 9 male connectors provide a straightforward connection method, reducing installation complexity and improving commissioning efficiency.

Improved System Scalability

The BMXXBC008K allows automation systems to expand according to production requirements, making it suitable for both new installations and PLC modernization projects.

Durable Industrial Construction

Designed for industrial automation environments, the cable provides reliable mechanical connection performance and long-term operational stability.

Reduced Maintenance Complexity

A structured rack extension solution makes troubleshooting easier by providing clear physical connections between PLC hardware components.

Technical FAQs – Schneider BMXXBC008K Backplane Extension Cable

1. What is the main function of the Schneider BMXXBC008K?
The BMXXBC008K extends the PLC backplane connection, allowing communication between separated Modicon automation racks.

2. Which Schneider automation platforms are compatible with the BMXXBC008K?
The cable is mainly designed for Modicon M340 systems and can also be used within compatible Modicon X80/M580 architectures.

3. What type of signal does the BMXXBC008K transmit?
The cable transports local bus signals between connected PLC racks.

4. What connectors are used on the BMXXBC008K?
The cable uses two SUB-D 9 male connectors for rack-to-rack connection.

5. Why does a PLC rack extension fail after installation?
Possible causes include incorrect cable connection, incompatible rack configuration, damaged connectors, or incorrect PLC hardware settings.

6. How can communication faults caused by the extension cable be diagnosed?
Check connector seating, inspect cable condition, verify rack configuration, and review PLC diagnostic information.

7. Can the BMXXBC008K be used for long-distance PLC rack separation?
The cable is designed for a fixed 0.8-meter extension length and should be used within the supported rack configuration requirements.

8. What causes intermittent communication problems with the extension cable?
Possible causes include loose connectors, electromagnetic interference, cable damage, or improper installation.

9. Does the BMXXBC008K require additional configuration software?
The cable itself does not require programming; however, the PLC hardware configuration must match the installed rack structure.

10. What maintenance checks are recommended for this cable?
Regular inspection should include checking connectors, verifying cable integrity, and ensuring stable rack communication during system operation.
