Brand:Schneider PLC Item No.:BMXXBE1000H Product Origin:France Product Dimensions:104 x 77 x 33 mm Product Weight:0.178 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

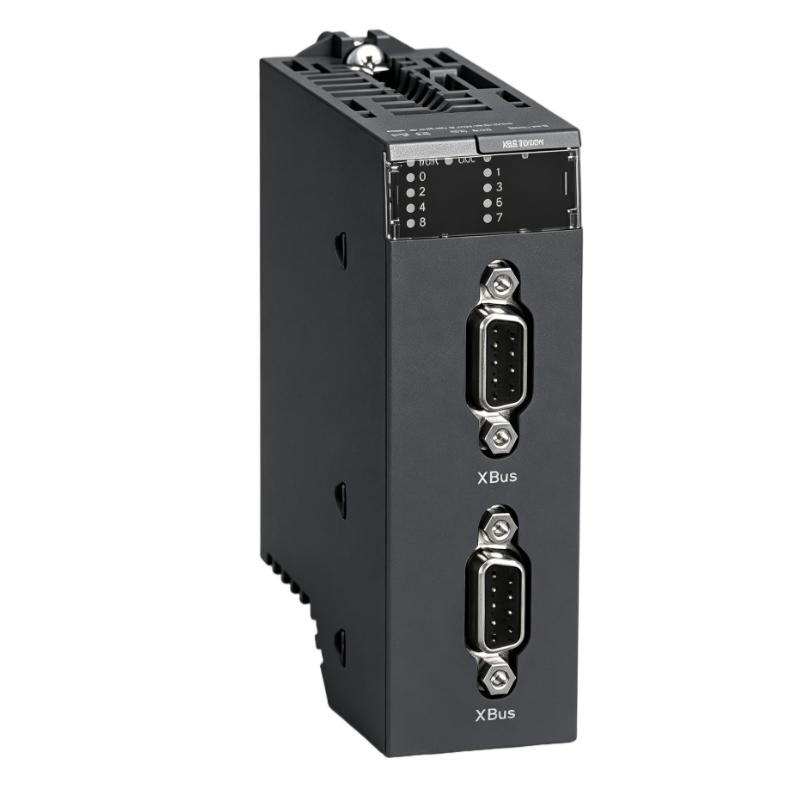

The Schneider BMXXBE1000H Backplane Expander is a specialized automation accessory designed to improve the scalability and flexibility of Modicon PLC systems. It provides engineers with an effective method for creating multi-rack architectures where traditional single-rack installations cannot meet application requirements.
Modern industrial automation projects often require distributed control cabinets, expanded I/O capacity, and flexible equipment layouts. The BMXXBE1000H addresses these requirements by enabling reliable communication between separated PLC racks while maintaining the modular structure of the Modicon platform.
Its ruggedized construction makes it suitable for industrial environments where long-term reliability is essential. Combined with compatible backplanes and X-Bus cables, the module helps create efficient and expandable automation systems for manufacturing, infrastructure, and process industries.
For system integrators and machine builders, the BMXXBE1000H offers a dependable solution for improving PLC architecture flexibility and supporting future system expansion.
Technical Specifications
Specification
Description
Manufacturer
Schneider Electric
Model Number
BMXXBE1000H
Product Type
Backplane Expander
Product Family
Modicon M340 / Modicon X80
Module Function
Rack Expansion Module
Application
Multi-Rack PLC Configuration
Communication Technology
X-Bus
Compatible Backplanes
BMXXBP0400, BMXXBP0600, BMXXBP0800, BMXXBP1200
Electrical Connection
2 × SUB-D 9 Female Connectors
Diagnostic Indicators
RUN / COL / Rack Address LEDs
Operating Voltage
24 V DC
Protection Rating
IP20
Operating Temperature
-25°C to +70°C
Installation Type
PLC Backplane Mounting
Dimensions
104 × 77 × 33 mm
Weight
0.18 kg (0.39 lb)
Recommended Related Models
Model
Product Type
Application
BMXXBC008K
Backplane Extension Cable
Rack-to-rack communication connection
BMXXBC012K
Backplane Extension Cable
Extended PLC rack installation
BMXXBP0400H
Ruggedized Backplane
4-slot severe environment rack
BMXXBP0800H
Ruggedized Backplane
Large I/O expansion system
BMXP342020
Processor Module
Modicon M340 PLC control
Popular Related Models
Model
Product Type
Schneider BMXXBE1000H
Backplane Expander
Schneider BMXXBC008K
Backplane Extension Cable
Schneider BMXXBP0400H
Backplane Module
Schneider BMXP342020
Processor Module
Schneider BMXCPS2000
Power Supply Module
Industrial Automation Applications and Multi-Rack PLC Expansion Connectivity
The Schneider BMXXBE1000H Backplane Expander is a ruggedized Modicon M340 Backplane Expansion Module designed for industrial automation systems that require multi-rack PLC configurations, reliable X-Bus communication, and flexible system expansion. This module enables engineers to connect multiple automation racks while maintaining stable communication between distributed control components.
Designed for demanding industrial environments, the BMXXBE1000H provides a practical solution for expanding Schneider Electric PLC architectures where additional I/O capacity, separated rack layouts, or larger control systems are required. It is commonly used with Modicon M340 and compatible Modicon M580 architectures to build scalable automation platforms.
The module is installed in the dedicated XBE position of compatible backplanes and works together with X-Bus extension cables to create multi-rack configurations. Its ruggedized design improves system reliability in applications exposed to vibration, temperature variation, and industrial operating conditions.
Typical application areas include:
Large PLC control cabinets
Factory automation systems
Process control installations
Distributed I/O architectures
Machine production lines
Manufacturing equipment upgrades
Energy and infrastructure automation
Harsh industrial environments
The BMXXBE1000H gives automation engineers greater flexibility when designing modular PLC systems, allowing control architectures to expand according to production requirements while maintaining dependable communication performance.
Flexible Rack Expansion Capability and Advanced Automation Benefits
Reliable Multi-Rack PLC Communication
The BMXXBE1000H provides reliable backplane expansion capability, allowing multiple Modicon racks to be connected through X-Bus communication. This makes it easier to distribute PLC hardware across larger installations while maintaining synchronized system operation.
Designed for Severe Industrial Environments
As a ruggedized expansion module, the BMXXBE1000H is developed for applications requiring increased environmental durability. It supports operation in harsh industrial conditions while maintaining stable communication performance.
Enhanced System Scalability
The module enables automation systems to expand beyond a single rack configuration, helping engineers increase I/O capacity and create larger PLC architectures without redesigning the complete control system.
Optimized Modicon Platform Integration
The BMXXBE1000H is specifically designed for Modicon M340 automation platforms and supports compatibility with selected backplane configurations, providing seamless integration into Schneider Electric PLC systems.
Simple Installation and Commissioning
With dedicated connectors and clear LED status indicators, the module simplifies installation procedures and helps technicians quickly verify operating conditions during commissioning.
Stable Data Transmission
The expansion module provides dependable local bus communication between racks, helping maintain consistent data exchange for industrial automation applications.
Compact Modular Design
The compact structure allows efficient installation inside control cabinets while providing essential expansion functions for larger automation projects.
Improved Maintenance Efficiency
Diagnostic indicators and organized rack expansion design help maintenance teams quickly identify communication problems and reduce system downtime.
1. What is the main function of the Schneider BMXXBE1000H?
The BMXXBE1000H extends Modicon PLC rack configurations by providing backplane expansion capability for multi-rack automation systems.
2. Which automation platforms support the BMXXBE1000H?
The module is designed mainly for Modicon M340 systems and supports compatible Modicon M580 multi-rack configurations.
3. What communication method does the BMXXBE1000H use?
The module uses X-Bus communication technology to exchange data between connected PLC racks.
4. Why does the PLC system fail to recognize an expanded rack?
Possible causes include incorrect rack configuration, improper cable connection, incompatible backplane hardware, or addressing errors.
5. How can X-Bus communication faults be diagnosed?
Check cable connections, module status LEDs, rack addressing settings, and PLC hardware configuration parameters.
6. What causes intermittent communication between PLC racks?
Common causes include loose connectors, damaged extension cables, electromagnetic interference, or incorrect installation.
7. Does the BMXXBE1000H require separate programming?
No. The module does not require independent programming, but the PLC hardware configuration must correctly define the expanded rack structure.
8. How many racks can be connected using the expansion system?
The supported number of connected racks depends on the processor type, backplane configuration, and system architecture.
9. What should be checked if the RUN indicator is not active?
Verify power conditions, rack installation, X-Bus connections, and PLC diagnostic messages.
10. What maintenance is recommended for the BMXXBE1000H?
Regular maintenance includes checking connectors, inspecting expansion cables, monitoring LED indicators, and verifying communication stability.
