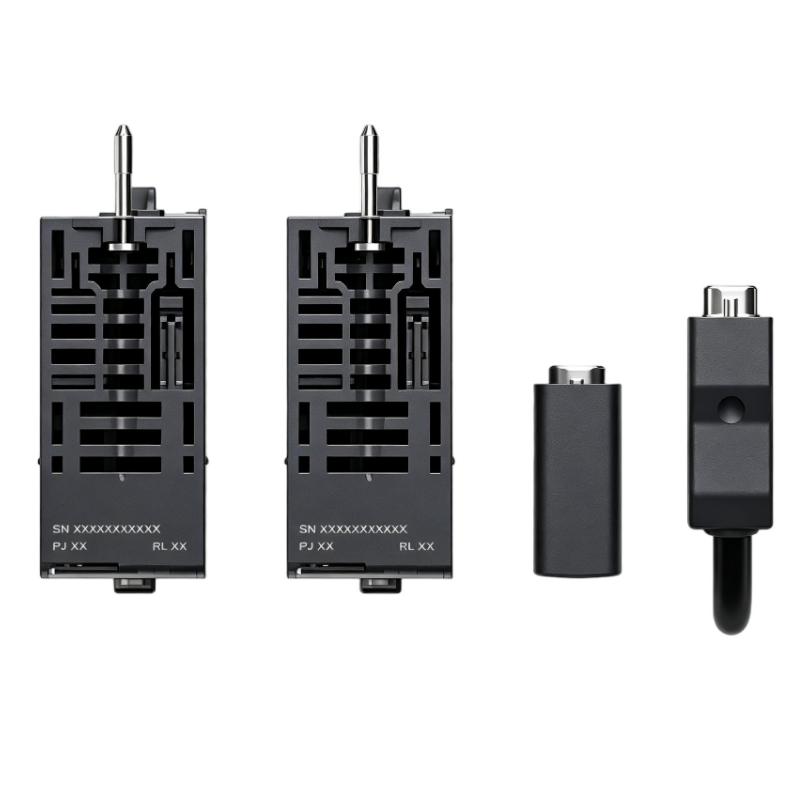

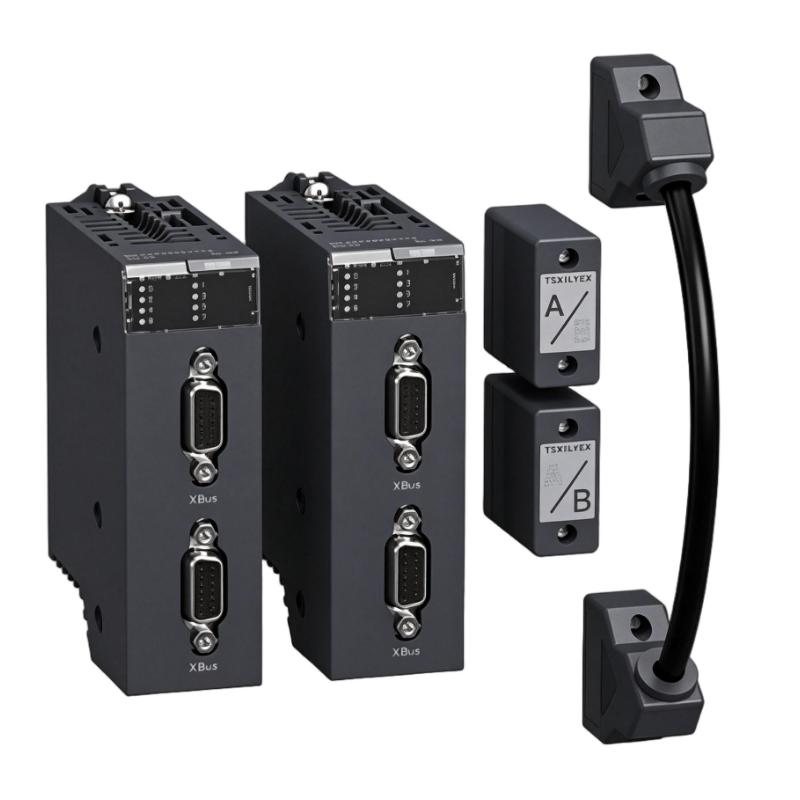

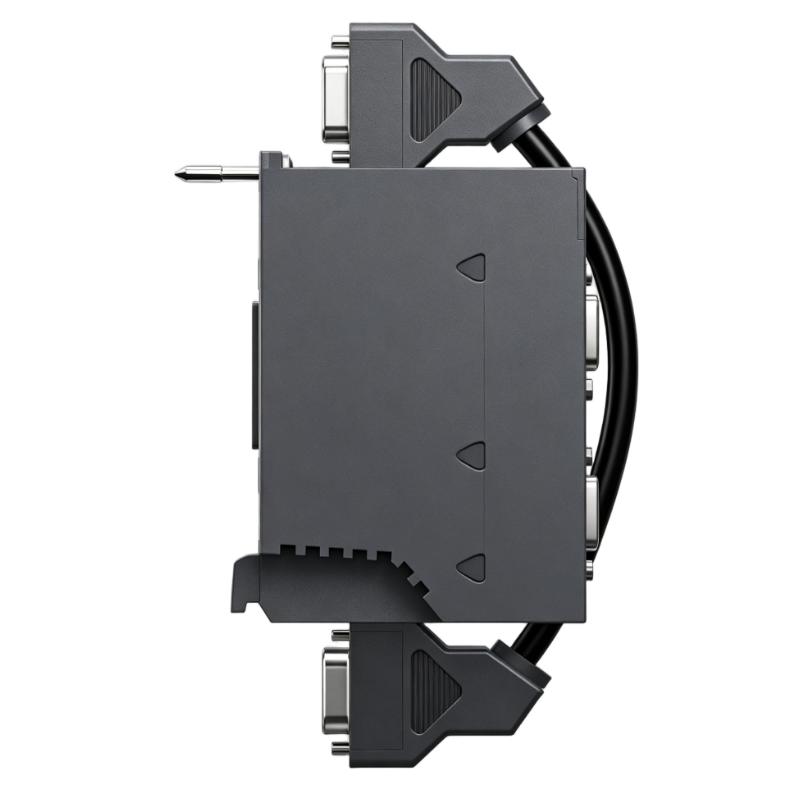

Schneider BMXXBE2005 M340 Backplane Expansion Kit

Multi-Rack PLC Expansion Applications and Modicon Automation System Extension Solutions

The Schneider BMXXBE2005 M340 Backplane Expansion Kit is a professional Modicon M340 Backplane Extension Kit designed to expand PLC rack architectures and support distributed automation system configurations. This accessory kit enables engineers to create multi-rack control systems by extending the communication connection between separated backplanes, providing greater flexibility for large industrial installations.

Designed for use with the BMXXBE1000 Backplane Expander, the BMXXBE2005 provides the essential components required for rack expansion, including extension connection accessories and line termination components. It helps simplify PLC system expansion by providing a complete solution for connecting additional racks within Modicon M340 automation platforms.

The BMXXBE2005 is especially suitable for applications where control cabinets require additional I/O capacity, separated equipment layouts, or modular PLC structures. By extending the backplane communication architecture, it allows automation engineers to design scalable systems without changing the basic PLC platform.

Typical application areas include:

• Large industrial PLC control systems
• Factory automation production lines
• Distributed I/O control architectures
• Machine manufacturing systems
• Process automation equipment
• Energy and infrastructure control systems
• Industrial cabinet expansion projects
• Modicon M340 modernization applications

With its complete expansion design and reliable communication capability, the BMXXBE2005 helps improve PLC system flexibility, simplify installation planning, and support future automation upgrades.

Flexible PLC Expansion Capability and Industrial Automation Advantages

Complete Multi-Rack Expansion Solution

The BMXXBE2005 provides a complete rack extension solution for Modicon M340 systems. It is designed to work with BMXXBE1000 expansion modules and includes the necessary connection accessories for creating extended PLC architectures.

Improved Control Cabinet Flexibility

By allowing PLC racks to be installed separately, the expansion kit helps engineers optimize cabinet layouts, reduce wiring limitations, and improve equipment organization in complex automation projects.

Reliable X-Bus Communication Extension

The kit supports stable communication between connected PLC racks through the Modicon backplane expansion architecture, ensuring consistent data exchange between distributed modules.

Simplified System Installation

Instead of designing custom connection solutions, engineers can use the BMXXBE2005 as a standardized expansion package, reducing commissioning time and improving installation efficiency.

Supports Scalable Automation Designs

The BMXXBE2005 allows automation systems to grow according to production requirements, making it suitable for both new machine installations and existing PLC system upgrades.

Industrial-Grade Reliability

Designed for industrial environments, the expansion kit provides dependable performance for continuous automation operation and long-term system availability.

Compatibility with Modicon Platform Architecture

The kit is developed specifically for the Modicon M340 automation platform and is compatible with BMXXBE1000 backplane expansion modules.

Reduced Maintenance Complexity

A standardized rack expansion structure makes troubleshooting easier by providing clear communication paths between PLC hardware components.

Technical FAQs – Schneider BMXXBE2005 M340 Backplane Expansion Kit

1. What is the main function of the Schneider BMXXBE2005?
The BMXXBE2005 extends Modicon M340 PLC backplane architecture, allowing multiple racks to communicate within a larger automation system.

2. Which PLC platform is compatible with the BMXXBE2005?
The kit is designed for the Schneider Modicon M340 automation platform and works with BMXXBE1000 backplane expansion modules.

3. What components are included in the BMXXBE2005 kit?

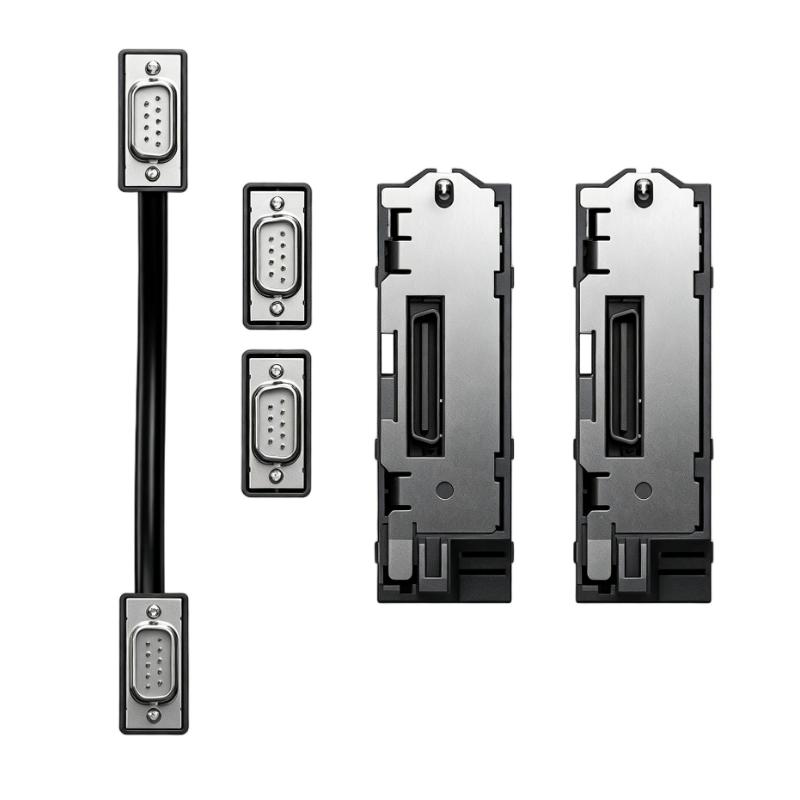

The kit includes extension rack connection components, cable, and line termination accessories required for multi-rack expansion.

4. Why does the PLC fail to detect the expanded rack?
Possible causes include incorrect hardware configuration, improper cable connection, damaged expansion components, or incorrect rack addressing.

5. How can backplane communication faults be diagnosed?
Check expansion module status indicators, verify cable connections, review PLC configuration settings, and inspect termination components.

6. What causes intermittent communication between PLC racks?
Common causes include loose connectors, electromagnetic interference, damaged cables, or incorrect installation procedures.

7. Does the BMXXBE2005 require PLC programming?
The expansion kit itself does not require programming, but the PLC project configuration must include the expanded rack structure.

8. Can the BMXXBE2005 be used for industrial environments with high reliability requirements?
Yes. The kit is designed for industrial automation applications requiring stable rack communication and reliable operation.

9. What should be checked after installing a new expansion rack?
Verify hardware recognition, communication status, rack configuration, and PLC diagnostic information.

10. What maintenance is recommended for the BMXXBE2005?
Maintenance includes checking cable connections, inspecting expansion modules, verifying communication stability, and reviewing system diagnostics.
