Brand:Schneider PLC Item No.:LXM23DU20M3X Product Origin:France Product Dimensions:114 x 225 x 195 mm Product Weight:3.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

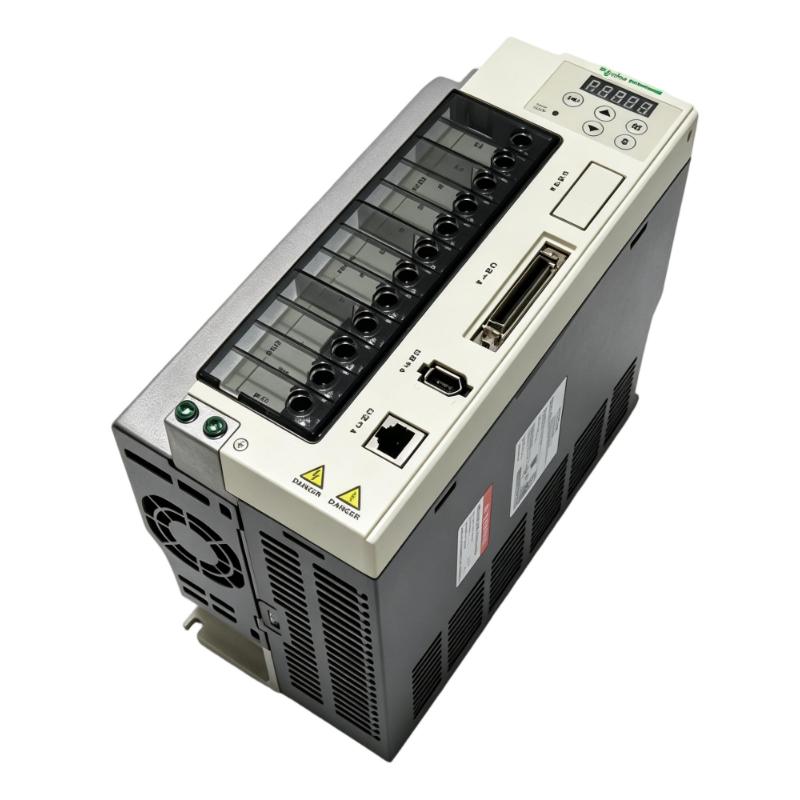

The Schneider LXM23DU20M3X Motion Servo Drive is a professional motion control component developed for industrial automation systems requiring accurate and reliable servo operation. As part of the Lexium 23 Plus platform, it provides engineers with a practical solution for controlling high-precision machinery and automated production equipment.
Modern manufacturing equipment increasingly requires faster response times, improved positioning accuracy, and better synchronization between mechanical components. Servo drives such as the LXM23DU20M3X provide the intelligent control interface required to achieve these performance goals.
The drive combines compact hardware design with flexible control functions, making it suitable for both new automation projects and existing machine upgrades. Its compatibility with Schneider Electric motion products allows system integrators to develop reliable servo architectures with simplified engineering processes.
For industrial users seeking dependable motion performance, the LXM23DU20M3X offers an efficient balance between control accuracy, system integration capability, and long-term operational stability.
Technical Specifications
Specification
Description
Manufacturer
Schneider Electric
Model Number
LXM23DU20M3X
Product Type
Motion Servo Drive
Product Family
Lexium 23 Plus
Drive Format
Book Style
Rated Supply Voltage
220 V AC Three Phase
Supply Voltage Range
170–255 V AC
Rated Power
2 kW
Continuous Output Current
13.4 A
Supply Frequency
50/60 Hz
Digital Inputs
8 Programmable Inputs
Digital Outputs
5 Programmable Outputs
Analog Inputs
2
Communication Function
Servo Motion Control Interface
Cooling Method
Integrated Fan Cooling
Installation Type
Cabinet Mounting
Dimensions
114 × 225 × 195 mm
Weight
3.20 kg (7.05 lb)
Recommended Related Models
Model
Product Type
Application
LXM23DU04M3X
Motion Servo Drive
Small-power servo applications
LXM23DU07M3X
Motion Servo Drive
Medium automation equipment
LXM23DU10M3X
Motion Servo Drive
Precision motion control systems
BCH1304N12A1C
Servo Motor
2 kW servo motor applications
BCH1304N12F1C
Servo Motor with Brake
Vertical axis motion systems
Popular Related Models
Model
Product Type
Schneider LXM23DU20M3X
Motion Servo Drive
Schneider LXM23DU10M3X
Motion Servo Drive
Schneider BCH1304N12A1C
Servo Motor
Schneider BCH1304N12F1C
Servo Motor
Schneider LXM23DU07M3X
Motion Servo Drive
Precision Motion Control Applications and Lexium 23 Servo Automation Solutions
The Schneider LXM23DU20M3X Motion Servo Drive is a high-performance Lexium 23 Plus Servo Drive designed for industrial motion control applications requiring accurate positioning, rapid response, and stable motor operation. Built for three-phase 220 V power systems with a 2 kW output capability, this servo drive provides reliable control performance for automated machinery and precision motion platforms.
The LXM23DU20M3X integrates advanced servo control technology with flexible I/O functions, allowing engineers to achieve precise speed, torque, and position management in demanding automation environments. It supports Schneider Electric Lexium servo motor systems and is widely applied in equipment where repeatability, synchronization, and dynamic response are essential.
Designed with a compact book-style structure, this servo drive helps optimize control cabinet space while maintaining efficient heat management and reliable electrical performance. Its practical design makes it suitable for machine builders, OEM equipment manufacturers, and industrial automation integrators seeking dependable motion solutions.
Typical application areas include:
CNC machinery and precision processing equipment
Packaging and filling machines
Robotic positioning systems
Electronic assembly equipment
Printing and textile machinery
Semiconductor manufacturing equipment
Material handling systems
Automated production lines
The Schneider LXM23DU20M3X provides a balanced combination of motion accuracy, installation flexibility, and industrial reliability, making it an effective solution for upgrading modern servo-based automation systems.
High-Accuracy Servo Control Performance and Industrial Automation Advantages
Advanced Motion Control Capability
The LXM23DU20M3X delivers precise servo motor control through closed-loop operation, enabling accurate positioning, speed regulation, and torque management for high-performance automation applications.
2 kW Power Output for Industrial Applications
With a rated power of 2 kW and continuous output current of 13.4 A, the servo drive provides sufficient performance for medium-duty motion applications requiring stable acceleration and consistent operation.
Flexible I/O Configuration
The drive includes programmable digital inputs and outputs together with analog input capability, allowing easier integration with PLC systems and machine controllers.
Lexium 23 Plus Platform Compatibility
As part of the Lexium 23 Plus family, the LXM23DU20M3X offers reliable compatibility with Schneider Electric servo motors and motion control architectures, simplifying system design and maintenance.
Compact Cabinet Installation Design
The book-style structure allows efficient vertical installation inside electrical cabinets, helping reduce panel space requirements while maintaining accessibility for wiring and commissioning.
Stable Three-Phase Power Operation
The drive supports three-phase 170–255 V AC supply ranges, making it suitable for industrial power systems requiring stable servo performance.
Improved Machine Productivity
Accurate motion control helps reduce positioning errors, improve cycle times, and increase production consistency in automated equipment.
Efficient Troubleshooting and Maintenance
Integrated diagnostic functions allow technicians to identify operating conditions quickly, reducing machine downtime during maintenance activities.
