Brand:Schneider PLC Item No.:SR2A101BD Product Origin:France Product Dimensions:71.2 x 90 x 59.5 mm Product Weight:0.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

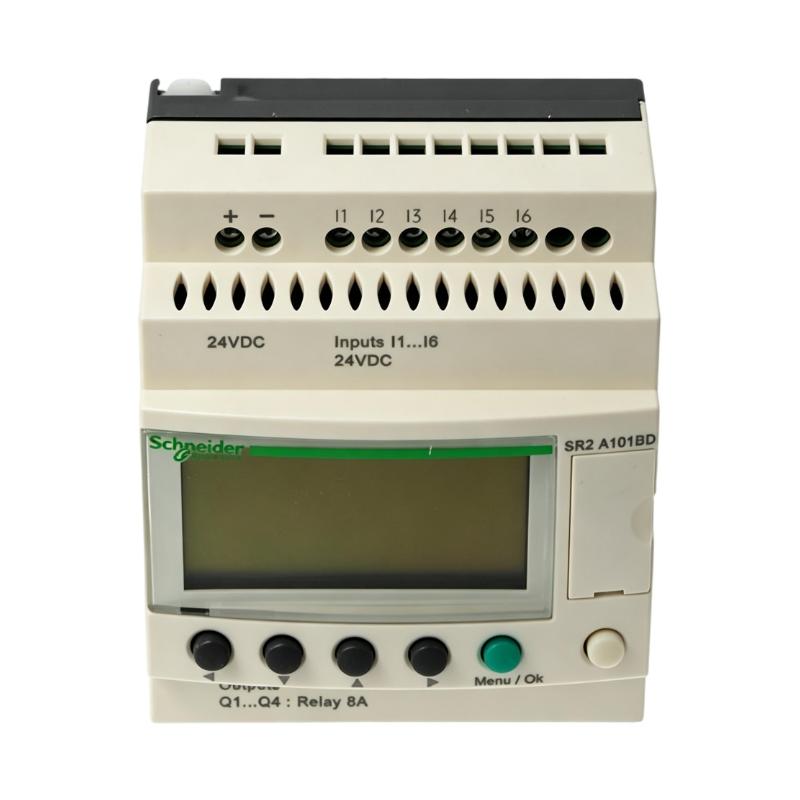

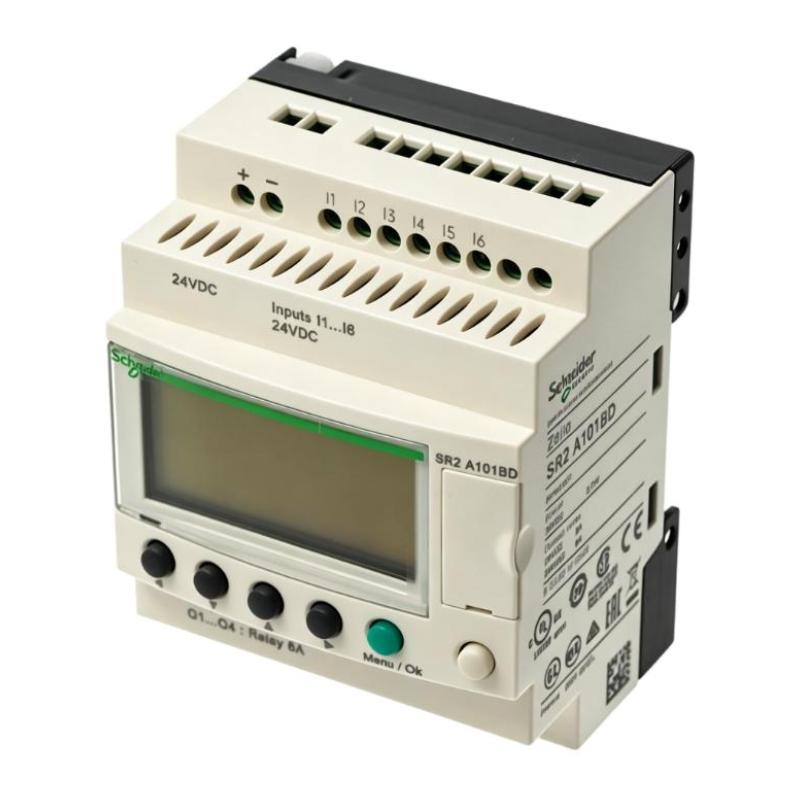

The Schneider SR2A101BD Compact Smart Relay is a reliable programmable control device developed for automation applications that require simple logic control, compact installation, and efficient operation. As part of the Zelio Logic family, it provides a practical bridge between conventional relay control and advanced PLC-based automation.
Many industrial machines and building automation systems do not require the complexity of a full PLC system but still need programmable control functions. The SR2A101BD addresses this requirement by integrating logic processing, relay switching, timing functions, and operator interaction into a single compact unit.
Its user-friendly programming environment and flexible application range make it suitable for machine builders, electrical designers, and maintenance teams looking for a dependable automation controller. Whether used in new equipment development or replacement of traditional relay circuits, the SR2A101BD improves system efficiency while simplifying control design.
For compact automation projects requiring reliable logic control and easy commissioning, the Schneider SR2A101BD delivers an effective and professional control solution.

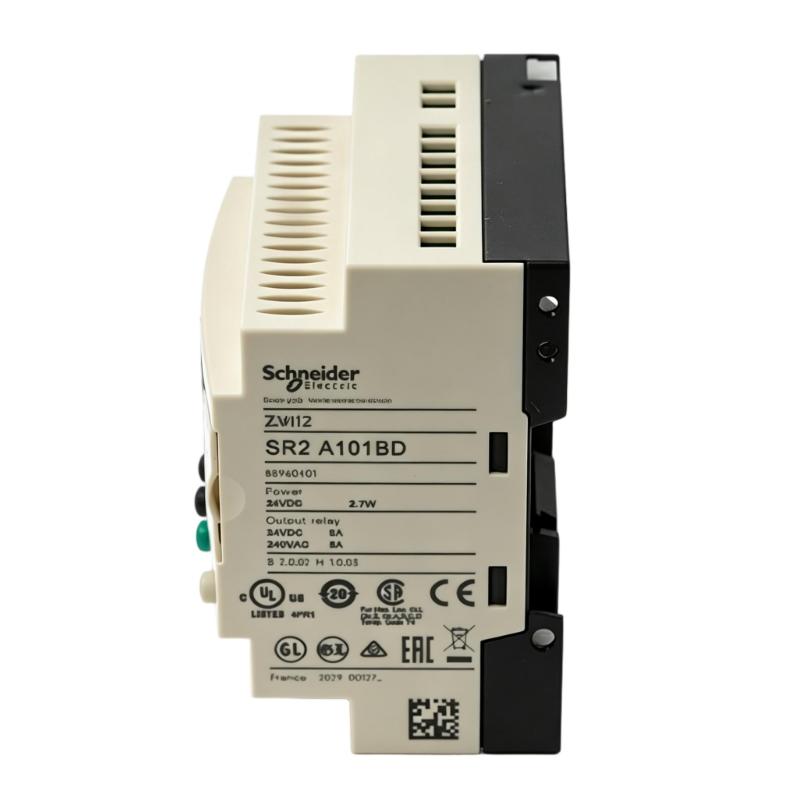

Technical Specifications
Specification
Description
Manufacturer
Schneider Electric
Model Number
SR2A101BD
Product Type
Compact Smart Relay
Product Family
Zelio Logic SR2
Power Supply
24 V DC
Number of Inputs
6 Digital Inputs
Number of Outputs
4 Relay Outputs
Total I/O Points
10
Display Type
Integrated LCD Display
Programming Method
Ladder Logic Programming
Programming Software
Zelio Soft
Memory Type
EEPROM Backup Memory
Control Program Capacity
Up to 240 Ladder Lines
Mounting Method
DIN Rail Mounting
Protection Rating
IP20
Dimensions
71.2 × 90 × 59.5 mm
Weight
0.25 kg (0.55 lb)
Recommended Related Models
Model
Product Type
Application
SR2B121BD
Compact Smart Relay
Expanded Zelio Logic control applications
SR2B201BD
Compact Smart Relay
Larger I/O automation projects
SR3B261BD
Modular Smart Relay
Flexible automation expansion
SR2COM01
Communication Module
Smart relay communication functions
SR2MEM02
Memory Cartridge
Program storage and transfer
Popular Related Models
Model
Product Type
Schneider SR2A101BD
Zelio Logic Compact Smart Relay
Schneider SR2B121BD
Zelio Logic Smart Relay
Schneider SR2B201BD
Compact Smart Relay
Schneider SR3B261BD
Modular Smart Relay
Schneider SR2COM01
Communication Module
Smart Control Applications and Zelio Logic Compact Automation Solutions
The Schneider SR2A101BD Compact Smart Relay is a versatile Zelio Logic Smart Relay designed for small-scale automation applications requiring simple programming, reliable control logic, and compact installation. This intelligent control device combines relay functionality with programmable logic capability, providing an efficient alternative to traditional relay-based control systems.
Designed with 10 digital I/O points, 24 V DC power supply, LCD display, and relay outputs, the SR2A101BD provides engineers with an easy-to-use automation solution for controlling lighting systems, machines, pumps, HVAC equipment, and other compact industrial applications.
The SR2A101BD belongs to the Schneider Electric Zelio Logic SR2 series, offering simple ladder programming through Zelio Soft software while maintaining the flexibility required for customized automation tasks. Its compact housing allows DIN rail installation, making it suitable for control cabinets where space efficiency is important.
Typical application areas include:
Small machine automation systems
Pump and motor control applications
Lighting automation projects
Building management systems
Conveyor and material handling equipment
Access control systems
HVAC control solutions
Industrial equipment upgrades
With its combination of programmable logic, integrated display, and compact construction, the SR2A101BD provides a practical control platform for OEM manufacturers, maintenance engineers, and automation system integrators.
Compact Programmable Control Performance and Industrial Automation Advantages
Simple Logic Programming for Fast Deployment
The SR2A101BD supports ladder logic programming, allowing engineers to create customized control sequences without complex PLC programming knowledge. This makes it especially suitable for compact automation projects requiring fast development and easy maintenance.
Integrated Display and Local Diagnostics
The built-in LCD interface allows operators and technicians to monitor system information, perform basic adjustments, and diagnose operating conditions directly from the device.
Flexible Digital Input and Relay Output Configuration
With six digital inputs and four relay outputs, the SR2A101BD provides sufficient I/O capability for many small automation applications, including switching control, timing operations, and sequence management.
Reliable 24 V DC Operation
The 24 V DC power supply design makes the smart relay compatible with common industrial control environments and improves integration flexibility in automation cabinets.

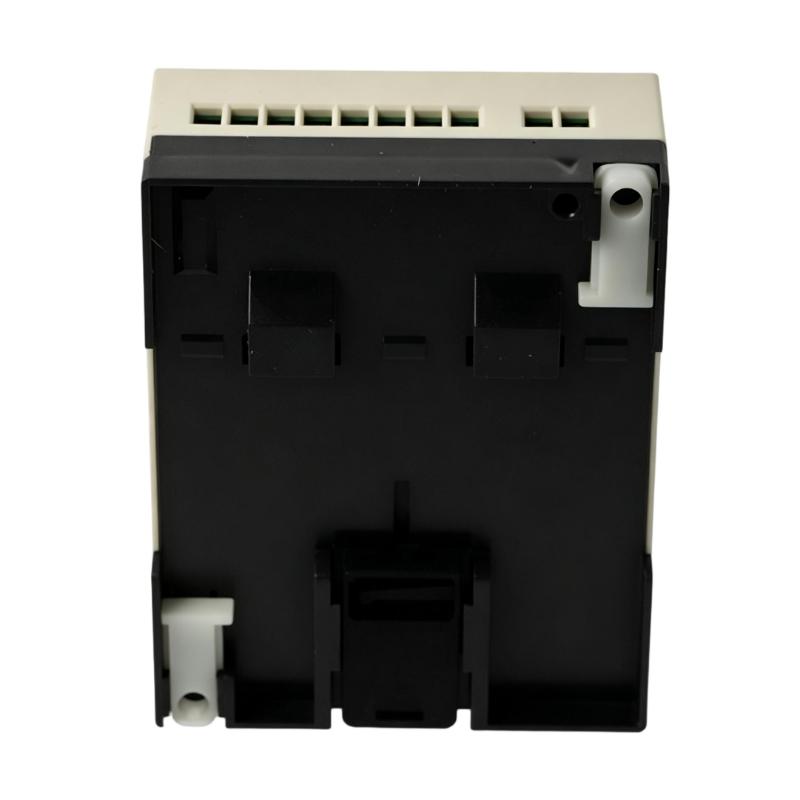

Compact DIN Rail Installation
The small form factor allows efficient cabinet installation while reducing panel space requirements compared with traditional control solutions.
Long-Term Program Memory Protection
The built-in EEPROM memory function helps retain application programs during power interruptions, improving system recovery reliability.
Cost-Effective Alternative to Traditional Relay Systems
By combining multiple relay functions, timers, counters, and logic operations into one programmable device, the SR2A101BD reduces wiring complexity and improves system flexibility.
Efficient Maintenance and Troubleshooting
Integrated diagnostics and simple programming tools allow technicians to identify control issues quickly and reduce machine downtime.
1. What is the main function of the Schneider SR2A101BD?
The SR2A101BD is a programmable smart relay used for controlling small automation systems through user-defined logic programs.
2. Which product family does the SR2A101BD belong to?
The SR2A101BD belongs to the Schneider Electric Zelio Logic SR2 compact smart relay family.
3. How is the SR2A101BD programmed?
The device can be programmed using ladder logic through Schneider Zelio Soft programming software.
4. Why does the smart relay fail to execute the control program?
Possible causes include incorrect program transfer, power supply problems, input signal errors, or damaged internal memory.
5. How can input signal faults be diagnosed?
Check field wiring, input voltage levels, sensor operation, and the input status displayed on the smart relay interface.
6. What causes relay output failure?
Possible causes include excessive load current, incorrect wiring, contact wear, or output circuit damage.
7. Why does the LCD display not operate correctly?
Check power supply stability, terminal connections, and possible hardware faults within the smart relay.
8. Can the SR2A101BD store the user application after power loss?
Yes. The device includes EEPROM memory designed for program backup and recovery.
9. What should be checked when communication with programming software fails?
Verify the programming cable connection, software settings, driver installation, and smart relay operating status.
10. What maintenance procedures are recommended for the SR2A101BD?
Regular maintenance includes checking wiring terminals, reviewing program operation, inspecting the cabinet environment, and monitoring output performance.
