Product Introduction

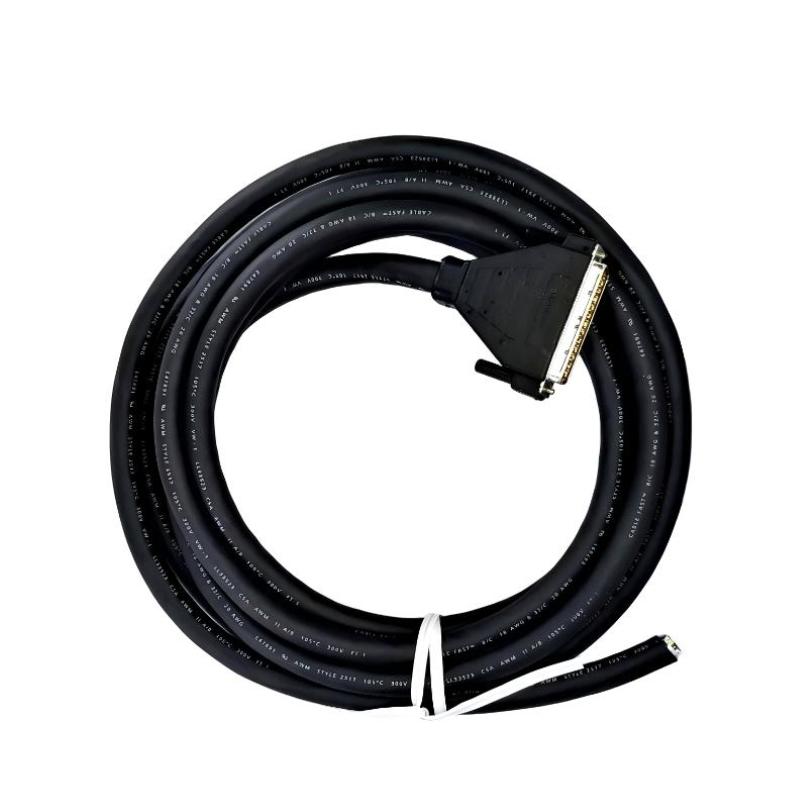

The Schneider VW3M8A12R015 Encoder Cable Module is a professional servo feedback accessory developed for the Lexium 16 motion platform. Designed for BCH16 servo motors, it provides a dependable connection between the motor encoder and servo drive, enabling accurate feedback communication for precision motion applications.
Featuring a 15-meter shielded cable design, the VW3M8A12R015 is optimized for machines that require longer routing distances while maintaining reliable signal quality. The cable structure combines practical installation flexibility with stable encoder communication, making it suitable for industrial automation environments where accuracy and uptime are critical.
This encoder cable is an effective solution for machine manufacturers, automation engineers, and maintenance teams seeking a reliable connection accessory for BCH16 servo systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | VW3M8A12R015 |
| Product Type | Encoder Cable Module |
| Product Series | Lexium 16 |
| Compatible Servo Motor | BCH16 Servo Motor |
| Compatible Servo Drive | Lexium 16 Servo Drive |
| Cable Function | Encoder Feedback Connection |
| Cable Type | Shielded Encoder Cable |
| Cable Length | 15 m |
| Cable Structure | 2 × 0.5 mm² + 1 × (2 × 0.2 mm²) |
| Connection Type | Servo Motor Encoder Cable |
| Application | Position and Speed Feedback Transmission |
| Installation Type | Motor-to-Drive Connection |
| Dimensions | Cable Length: 15000 mm |
| Weight | Approx. 1.1 kg |
Recommended Companion Models
| Model | Product Name |
|---|---|
| VW3M8A12R03 | BCH16 Servo Motor Encoder Cable 3m |
| VW3M8A12R10 | BCH16 Servo Motor Encoder Cable 10m |
| VW3M8A11R05 | BCH16 Servo Motor Encoder Cable 5m |
| LXM16DU60M2 | Lexium 16 Servo Drive |
Frequently Selected Alternatives
| Model | Product Name |
|---|---|
| VW3M8A11R10 | BCH16 Servo Motor Encoder Cable 10m |
| VW3M8A11R05GJ | BCH16 Servo Motor Encoder Cable 5m |
| VW3M8102R50 | Lexium 32 SinCos Hiperface Encoder Cable 5m |
| VW3M8121R100 | Lexium Servo Encoder Cable Without Battery Box 10m |
