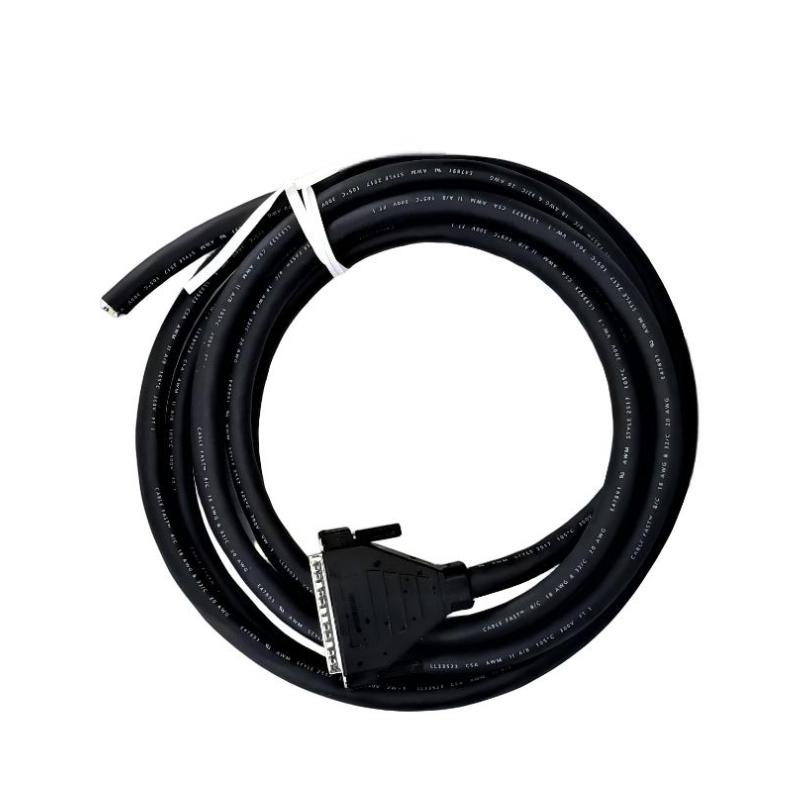

Schneider VW3M8A21R03GJ Encoder Cable Module

Where It Excels in Industrial Use

• Easy Lexium 16 servo motion control systems
• BCH16 servo motor encoder feedback applications
• Compact automation machinery requiring reliable signal transmission
• Packaging and assembly equipment
• Robotic positioning and handling systems
• Precision motion applications with strict feedback requirements
• OEM machine manufacturing and customized servo integration
• Servo system replacement and maintenance operations

Key Strengths at a Glance

• Designed for Schneider Electric Easy Lexium 16 servo applications
• Compatible with BCH16 servo motors
• 3-meter shielded encoder cable configuration
• MIL connector design provides secure servo motor connection
• Supports accurate encoder feedback transmission for closed-loop control
• Shielded structure helps improve noise resistance in industrial environments
• Factory-matched Schneider accessory for simplified installation
• Helps maintain stable positioning performance and motion accuracy

Technical FAQs

1. What is the main function of the Schneider VW3M8A21R03GJ?

The VW3M8A21R03GJ is an encoder feedback cable designed to connect BCH16 servo motors with Schneider Electric servo drives, providing reliable position and speed feedback communication.

2. Which servo motors are compatible with the VW3M8A21R03GJ?

The cable is designed specifically for BCH16 servo motor encoder applications within Schneider Electric Easy Lexium motion systems.

3. Is the VW3M8A21R03GJ a motor power cable?

No. The VW3M8A21R03GJ is an encoder signal cable and is used for feedback communication rather than supplying motor power.

4. What type of connector does this encoder cable use?

The VW3M8A21R03GJ uses a MIL-style connector interface designed for BCH16 servo motor feedback connections.

5. Why is the cable shielded?

The shielded construction helps reduce electromagnetic interference from servo drives, motors, and surrounding industrial equipment, improving signal stability.

6. Does the VW3M8A21R03GJ require programming or configuration?

No. It is a passive connection accessory and does not require firmware updates, software settings, or parameter configuration.

7. What advantage does a 3-meter encoder cable provide?

The 3-meter length is suitable for compact machines where the servo motor and control cabinet are installed relatively close together.

8. Can the VW3M8A21R03GJ be used in OEM automation equipment?

Yes. It is suitable for OEM machine builders and system integrators developing servo-based industrial automation solutions.

9. How does encoder cable quality affect servo performance?

A high-quality encoder cable helps maintain accurate feedback signals, supporting smooth movement, precise positioning, and reliable servo operation.

10. Why choose a Schneider original encoder cable solution?

A Schneider dedicated encoder cable provides better compatibility, reliable electrical performance, and easier integration with matching servo components.
