ABB NGDR-03 58908193F gate drive card installation problems are usually caused by incorrect board connections, poor signal feedback wiring, incompatible replacement settings, or improper power module configuration rather than the gate board itself being defective. In industrial power electronics systems, a gate drive card may appear powered and active while the inverter still fails to control switching devices correctly because the firing signals, feedback circuits, or protection interfaces are not correctly configured.

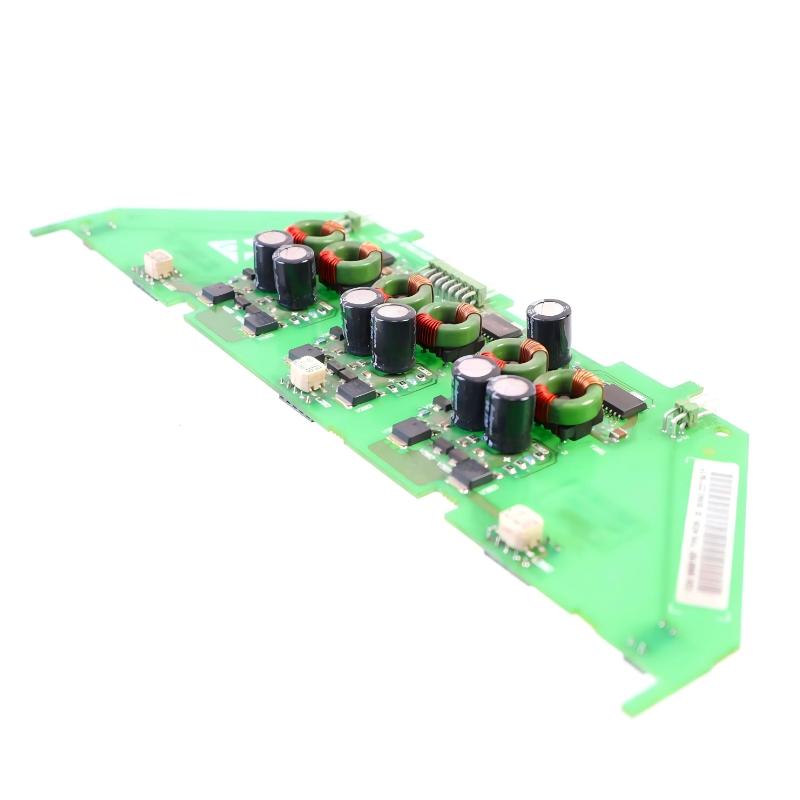

The ABB NGDR-03 58908193F Gate Drive Card is a control interface board used in ABB industrial drive systems. It provides gate control functions for power semiconductor switching devices, including signal conditioning, firing pulse transmission, and protection feedback communication between the control section and power stage.

ABB NGDR-03 58908193F Gate Drive Card Application Overview

The NGDR-03 gate drive card works as the communication bridge between the drive control electronics and the power switching section.

Typical system structure:

 id="abb_ngdr_arch"
Drive Control Board
          |
          |
ABB NGDR-03 58908193F Gate Drive Card
          |
          |
IGBT / Power Semiconductor Module
          |
          |
Motor Power Output

Main functions:

• Gate pulse transmission
• Power device switching control
• Electrical isolation
• Fault feedback transmission
• Protection signal processing

Typical applications:

• Industrial AC drives
• High-power motor control systems
• Process automation equipment
• Power conversion systems

The gate drive card is a critical component because incorrect switching control can directly affect:

• Motor acceleration
• Output current stability
• Drive protection behavior
• System availability

In one industrial drive repair project, engineers replaced an aging gate drive card with an ABB NGDR-03 58908193F unit.

During startup testing:

• Control system: Normal
• Display interface: Normal
• Motor output: Missing
• Drive generated power stage alarm

The initial assumption was a damaged IGBT module.

The engineering team performed a structured investigation:

• Checked gate pulse signals
• Verified board connections
• Tested feedback circuits
• Compared drive diagnostic information

Measured condition:

Before correction:

• Control voltage: Normal
• Gate command: Present
• Power switching response: Abnormal
• Fault feedback: Active

Further inspection found that one feedback connector was not fully seated after installation.

After reconnecting the interface:

• Gate signals became normal
• Drive output recovered
• Motor operation returned to normal

The problem was caused by installation connection issues rather than NGDR-03 hardware failure.

ABB NGDR-03 58908193F Gate Drive Card Installation Preparation and System Inspection

Before installing the NGDR-03 gate drive card, engineers should evaluate the complete drive hardware structure.

Preparation requirements:

• Confirm replacement board model
• Record original parameter settings
• Inspect connector conditions
• Verify power stage compatibility
• Check grounding conditions

Installation checklist:

A common field mistake is replacing a gate drive card without checking connector positions and feedback circuits.

Because the gate drive card directly controls semiconductor switching devices, even a small connection error may cause:

• Overcurrent trips
• Gate fault alarms
• Motor output loss
• Drive startup failure

ABB NGDR-03 58908193F Hardware Installation and Connector Wiring

Proper installation is essential for reliable gate signal transmission.

Gate Signal Connection Inspection

Engineers should verify:

• Gate pulse interface
• Control signal connector
• Feedback terminals
• Isolation interface

Power Supply Check

Confirm:

• Auxiliary supply voltage
• Board power indicator
• Internal protection status

Feedback Circuit Verification

Check:

• Fault return signals
• Temperature feedback
• Current protection feedback

During one field maintenance case:

Initial condition:

• Replacement NGDR-03 installed
• Drive powered successfully
• Motor could not start

Inspection results:

• Control board communication: Normal
• Gate drive board power: Normal
• Feedback signal: Incorrect

The engineering team discovered that the feedback connector position was incorrect.

After correction:

• Protection status cleared
• Power stage enabled
• Motor started successfully

ABB NGDR-03 58908193F Gate Drive Card Setup and Commissioning Configuration

The setup process ensures correct communication between the control system and power stage.

Important checks include:

• Gate signal response
• Fault feedback status
• Drive control communication
• Power module interaction

Typical diagnostic logic:

IF Control_Command = Valid
AND Gate_Signal = Present
AND Feedback_Status = Normal

THEN

Enable Power_Output

Engineers should verify:

• No gate fault alarms
• Correct switching response
• Stable current output
• Normal motor operation

During commissioning, engineers should avoid replacing multiple power components simultaneously because it makes fault identification difficult.

ABB NGDR-03 58908193F Commissioning Validation and Performance Testing

Final commissioning should confirm the complete drive power system.

Switching Signal Test

Verify:

• Gate pulse transmission
• Protection feedback
• Fault response

Motor Operation Test

Check:

• Startup performance
• Current waveform
• Speed response
• Continuous operation

Example commissioning results:

Before correction:

• Drive entered fault mode
• Motor output unavailable
• Switching feedback abnormal

After correction:

• Gate control restored
• Motor output stable
• Drive operation recovered

A successful ABB NGDR-03 58908193F installation requires correct board matching, secure wiring, and systematic commissioning verification.
