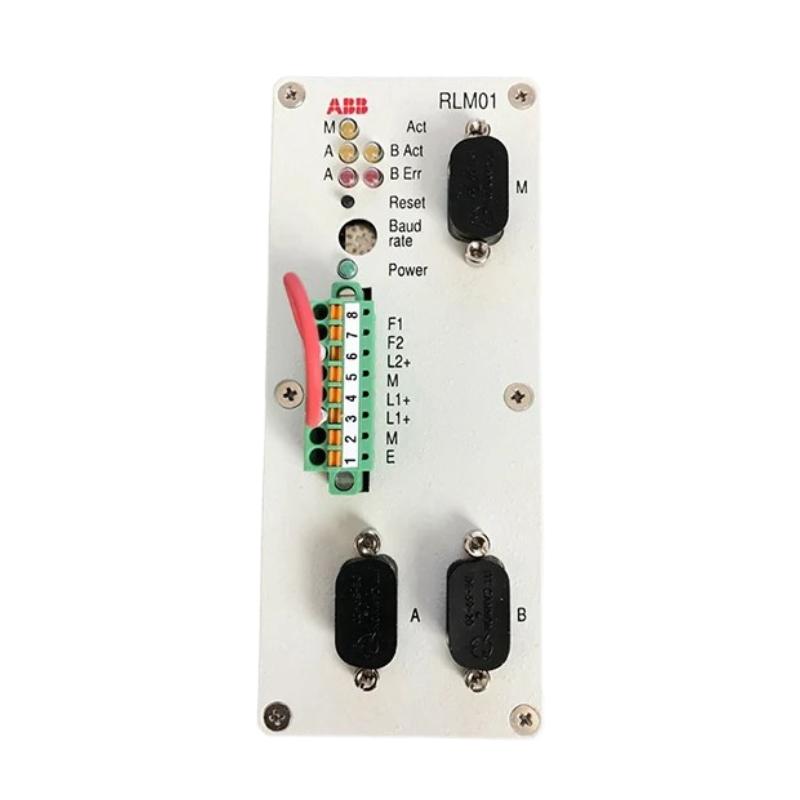

The ABB RLM01 Remote I/O Link Module is an advanced communication module designed to facilitate seamless and reliable communication between ABB's S800 I/O system and central control devices, such as Programmable Logic Controllers (PLCs) or other automation systems. Serving as a critical link in industrial control systems, the RLM01 ensures that data from remote I/O modules is transmitted efficiently, reducing response times and improving overall system performance.

The ABB RLM01 enables remote I/O configurations, allowing for greater flexibility and scalability in automation systems. With its robust design and high-speed communication capabilities, it is particularly suitable for complex industrial applications, where system reliability and efficient communication are essential.

Technical Specifications

Feature	Specification
Model	RLM01
Type	Remote I/O Link Module
Communication Protocol	ABB S800 I/O Communication Protocol
Input Power	24V DC
Dimensions (H x W x D)	100 x 75 x 120 mm (3.9 x 3 x 4.7 inches)
Weight	0.5 kg (1.1 lbs)
Operating Temperature Range	-20°C to +60°C
Communication Ports	1 x RS232, 1 x RS485
Status Indicators	LED indicators for communication and power
Certification	CE, UL, CSA

Recommended Related Models

ABB S800 I/O Modules – These I/O modules can be directly connected to the RLM01, providing efficient and scalable input/output processing for automation systems.
ABB CM572 Communication Module – Designed for efficient communication between different control systems, the CM572 module complements the RLM01 by offering additional connectivity options.
ABB AC500 PLC – The RLM01 integrates seamlessly with the AC500 PLC, enhancing communication between the PLC and remote I/O modules.

Popular ABB Models

ABB S900 I/O Modules – Ideal for industrial automation, these modules work seamlessly with the RLM01 for enhanced I/O processing.
ABB PU514A Power Supply – Powers the RLM01 and other ABB modules, providing reliable 24V DC for uninterrupted system operation.
ABB PS501 Power Supply – A high-performance power supply option to ensure stable power distribution across automation systems.

Applications

Process Automation: The RLM01 is ideal for industries such as chemical, oil and gas, and pharmaceutical, where remote communication between control systems and I/O modules is essential for managing complex processes and operations.
Machine Automation: In manufacturing environments, the RLM01 ensures fast and reliable data exchange between PLCs and remote I/O modules, streamlining machine control and minimizing downtime.
Energy Management Systems: Used in energy distribution systems, the RLM01 provides essential communication between remote sensors, meters, and central control devices, ensuring efficient energy management and monitoring.
Building Automation: In HVAC, lighting, and security systems, the RLM01 helps maintain reliable communication between remote I/O devices and central control systems, ensuring proper operation and system integration.

Advantages

High-Speed Communication: The RLM01 supports fast communication between control systems and remote I/O modules, ensuring real-time data transmission and minimizing response times in critical applications.
Flexible Integration: Compatible with ABB’s S800 I/O system and other automation components, the RLM01 provides a flexible solution for expanding or upgrading industrial control systems.
Compact Design: With compact dimensions (100 x 75 x 120 mm), the RLM01 can be easily integrated into control cabinets or automation panels with limited space.
Wide Temperature Range: The module operates in a wide temperature range from -20°C to +60°C, making it suitable for use in both indoor and outdoor industrial environments.
Reliable Communication: Equipped with RS232 and RS485 communication ports, the RLM01 ensures dependable and secure data exchange over long distances.
LED Indicators: Real-time monitoring is made easier with LED indicators for power and communication status, helping operators identify issues and troubleshoot effectively.
Global Certifications: The RLM01 is CE, UL, and CSA certified, ensuring compliance with international safety and quality standards for industrial systems worldwide.

Technical FAQs

What communication protocols does the ABB RLM01 support?
The RLM01 uses the ABB S800 I/O communication protocol to facilitate communication between remote I/O modules and control systems.
What is the power input for the RLM01 module?
The RLM01 operates on a 24V DC input power, making it compatible with a wide range of power systems commonly used in industrial automation.
What are the communication options available on the RLM01?
The RLM01 is equipped with both RS232 and RS485 communication ports, allowing for flexible connectivity options depending on the system requirements.
What is the weight of the ABB RLM01?
The RLM01 weighs approximately 0.5 kg (1.1 lbs), making it lightweight and easy to integrate into existing automation systems without adding significant weight.
What is the operating temperature range for the RLM01?
The module operates within a wide temperature range of -20°C to +60°C, ensuring its suitability for a variety of industrial environments.
What status indicators are available on the RLM01?
The RLM01 features LED indicators that provide real-time feedback on both power and communication status, helping operators identify issues quickly.
Can the RLM01 be used with other ABB products?
Yes, the RLM01 is designed to integrate seamlessly with other ABB automation products, particularly the S800 I/O modules and AC500 PLCs.
What certifications does the RLM01 have?
The RLM01 is certified with CE, UL, and CSA, ensuring that it meets global safety and quality standards for use in industrial automation systems.
Is the RLM01 suitable for outdoor use?
Yes, the RLM01 operates within a broad temperature range and is designed to function reliably in both indoor and outdoor industrial settings.
What industries benefit from using the ABB RLM01?
The RLM01 is used across various industries, including process automation, machine control, energy management, and building automation, providing reliable communication for remote I/O modules and control systems.
