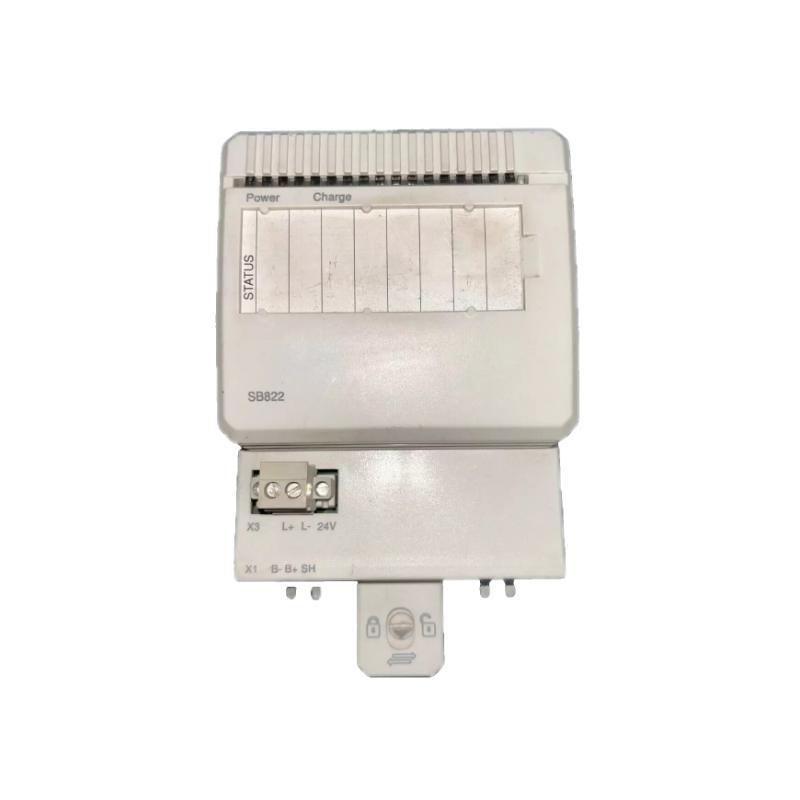

The ABB SB822 is an advanced communication module designed to integrate seamlessly into ABB’s S800 I/O series, providing reliable and high-speed data transfer between remote I/O devices and central control systems such as PLCs or SCADA systems. With support for multiple communication protocols, including Modbus RTU, Modbus TCP, and EtherNet/IP, the SB822 is a versatile solution for applications requiring flexible communication in industrial automation systems.

Built for demanding environments, the SB822 ensures continuous and uninterrupted communication, making it ideal for a wide range of industrial applications such as machine automation, process control, and energy management. The module’s robust design and fast data transmission speed make it a reliable choice for industries that need real-time data and optimal performance from their automation systems.

Technical Specifications

Feature	Specification
Model	SB822
Type	Communication Module
Supported Protocols	Modbus RTU, Modbus TCP, EtherNet/IP
Input Power	24V DC
Dimensions (H x W x D)	130 x 85 x 120 mm (5.1 x 3.3 x 4.7 inches)
Weight	0.9 kg (1.98 lbs)
Operating Temperature Range	-20°C to +60°C
Data Transmission Speed	Up to 10 Mbps (Ethernet)
LED Indicators	For power and communication status
Certification	CE, UL, CSA

Recommended Related Models

ABB S800 I/O Modules – The SB822 works seamlessly with ABB's S800 I/O modules, enabling reliable data transfer between remote I/O devices and control systems in a distributed system.
ABB PU514A Power Supply – Provides stable power to the SB822 and other connected devices, ensuring continuous operation.
ABB CM572 Communication Module – Extends the capabilities of the SB822, offering additional communication interfaces for more complex control systems.

Popular ABB Models

ABB AC500 PLC – The AC500 modular PLC integrates smoothly with the SB822, offering scalable and flexible automation solutions for a wide range of industrial processes.
ABB PS501 Power Supply – Reliable and robust power supply for ABB modules like the SB822, ensuring stable system performance.
ABB S900 I/O Modules – When used with the SB822, the S900 I/O modules offer enhanced I/O capabilities for complex automation applications.

Applications

Process Automation: In industries such as chemical, oil & gas, and pharmaceuticals, the SB822 ensures seamless communication between remote I/O devices and central control systems, enhancing process monitoring and control.
Machine Automation: In manufacturing environments, the SB822 enables real-time data transfer between machines, sensors, and control systems, improving system efficiency and reducing downtime.
Energy Management: The SB822 is used in smart grids and energy metering systems, providing real-time data to improve energy distribution and optimize consumption.
Building Automation: The SB822 can be integrated into HVAC, lighting, and security systems to enable centralized control and real-time monitoring for efficient building management.

Advantages

Multi-Protocol Support: The SB822 supports Modbus RTU, Modbus TCP, and EtherNet/IP, providing compatibility with a wide range of industrial communication systems and devices.
Fast Data Transmission: With data transmission speeds of up to 10 Mbps over Ethernet, the SB822 ensures fast and efficient communication in real-time applications.
Wide Temperature Range: The module operates within a temperature range of -20°C to +60°C, making it suitable for both indoor and outdoor environments.
Compact Design: The SB822 is compact, weighing only 0.9 kg (1.98 lbs), allowing for easy integration into existing industrial systems or control panels.
Real-Time Diagnostics: Equipped with LED indicators, the SB822 provides real-time feedback on power and communication status, enabling quick troubleshooting and system maintenance.
Global Certifications: The SB822 is CE, UL, and CSA certified, ensuring that it meets international standards for safety, reliability, and performance in industrial applications.

Technical FAQs

What communication protocols are supported by the ABB SB822?
The SB822 supports Modbus RTU, Modbus TCP, and EtherNet/IP, offering flexibility in how it integrates with various industrial systems.
What is the maximum data transmission speed for the SB822?
The SB822 supports data transmission speeds of up to 10 Mbps over Ethernet, enabling fast and reliable communication for industrial automation.
What is the power supply requirement for the SB822?
The SB822 requires a 24V DC input, which is standard for ABB's industrial communication modules and I/O devices.
How much does the ABB SB822 weigh?
The SB822 weighs approximately 0.9 kg (1.98 lbs), making it a lightweight and easy-to-install module for industrial control systems.
What is the operating temperature range for the SB822?
The SB822 operates in a temperature range of -20°C to +60°C, making it ideal for use in diverse environmental conditions.
Does the SB822 have status indicators?
Yes, the SB822 includes LED indicators that show the power status and communication health, helping operators monitor the system easily.
Can the SB822 be integrated with other ABB products?
Yes, the SB822 integrates seamlessly with other ABB products like AC500 PLCs, S800 I/O modules, and PU514A power supplies, allowing for a complete automation solution.
What certifications does the ABB SB822 have?
The SB822 is CE, UL, and CSA certified, ensuring it meets international safety and performance standards.
Is the SB822 suitable for outdoor use?
Yes, the SB822 is built to withstand outdoor environments and operates reliably in temperatures from -20°C to +60°C, making it suitable for both indoor and outdoor industrial applications.
In which industries is the ABB SB822 commonly used?
The SB822 is used in industries such as process automation, machine automation, energy management, and building automation, providing reliable communication and system integration for efficient operations.
