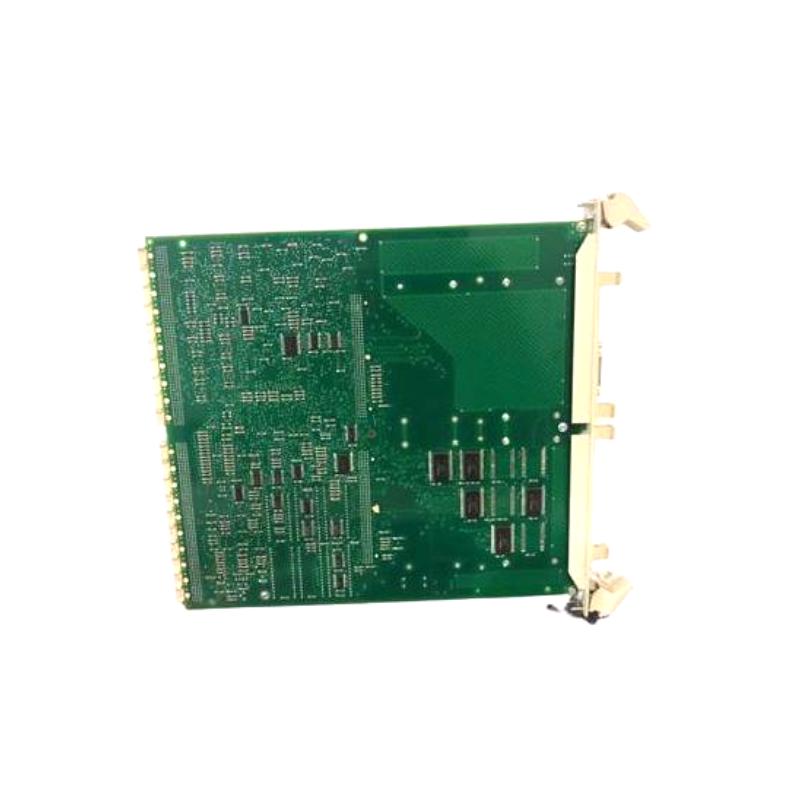

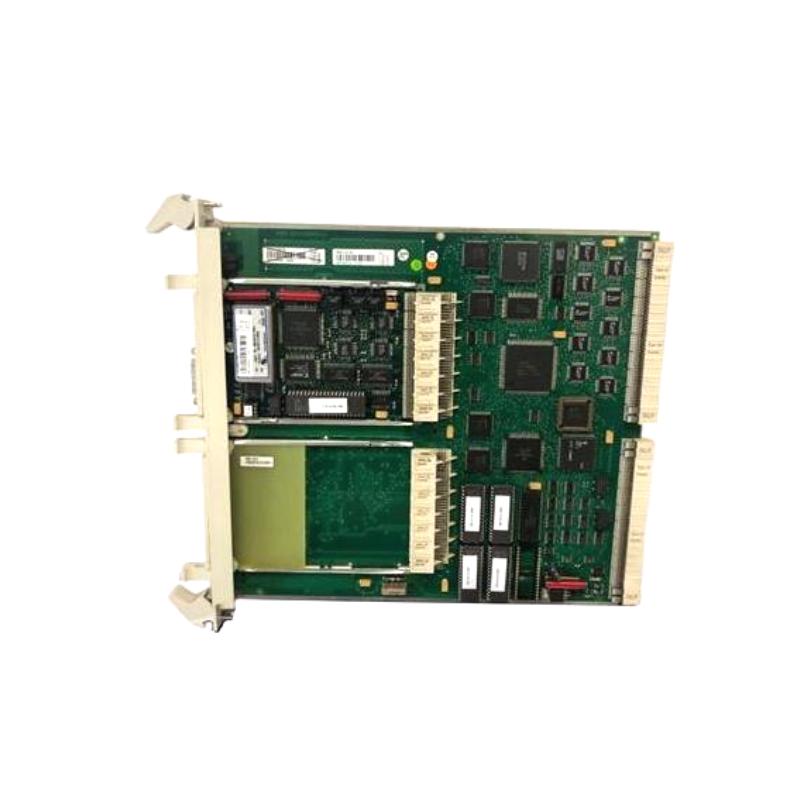

The ABB SC540 Control System Module is a high-performance solution designed for demanding industrial automation and process control applications. Engineered with advanced processing capabilities and versatile communication interfaces, the SC540 offers reliability and scalability for controlling and monitoring complex systems. As part of the ABB SC500 series, this module integrates seamlessly into automation frameworks, enabling businesses across various industries, including manufacturing, energy, and process control, to achieve enhanced operational efficiency.

With its robust design and exceptional processing power, the SC540 is ideal for applications that require precision, real-time data management, and reliable system integration. Whether managing critical processes in a power plant, coordinating machinery on a production line, or optimizing energy usage, the SC540 provides the foundation for operational excellence.

Technical Specifications

Specification	Value
Model	ABB SC540
Type	Control System Module
Processor	1 GHz Dual-core
Memory	8MB User Memory, 4MB Data Memory
Ethernet Ports	2 x 10/100/1000 Mbps Ethernet Ports
I/O Channels	Up to 16,000 I/O devices supported
Power Supply	24V DC
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Dimensions (WxHxD)	5.25" x 9.20" x 3.00"
Weight	2.3 lbs (1.04 kg)

Recommended Related Models

ABB SC510 – A more compact model, designed for smaller-scale applications and systems with less complexity.
ABB SC550 – A more advanced control module in the SC500 series, offering higher processing speeds and additional features for large-scale systems.
ABB S800 I/O Series – Modular I/O modules that work seamlessly with the SC540 for large-scale or remote I/O configurations.
ABB PM800 Power Meter – A highly accurate power monitoring system to help optimize energy use within industrial systems.

Popular ABB Models

ABB SC500 Series Controllers – Flexible controllers with different configurations for a variety of industrial applications.
ABB AC500 Modular Controllers – High-performance control units for extensive automation tasks.
ABB S800 I/O Modules – A range of I/O solutions for both local and remote control applications.
ABB AC800M Controller – A scalable solution for process control, suitable for large-scale projects.
ABB Fieldbus Modules – Communication modules for integration of control systems with field devices.
ABB Robotics Controllers – Controllers designed for advanced robotic applications in manufacturing.
ABB Power Monitoring Systems – Monitoring solutions to ensure efficient energy usage across industrial plants.
ABB Smart Sensors for Automation – Sensors used in industrial automation for data collection and real-time system feedback.
ABB DCS (Distributed Control Systems) – Comprehensive systems for complex process control.
ABB FDT DTM Software – Software for integrating and managing field devices within automation systems.

Applications

The ABB SC540 Control System Module excels in a wide range of industrial applications, including:

Manufacturing Automation: Ideal for managing complex machinery and assembly lines, improving process efficiency and reducing downtime.
Energy Management: Used in power generation and distribution networks to monitor and control energy flow, ensuring optimal efficiency and safety.
Process Control: Perfect for industries such as chemicals, pharmaceuticals, and oil & gas, where precise control of processes is essential.
Building Automation: Applied in managing lighting, HVAC systems, and security features in commercial buildings, offering remote control and energy optimization.
Machine Control: Ideal for packaging lines, robotics, and conveyor systems, allowing precise and real-time control of production processes.

Advantages

Advanced Processing Power: The dual-core processor ensures that the SC540 can handle large amounts of data and multiple operations simultaneously, enhancing system performance and reducing lag.
Modular and Scalable: The system can be easily expanded with additional I/O modules, offering flexibility to scale as your automation needs grow.
Enhanced Connectivity: With dual Ethernet ports, the SC540 enables seamless communication across devices, improving the integration of remote systems and field devices.
Energy Optimization: The SC540 supports energy management applications, helping businesses monitor power consumption and reduce overall costs.
Reliability in Harsh Environments: The module operates within a wide temperature range (-20°C to 60°C), making it suitable for diverse industrial environments.
Versatile Integration: The SC540 integrates easily with ABB’s suite of automation tools, allowing for more streamlined programming and system management.

Technical FAQs

What is the maximum number of I/O devices the SC540 can support?
The SC540 can support up to 16,000 I/O devices, making it suitable for large and complex industrial systems.
How does the SC540 handle communication with remote systems?
The module is equipped with dual Ethernet ports, enabling fast and secure communication with remote systems and devices.
What software is required to program the SC540?
The SC540 is programmed using ABB Automation Builder, an intuitive environment designed for configuring, programming, and maintaining ABB automation systems.
Is the SC540 suitable for hazardous environments?
The SC540 has an operating temperature range from -20°C to 60°C, making it robust enough for most industrial environments. However, specific certifications may be required for hazardous areas.
Can I expand my SC540 system with additional modules?
Yes, the SC540 is designed to be easily expanded with additional I/O modules, communication modules, and other ABB devices for greater flexibility and scalability.
What communication protocols does the SC540 support?
The SC540 supports a range of industrial protocols, including Ethernet/IP, Modbus TCP, and Profibus, ensuring compatibility with a wide range of devices and systems.
What is the power requirement for the SC540?
The module operates on a 24V DC power supply, which is standard for many industrial automation systems.
Can the SC540 be used in real-time control applications?
Yes, the SC540 is designed to handle real-time data collection and control, making it ideal for mission-critical applications in various industries.
Does the SC540 have any built-in redundancy features?
While the SC540 is not inherently redundant, it can be configured with redundant communication and power supply modules to enhance system reliability.
How does the SC540 ensure data security?
The SC540 supports encrypted communication protocols and provides robust security features to protect sensitive data in industrial systems.
