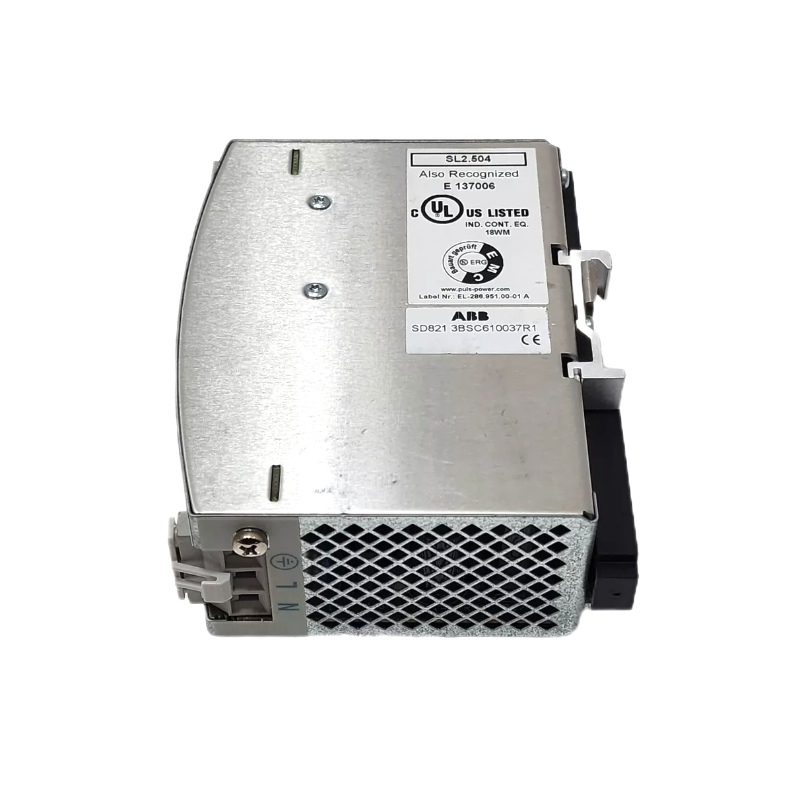

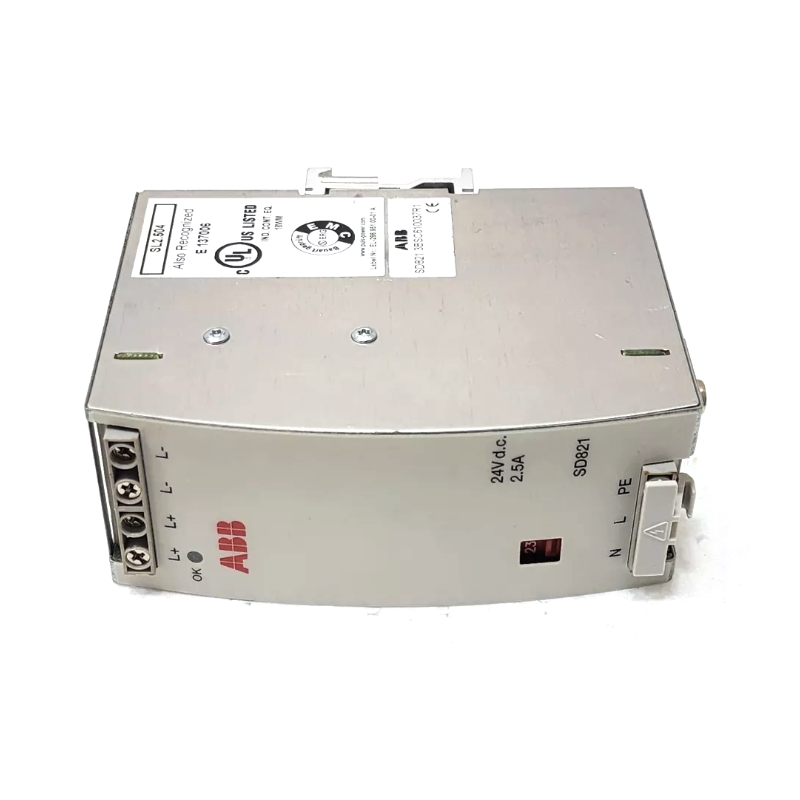

The ABB SD821 Control System Module is a high-performance industrial automation solution designed for advanced process control and large-scale automation systems. As part of ABB's SD800 Series, the SD821 offers robust processing power, extensive I/O capabilities, and seamless integration into ABB's broader automation ecosystem. This module is particularly suited for industries such as power generation, chemical processing, manufacturing, and utilities, where precision, reliability, and scalability are essential.

The SD821 stands out with its versatility, supporting both complex industrial automation systems and distributed control applications. Whether used in energy management systems, manufacturing lines, or critical infrastructure, the SD821 is engineered to provide real-time control, ensure system reliability, and optimize overall operational performance.

Technical Specifications

Specification	Value
Model	ABB SD821
Type	Control System Module
Processor	3.0 GHz Quad-core
Memory	128MB User Memory, 64MB Data Memory
Ethernet Ports	2 x 10/100/1000 Mbps Ethernet Ports
I/O Capacity	Up to 75,000 I/O devices supported
Power Supply	24V DC
Operating Temperature	-20°C to 80°C (-4°F to 176°F)
Dimensions (WxHxD)	9.00" x 13.00" x 5.00"
Weight	7.0 lbs (3.18 kg)

Recommended Related Models

ABB SD820 – A similar model in the SD800 series, ideal for less demanding applications that require fewer I/O and simpler processing capabilities.
ABB SD830 – A more advanced model designed for extremely large-scale automation systems with even higher processing speeds and I/O capacities.
ABB S900 I/O Series – Flexible I/O modules for scalable systems with remote and local installation options.
ABB PM820 Power Meter – Designed for real-time energy monitoring and control in industrial and process applications.

Popular ABB Models

ABB SD800 Series Controllers – A versatile and reliable range of controllers for industrial automation.
ABB AC500 Modular Controllers – Modular controllers designed for complex and large-scale automation systems.
ABB S900 I/O Modules – A series of I/O modules suitable for high-performance automation applications.
ABB AC800M Controller – A high-end controller designed for process and batch control in large industries.
ABB Robotics Controllers – Controllers tailored for robotic systems in manufacturing and assembly.
ABB S800 I/O Modules – Modular I/O modules for distributed and remote control applications.
ABB PM800 Power Meters – Advanced power meters for energy monitoring and control.
ABB DCS (Distributed Control Systems) – Integrated control systems for managing large-scale, distributed industrial processes.
ABB Fieldbus Modules – Communication modules for integrating field devices with control systems.
ABB FDT DTM Software – Software used for integrating and managing field devices within control systems.

Applications

The ABB SD821 Control System Module excels in a variety of applications requiring robust control, real-time data processing, and scalability:

Manufacturing Automation: Ideal for controlling automated production lines, assembly systems, robotic arms, and packaging processes, improving efficiency and reducing downtime.
Process Control: Applied in industries like chemicals, pharmaceuticals, and food processing, where precise control of variables like temperature, flow, and pressure is essential for safety and quality.
Power Generation and Distribution: Used in power plants, smart grids, and energy distribution networks to optimize power flow, monitor performance, and improve energy efficiency.
Water Treatment Systems: Controls water filtration, treatment plants, and pumping stations, ensuring reliable and efficient operations.
Building Automation: Applied in the management of HVAC, lighting, and security systems in commercial buildings, contributing to energy savings and operational efficiency.

Advantages

High-Speed Processing: The SD821 features a 3.0 GHz quad-core processor, delivering exceptional processing power for real-time data processing and decision-making.
Large I/O Capacity: With support for up to 75,000 I/O devices, the SD821 is designed to handle large-scale industrial systems with extensive data throughput requirements.
Flexible Integration: Dual Ethernet ports and support for multiple communication protocols (Ethernet/IP, Modbus TCP, Profibus, CANopen) ensure seamless integration with various devices and systems.
Extended Operating Temperature: The SD821 operates in a broad temperature range from -20°C to 80°C, ensuring reliable performance in extreme industrial environments.
Scalable Architecture: Its modular design allows easy expansion with additional I/O modules and communication modules, adapting to growing automation needs.
Energy Management Support: Integrating with ABB’s power monitoring systems, the SD821 helps optimize energy consumption, reduce costs, and enhance sustainability.

Technical FAQs

How many I/O devices can the SD821 support?
The SD821 can support up to 75,000 I/O devices, making it suitable for large and complex industrial systems.
What communication protocols are supported by the SD821?
The SD821 supports Ethernet/IP, Modbus TCP, Profibus, and CANopen, ensuring compatibility with a wide range of industrial devices and control systems.
Is the SD821 suitable for use in extreme environments?
Yes, the SD821 can operate in temperatures ranging from -20°C to 80°C, making it ideal for use in extreme conditions, including high-temperature industrial environments.
What is the power supply requirement for the SD821?
The SD821 operates on a 24V DC power supply, which is standard for most industrial control systems.
Can the SD821 be expanded with additional I/O modules?
Yes, the SD821 features a modular architecture, allowing for easy expansion with additional I/O and communication modules as required.
What software is used to configure the SD821?
The SD821 is configured and programmed using ABB Automation Builder, which provides a user-friendly interface for system design, configuration, and maintenance.
How does the SD821 ensure real-time data processing?
With its 3.0 GHz quad-core processor and large memory capacity (128MB user memory and 64MB data memory), the SD821 can handle large amounts of data quickly and efficiently, ensuring real-time control.
What is the memory capacity of the SD821?
The SD821 has 128MB of user memory and 64MB of data memory, offering ample space for storing system configurations, programs, and operational data.
Can the SD821 be used for remote monitoring and diagnostics?
Yes, with its dual Ethernet ports, the SD821 supports remote monitoring and diagnostics, enabling users to manage and troubleshoot systems from any location with network access.
What is the physical size of the SD821 module?
The SD821 measures 9.00" x 13.00" x 5.00" and weighs 7.0 lbs (3.18 kg), making it a compact and durable solution for industrial applications.
