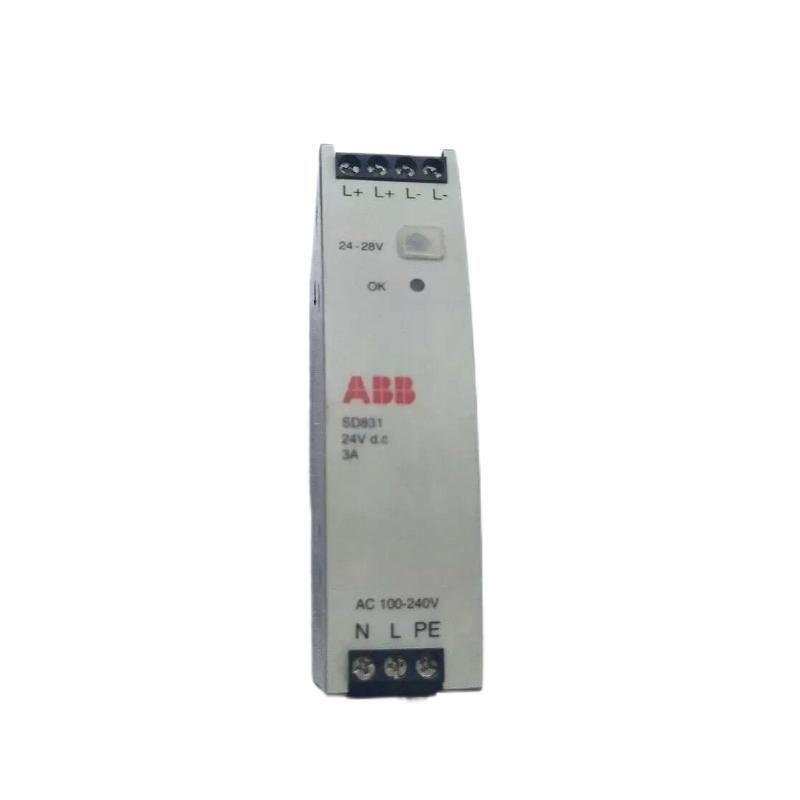

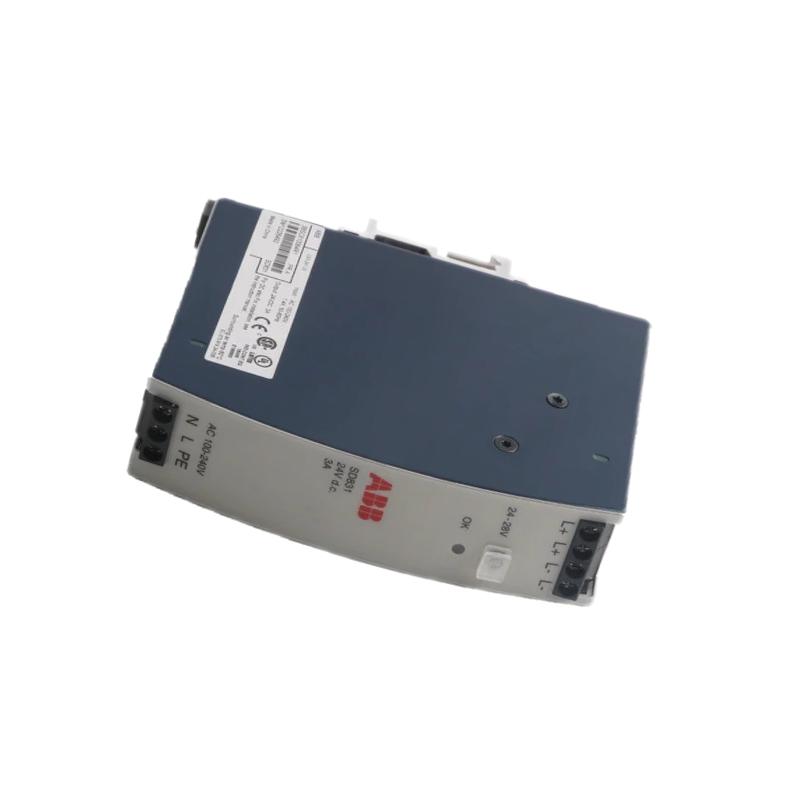

SD831 3BSC610064R1 1 SD831 3BSC610064R1 2 SD831 3BSC610064R1 3 SD831 3BSC610064R1 4

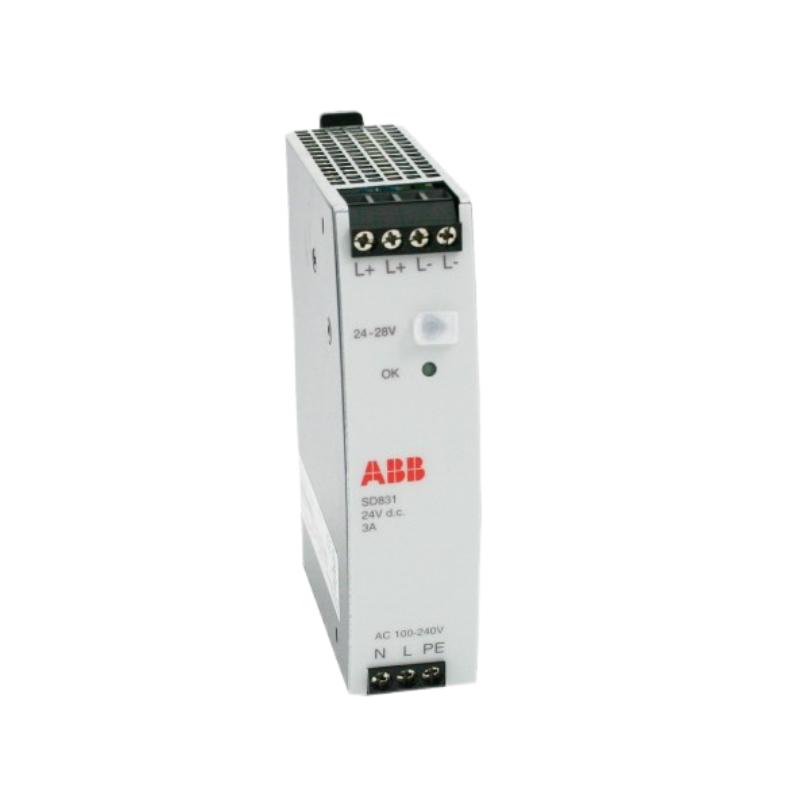

The ABB SD831 Power Supply Module is a robust, high-efficiency solution designed for demanding industrial automation systems. Offering consistent 24V DC output, this module ensures uninterrupted power delivery for critical control applications. Engineered for reliability and versatility, the SD831 is ideal for a wide range of industrial sectors, from manufacturing plants to energy systems and material handling.

With its compact design, superior protection features, and seamless integration with ABB’s extensive automation portfolio, the SD831 provides a cost-effective and long-lasting power solution. Whether you are powering control systems, robotics, or automated machinery, this power supply module supports your operations with high efficiency and minimal downtime.

Technical Specifications

Specification	Details
Model	SD831 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	8A
Efficiency	94% (at full load)
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Weight	2.0 kg (4.4 lbs)
Dimensions (W x H x D)	125 x 140 x 120 mm (4.92 x 5.51 x 4.72 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

To enhance system performance and expand your power delivery solutions, consider these related ABB products:

ABB SD850: High-capacity power supply module for larger systems.
ABB SD820: Compact, efficient power supply for smaller applications.
ABB SD890: Advanced power supply module with integrated monitoring features.
ABB DCS 800 Series: Robust industrial control and power management systems.
ABB PM850: Power protection module designed to safeguard your system.

Popular ABB Models

ABB’s diverse range of industrial solutions guarantees performance and reliability. Below are some other popular models that integrate seamlessly with the SD831:

ABB SD880: Heavy-duty power supply module for industrial applications.
ABB ACS580: Adjustable frequency drives for controlling motor-driven systems.
ABB IRB 6700: Industrial robots offering high precision and versatility.
ABB PPM500: Advanced power protection systems for critical infrastructure.
ABB MNS 3.0: Modular power distribution system for flexible electrical installations.

Applications

The ABB SD831 Power Supply Module is designed for use in a wide variety of industries and applications:

Automation Systems: Supplies stable power to PLCs, robotic arms, and control systems.
Manufacturing Plants: Ideal for ensuring continuous power for automated production lines.
HVAC Systems: Powers heating, ventilation, and air conditioning systems with reliability.
Material Handling: Supplies power to conveyors, sorters, and other automated machinery.
Energy Systems: Powers renewable energy systems and electrical grid management solutions.

Advantages

High Efficiency: With a 94% efficiency rating, the SD831 minimizes energy waste, lowering operating costs while being eco-friendly.
Compact Design: Despite its small size, the SD831 delivers powerful performance and fits easily into industrial setups.
Wide Input Range: The SD831 supports input voltages from 85-265 VAC, making it suitable for use worldwide.
Advanced Protection: Built-in overvoltage, overcurrent, short circuit, and thermal protection ensures safe operation.
Easy Installation: The DIN rail mounting system simplifies installation in control panels or industrial cabinets.
Long-Term Durability: Engineered for longevity, the SD831 is designed to handle the demands of continuous operation in harsh environments.

Technical FAQs

What is the input voltage range for the ABB SD831?
- The SD831 supports an input voltage range of 85-265 VAC, making it ideal for global applications.
What is the efficiency rating of the SD831 power supply?
- The module provides an efficiency of 94% at full load, optimizing energy consumption.
Is the ABB SD831 suitable for use in outdoor environments?
- The SD831 is designed for industrial indoor use. It should be placed in an enclosure when used in outdoor conditions.
How is the SD831 mounted?
- The SD831 uses a standard DIN rail mounting system, ensuring quick and easy installation in control panels.
What protection features does the SD831 include?
- The module includes overvoltage, overcurrent, thermal protection, and short-circuit protection for maximum safety.
What is the output voltage of the SD831?
- The SD831 provides a stable 24V DC output with a tolerance of ±1%.
Can I use the SD831 in a high-temperature environment?
- The SD831 operates within a temperature range of -10°C to 70°C (14°F to 158°F), making it suitable for a wide variety of industrial environments.
Is there a higher-capacity version of the SD831?
- Yes, ABB offers the SD850 for larger-scale applications that require higher power output.
What is the weight of the SD831?
- The SD831 weighs 2.0 kg (4.4 lbs), offering a compact and lightweight design.
Is the SD831 compatible with other ABB automation systems?
- Yes, the SD831 is fully compatible with ABB's range of industrial automation products, allowing for easy integration into existing systems.
