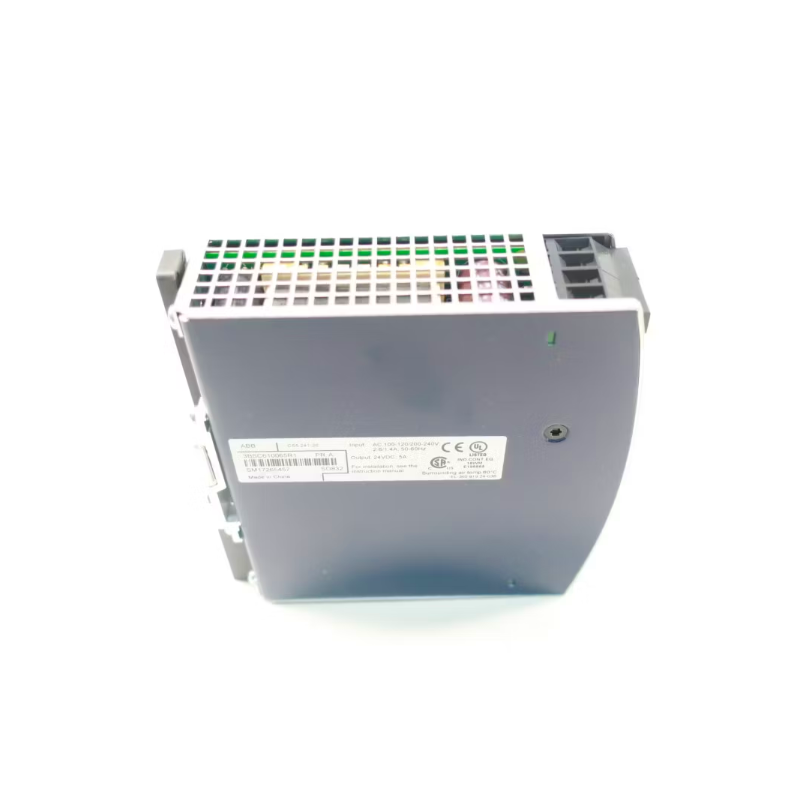

The ABB SD832 Power Supply Module is a high-performance, energy-efficient power solution designed to meet the demands of modern industrial automation systems. With its reliable 24V DC output, the SD832 ensures that your critical control systems and machinery receive consistent, high-quality power, contributing to smooth and uninterrupted operations across a wide range of industrial applications.

The SD832 is built with advanced protection features and robust construction, making it an ideal choice for demanding environments where reliability and durability are paramount. Whether you're working with automated production lines, material handling systems, or energy management setups, this power supply module offers the flexibility and reliability needed to keep your operations running efficiently and safely.

Technical Specifications

Specification	Details
Model	SD832 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	10A
Efficiency	95% (at full load)
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Weight	2.2 kg (4.85 lbs)
Dimensions (W x H x D)	150 x 160 x 130 mm (5.91 x 6.30 x 5.12 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit, Surge Protection
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

To complement the ABB SD832 and enhance the performance of your automation system, consider the following related models:

ABB SD850: A higher-capacity power supply module for larger industrial systems.
ABB SD820: Compact, space-saving power supply for smaller industrial applications.
ABB SD890: Power supply module with integrated monitoring features and real-time diagnostics.
ABB DCS 800 Series: Industrial control solutions with advanced power management features.
ABB PM850: Power protection module that ensures the safety and stability of your automation system.

Popular ABB Models

ABB offers a comprehensive range of power supplies, automation systems, and industrial equipment, known for their quality and reliability. Below are some popular models in their portfolio:

ABB SD880: A rugged power supply module suitable for heavy-duty industrial applications.
ABB ACS580: Variable frequency drives designed for energy-efficient motor control.
ABB IRB 6700: A high-performance industrial robot for precise manufacturing tasks.
ABB PPM500: A power protection module designed to protect critical infrastructure.
ABB MNS 3.0: Modular power distribution system for flexible and efficient electrical installations.

Applications

The ABB SD832 Power Supply Module is versatile and can be used in a variety of industrial applications:

Automation Systems: Supplies power to PLCs, robotic systems, and process controllers in automated facilities.
Manufacturing Plants: Ensures uninterrupted power for automated production lines, assembly machines, and other equipment.
Material Handling: Ideal for powering conveyors, sorters, and automated material handling systems.
HVAC Systems: Reliable power supply for heating, ventilation, and air conditioning systems in industrial and commercial buildings.
Energy Management: Powers control systems in renewable energy projects, electrical grids, and energy distribution networks.

Advantages

High Efficiency: The SD832 operates at 95% efficiency at full load, significantly reducing energy consumption and operational costs while minimizing heat generation.
Advanced Protection: Built-in overvoltage, overcurrent, short circuit, thermal, and surge protection features safeguard your system from electrical faults, enhancing safety and system longevity.
Compact Design: Despite its high output power, the SD832 is compact and easy to install, saving valuable space in control panels.
Wide Input Voltage Range: With an input voltage range of 85-265 VAC, the SD832 is suitable for use in a variety of global markets with varying power supplies.
Durability: Designed to withstand harsh industrial environments, the SD832 operates reliably even in high-temperature conditions ranging from -10°C to 70°C (14°F to 158°F).
Easy Installation: The SD832 supports DIN rail mounting, simplifying installation and reducing setup time in industrial applications.
Environmentally Friendly: The module’s high efficiency and compliance with RoHS regulations make it an environmentally conscious choice for industrial power needs.

Technical FAQs

What is the input voltage range for the ABB SD832?
- The SD832 supports input voltages from 85-265 VAC, making it adaptable for different power grids worldwide.
What is the efficiency rating of the SD832 power supply?
- The SD832 operates with a 95% efficiency rating at full load, helping to reduce energy costs and minimize heat generation.
Does the SD832 have built-in protection features?
- Yes, it includes overvoltage, overcurrent, short circuit, thermal protection, and surge protection, ensuring safe and stable operation.
What is the output voltage of the SD832?
- The SD832 delivers a stable 24V DC output with a tolerance of ±1%, suitable for powering sensitive industrial equipment.
What is the weight and size of the SD832?
- The SD832 weighs 2.2 kg (4.85 lbs) and has dimensions of 150 x 160 x 130 mm (5.91 x 6.30 x 5.12 inches), making it compact for industrial installations.
Can the SD832 be used in high-temperature environments?
- Yes, the SD832 operates in temperatures ranging from -10°C to 70°C (14°F to 158°F), making it ideal for use in a variety of industrial settings.
How is the SD832 mounted?
- The SD832 is designed for easy DIN rail mounting, streamlining the installation process in control cabinets or panels.
Is the SD832 suitable for use in outdoor environments?
- The SD832 is designed for indoor use, but it can be placed in an enclosure to protect it from environmental elements if used outdoors.
Can I use the SD832 for larger systems?
- The SD832 is designed for medium-sized industrial systems. For higher power requirements, ABB offers models like the SD850.
How does the SD832 compare to other ABB power supplies?
- Compared to other models, the SD832 offers a higher current output (10A) and superior protection features, making it ideal for applications that require reliable power with additional safety measures.
