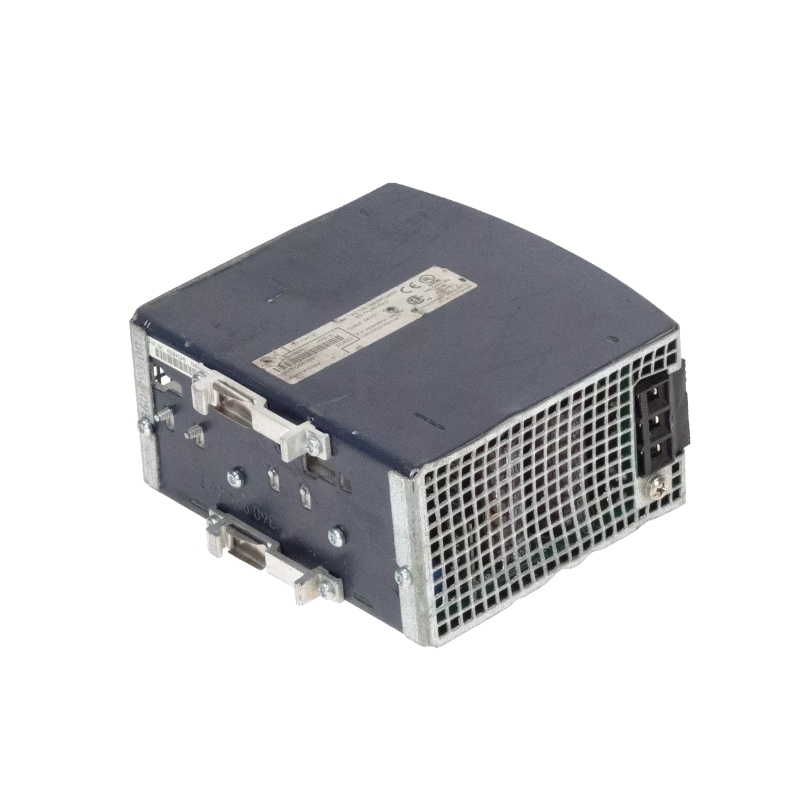

The ABB SD833 Power Supply Module is a high-performance, highly efficient power solution designed for demanding industrial automation systems. This module provides a stable and reliable 24V DC output, ensuring that critical control systems, machinery, and automated processes receive continuous, high-quality power. With its rugged construction and advanced protection features, the SD833 is built to operate in harsh industrial environments, making it ideal for both large-scale manufacturing and complex automation applications.

Designed with efficiency and reliability in mind, the SD833 power supply module delivers superior performance while minimizing energy consumption, helping reduce operational costs and improve system uptime. Whether you're managing a production line, powering control systems, or supporting energy management projects, the SD833 provides the power your operations need to stay efficient and secure.

Technical Specifications

Specification	Details
Model	SD833 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	12A
Efficiency	96% (at full load)
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Weight	2.5 kg (5.51 lbs)
Dimensions (W x H x D)	160 x 180 x 140 mm (6.30 x 7.09 x 5.51 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit, Surge Protection
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

For complete system integration and additional power solutions, consider these related ABB models:

ABB SD850: High-capacity power supply module, ideal for larger industrial systems requiring higher output.
ABB SD820: A compact power supply for smaller or space-constrained applications.
ABB SD890: Power supply module with advanced monitoring and diagnostic capabilities.
ABB DCS 800 Series: Industrial control solutions with integrated power management features.
ABB PM850: Power protection module that safeguards your automation and control systems.

Popular ABB Models

ABB provides a comprehensive portfolio of products tailored to industrial automation, energy management, and control. Here are a few other popular models:

ABB SD880: A heavy-duty power supply for industrial environments that require higher levels of reliability.
ABB ACS580: Energy-efficient variable frequency drives for controlling motor-driven systems.
ABB IRB 6700: High-performance industrial robot for precision manufacturing tasks.
ABB PPM500: A power protection solution designed to shield critical systems from electrical disruptions.
ABB MNS 3.0: A modular power distribution system that offers flexible and efficient electrical installations.

Applications

The ABB SD833 Power Supply Module is designed to power a wide range of applications in industries such as manufacturing, process automation, energy management, and more:

Automation Systems: Perfect for supplying power to PLCs, control systems, and robotic systems, ensuring smooth automation processes.
Manufacturing Plants: Guarantees reliable power for automated production lines, assembly systems, and packaging equipment.
Material Handling: Ideal for powering conveyors, sorters, and automated machinery in material handling systems.
HVAC Systems: Provides stable and efficient power to HVAC systems, ensuring proper temperature control and energy efficiency.
Energy Management: Powers control systems in renewable energy plants, electrical grids, and energy distribution networks.

Advantages

High Efficiency: Operating at a remarkable 96% efficiency at full load, the SD833 minimizes energy consumption and heat generation, which reduces operational costs and increases system longevity.
Compact and Durable Design: Despite its powerful output, the SD833 features a compact design that fits into confined spaces, while its rugged construction ensures it withstands harsh environments.
Advanced Protection: The SD833 is equipped with overvoltage, overcurrent, thermal protection, short circuit protection, and surge protection, enhancing the safety of your entire system.
Wide Input Voltage Range: It supports a broad input voltage range of 85-265 VAC, making it suitable for global applications and different power grid standards.
Easy Installation: The SD833 is designed for quick and easy installation using the standard DIN rail mounting system, reducing setup time.
Long-Term Reliability: Built for continuous operation, this module is engineered to perform reliably under harsh conditions, providing peace of mind for long-term industrial use.

Technical FAQs

What is the input voltage range for the ABB SD833?
- The SD833 supports input voltages ranging from 85-265 VAC, making it suitable for use in various global regions.
What is the efficiency rating of the SD833 power supply?
- The SD833 offers a high efficiency of 96% at full load, which helps reduce energy consumption and lower operational costs.
What protection features does the SD833 include?
- The SD833 is equipped with overvoltage, overcurrent, thermal, short circuit, and surge protection features to safeguard the system.
How much current can the SD833 supply?
- The SD833 can provide up to 12A of current at a stable 24V DC output, making it suitable for powering larger industrial systems.
Can I use the SD833 in outdoor environments?
- The SD833 is designed for indoor use, but it can be housed in an enclosure for protection against environmental factors if used outdoors.
What is the temperature range for the SD833?
- The module operates within a temperature range of -10°C to 70°C (14°F to 158°F), allowing it to function in a wide variety of industrial environments.
How is the SD833 mounted?
- The SD833 uses a standard DIN rail mounting system, which makes installation quick and easy in industrial control panels.
What is the weight and size of the SD833?
- The SD833 weighs 2.5 kg (5.51 lbs) and has dimensions of 160 x 180 x 140 mm (6.30 x 7.09 x 5.51 inches), making it compact and easy to integrate into your system.
Is the SD833 suitable for large industrial applications?
- Yes, with a 12A output, the SD833 is ideal for medium to large industrial systems that require a reliable and efficient 24V DC power supply.
Can the SD833 work with other ABB automation products?
- Yes, the SD833 is designed to integrate seamlessly with ABB’s extensive range of automation and control products.
