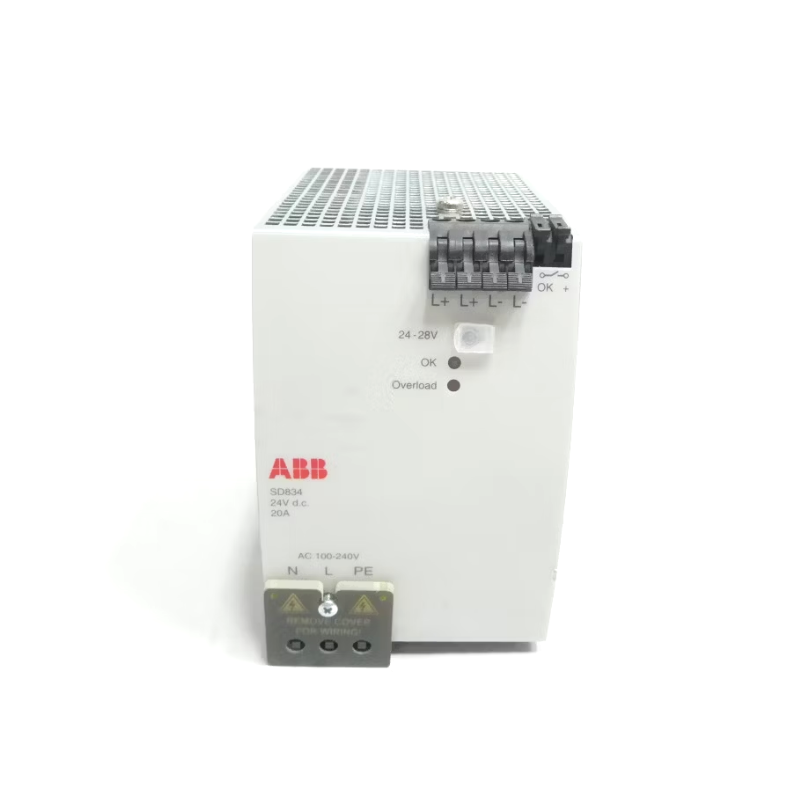

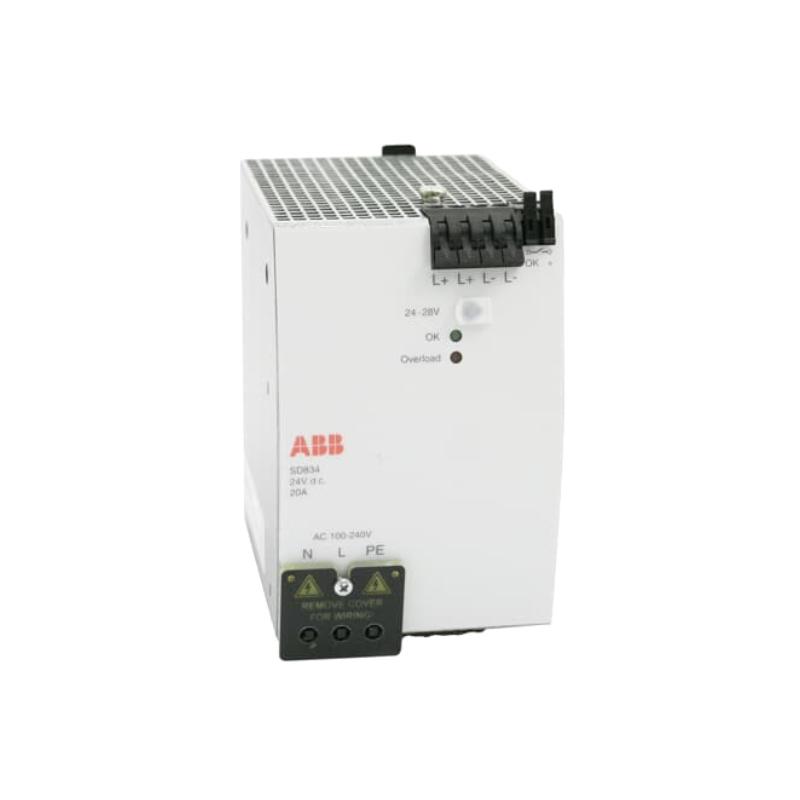

The ABB SD834 Power Supply Module is a highly reliable and energy-efficient solution designed for industrial automation systems that require consistent and stable 24V DC power. Built to meet the high demands of industrial environments, the SD834 is perfect for powering automation systems, control devices, and machinery in applications where continuous and reliable power is crucial.

Designed with a focus on safety, efficiency, and longevity, the SD834 features advanced protection mechanisms to safeguard both the module and the systems it powers. Whether you’re operating an automated production line, a material handling system, or a control process, the SD834 provides an ideal solution to ensure optimal system performance and reduce the risk of downtime.

Technical Specifications

Specification	Details
Model	SD834 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	15A
Efficiency	97% (at full load)
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Weight	3.0 kg (6.61 lbs)
Dimensions (W x H x D)	170 x 190 x 150 mm (6.69 x 7.48 x 5.91 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit, Surge Protection
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

To complement the ABB SD834 and optimize your industrial automation system, consider these related ABB power supply models:

ABB SD850: High-capacity power supply module for demanding industrial applications.
ABB SD820: Compact and efficient power supply module for smaller setups.
ABB SD890: Power supply with integrated monitoring capabilities, ideal for real-time diagnostics.
ABB DCS 800 Series: Power management and control systems designed for industrial environments.
ABB PM850: Power protection module for safeguarding automation systems against electrical faults.

Popular ABB Models

ABB offers a wide range of products known for reliability and cutting-edge performance. Some popular models in their portfolio include:

ABB SD880: Rugged power supply for heavy-duty industrial use.
ABB ACS580: Energy-efficient variable frequency drives for motor control.
ABB IRB 6700: High-performance industrial robot for automated manufacturing processes.
ABB PPM500: Power protection system designed to shield critical infrastructure.
ABB MNS 3.0: Modular power distribution system, designed for efficient and flexible installations.

Applications

The ABB SD834 Power Supply Module is designed for use in a variety of industrial applications, including:

Automation Systems: Powers programmable logic controllers (PLCs), robotic systems, and control devices, ensuring smooth and continuous operation.
Manufacturing Plants: Provides stable 24V DC power to automated production lines, assembly systems, and machinery.
Material Handling: Ideal for powering conveyors, sorters, automated storage, and retrieval systems.
HVAC Systems: Ensures the reliable operation of heating, ventilation, and air conditioning systems within large facilities.
Energy Management: Powers control systems in energy distribution networks, renewable energy systems, and electrical grids.

Advantages

High Efficiency: The SD834 operates at a remarkable 97% efficiency at full load, reducing energy consumption and minimizing heat generation, which helps lower operational costs.
Robust Protection Features: Includes overvoltage, overcurrent, short circuit, thermal protection, and surge protection to safeguard both the power supply module and the connected systems.
Compact and Durable: Despite its high output, the SD834 is compact and rugged, designed to withstand demanding industrial environments and ensure long-term reliability.
Wide Input Voltage Range: The SD834 can operate within a broad input voltage range of 85-265 VAC, making it suitable for use in a variety of global markets.
Easy Installation: The module is compatible with standard DIN rail mounting systems, simplifying installation in control panels or machinery enclosures.
Long-Term Reliability: Designed for continuous operation, the SD834 is engineered to perform reliably in high-demand applications, contributing to minimized downtime and increased system uptime.

Technical FAQs

What is the input voltage range for the ABB SD834?
- The SD834 supports an input voltage range of 85-265 VAC, allowing it to be used in different regions with varying power standards.
What is the efficiency rating of the SD834 power supply?
- The SD834 delivers an impressive 97% efficiency at full load, helping to reduce energy costs and improve overall system performance.
What protection features does the SD834 include?
- The SD834 includes overvoltage, overcurrent, short circuit, thermal protection, and surge protection, ensuring the safety of both the module and connected equipment.
How much current can the SD834 supply?
- The SD834 provides up to 15A of current, making it ideal for medium to large industrial systems requiring high power output.
Can the SD834 be used outdoors?
- The SD834 is designed for indoor use, but can be housed in an enclosure to protect it from environmental factors when used outdoors.
What is the temperature range for the SD834?
- The SD834 operates within a temperature range of -10°C to 70°C (14°F to 158°F), making it suitable for a variety of industrial environments.
How is the SD834 mounted?
- The SD834 uses a DIN rail mounting system, which makes installation quick and easy in industrial control panels or cabinets.
What are the dimensions and weight of the SD834?
- The SD834 weighs 3.0 kg (6.61 lbs) and has dimensions of 170 x 190 x 150 mm (6.69 x 7.48 x 5.91 inches), offering a compact form factor for high-power applications.
Is the SD834 suitable for large systems?
- Yes, with a 15A output, the SD834 is ideal for large industrial systems, automation projects, and energy management solutions that require reliable and efficient power.
Can I integrate the SD834 with other ABB systems?
- Yes, the SD834 is fully compatible with a wide range of ABB automation products, making integration seamless for more complex setups.
