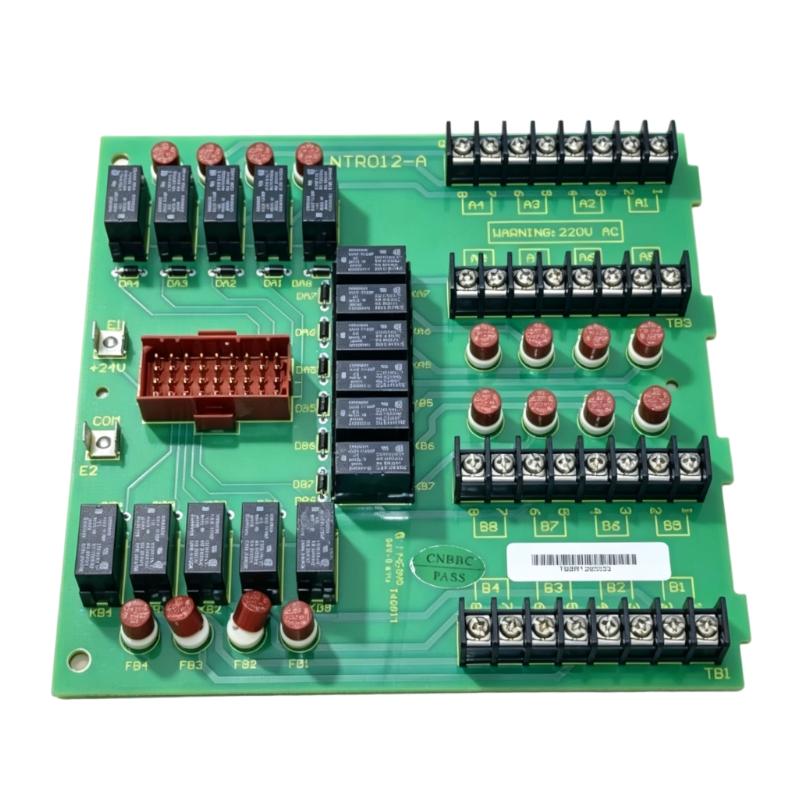

ABB Bailey NTRO12-A analog input terminal board troubleshooting should start with signal tracing from the field device to the control system instead of replacing components immediately. Most terminal board related faults are caused by wiring errors, loose connections, signal interference, or incorrect channel identification.

ABB Bailey NTRO12-A Analog Input Terminal Board Fault Symptoms

Typical symptoms include:

• Analog value unavailable
• Incorrect measurement reading
• Signal suddenly changes
• Multiple channels show abnormal values
• Intermittent process alarms

Field case:

A power plant monitoring system reported unstable temperature measurements after routine cabinet maintenance.

Observed conditions:

• Control system communication normal
• Several analog points unstable
• Field instruments operating normally

The maintenance team initially suspected:

• Analog input module failure
• Instrument transmitter aging

Engineers started diagnosis from the terminal interface.

ABB Bailey NTRO12-A Fault Diagnosis Process and Signal Analysis

The troubleshooting path:

Field Sensor
      |
      |
Instrument Cable
      |
      |
NTRO12-A Terminal Board
      |
      |
Control Input Channel
      |
      |
Operator Display

Engineers checked:

1. Field transmitter output
2. Terminal connections
3. Cable continuity
4. Control system input value

Test results:

• Transmitter output: Normal
• Cable continuity: Normal
• Terminal connection: Unstable

The fault area was narrowed to the connection point.

ABB Bailey NTRO12-A Terminal Connection Fault Investigation

Detailed inspection found:

• One terminal screw was not fully tightened after maintenance work
• Vibration caused intermittent contact

Measured condition:

Before repair:

• Signal current: 10.8–12.1 mA fluctuation

After repair:

• Signal current: Stable 11.6 mA

The loose connection caused unstable analog readings.

The NTRO12-A terminal board itself was not damaged.

ABB Bailey NTRO12-A Signal Interference Fault Diagnosis

Another common failure pattern is analog noise.

Symptoms:

• Measurement jumps randomly
• No hardware alarm
• Signal changes during motor operation

Diagnostic method:

Compare:

• Field transmitter output
• Terminal board input
• Control system value

Example:

Before correction:

• Transmitter output: Stable
• Control value: Fluctuating

Investigation:

• Signal cable installed close to power switching equipment
• Shield grounding incorrect

After correction:

• Analog signal stabilized
• Process monitoring returned to normal

ABB Bailey NTRO12-A Root Cause Analysis and System Recovery

A complete Fault Diagnosis process should identify the actual failure mechanism.

Example:

Normal condition:

• Correct terminal wiring
• Stable analog signals

Failure condition:

• Maintenance activity changed terminal connection
• Contact resistance increased
• Measurement became unstable

Final engineering conclusion:

The NTRO12-A terminal board was operating normally.

The issue originated from external wiring quality.

ABB Bailey NTRO12-A Troubleshooting Repair and Validation

Corrective actions:

Terminal Inspection

Completed:

• Retightened connections
• Verified terminal identification
• Checked cable condition

Signal Validation

Tested:

• Field signal
• Terminal output
• Control system value
• Alarm response

Final result:

Before repair:

• Incorrect process readings
• False alarms generated

After repair:

• Stable analog measurement
• Accurate process monitoring
• Reliable system operation restored

ABB Bailey NTRO12-A Common Fault Diagnosis Methods

Analog Signal Missing

Possible causes:

• Open cable
• Incorrect terminal connection
• Instrument power loss

Diagnosis:

• Measure field signal
• Check terminal continuity
• Verify instrument status

Analog Value Fluctuation

Possible causes:

• Loose terminal
• Electrical interference
• Poor shielding

Diagnosis:

• Inspect wiring
• Check grounding
• Compare field and control values

Incorrect Channel Reading

Possible causes:

• Wrong terminal assignment
• Incorrect loop identification
• Configuration mismatch

Diagnosis:

• Compare drawings
• Verify channel mapping
• Perform loop test

ABB Bailey NTRO12-A Long-Term Maintenance Strategy

For reliable analog signal operation:

• Maintain updated terminal drawings
• Label all field cables clearly
• Inspect terminal tightness periodically
• Record normal signal values
• Review shielding practices during modifications

A practical engineering rule:

When performing ABB Bailey NTRO12-A Analog Input Terminal Board Troubleshooting, verify the physical signal path before replacing electronic components.

Recommended troubleshooting sequence:

Field instrument check → Cable inspection → NTRO12-A terminal verification → Input channel test → Configuration review → Final loop validation.
