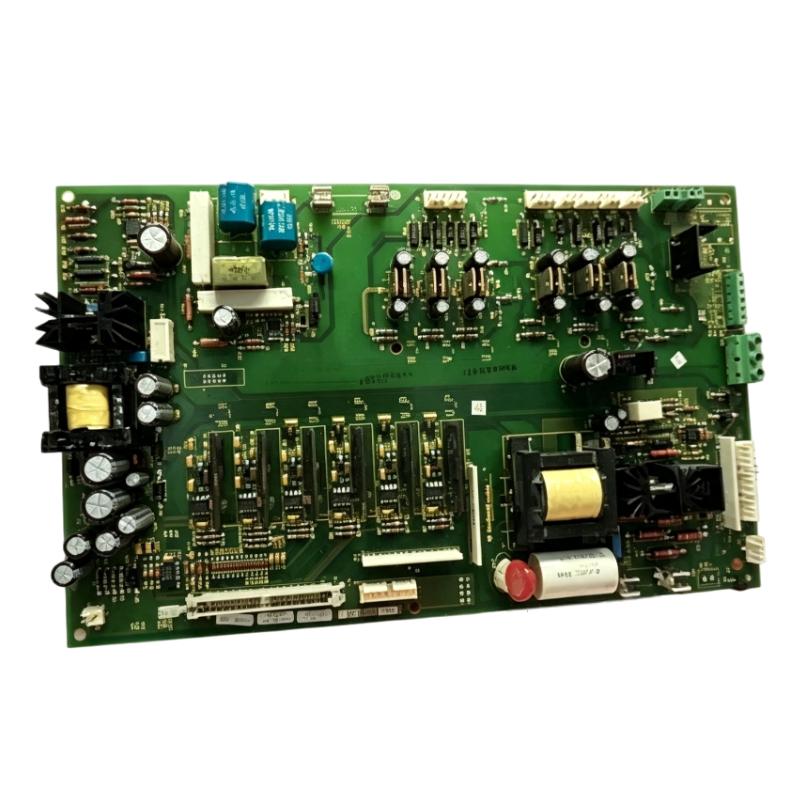

Allen-Bradley 1336-BDB-SP31C gate driver faults are commonly caused by missing gate signals, IGBT power module problems, feedback circuit errors, connector failures, or unstable control power rather than immediate gate driver board failure. Effective troubleshooting requires analyzing the entire inverter switching system.

This article describes a field case where an Allen-Bradley 1336 drive repeatedly generated overcurrent faults after maintenance.

Allen-Bradley 1336-BDB-SP31C Gate Driver Fault Symptoms

Typical symptoms include:

Drive trips immediately after start command
Motor does not rotate
Overcurrent alarm appears
DC bus fault occurs
Drive resets but fails again

Field case:

A production machine stopped after replacing several aging drive components.

Initial observations:

Control panel worked normally
Parameter access was available
Motor output failed

The maintenance team suspected:

Gate driver damage
IGBT failure
Main control board problem

Engineers started troubleshooting from the inverter switching path.

Allen-Bradley 1336-BDB-SP31C Fault Diagnosis Process and Signal Analysis

The diagnostic path:


Control Board
       |
       |
1336-BDB-SP31C Gate Driver
       |
       |
IGBT Power Section
       |
       |
Motor

Engineers checked:

Fault history
Gate drive signals
Power module condition
Control supply voltage

Diagnostic results:

Control command: Normal
Gate driver power: Normal
Output stage response: Abnormal

The problem was located in the power switching section.

Allen-Bradley 1336-BDB-SP31C Gate Signal Failure Investigation

Field measurements:

Before repair:

Control voltage: Normal
Gate command: Present
Motor output current: Abnormal
Fault time: Immediately after enable

Engineers inspected:

Gate signal wiring
IGBT condition
Feedback circuits

The investigation found:

One IGBT power module had internal short damage

The damaged power device caused abnormal feedback to the gate driver protection circuit.

The 1336-BDB-SP31C was responding correctly by disabling the output.

Allen-Bradley 1336-BDB-SP31C Root Cause Analysis and Recovery

The final root cause was power semiconductor failure.

Original condition:

Drive operated normally
Power switching was stable

Failure condition:

IGBT internal damage occurred
Gate protection activated
Drive output was blocked

Engineering conclusion:

The gate driver was not the primary failure source.

The protection system prevented further damage.

Allen-Bradley 1336-BDB-SP31C Troubleshooting Repair and System Recovery

Corrective actions:

Power Stage Inspection

Performed:

Tested IGBT module condition
Checked output terminals
Verified insulation resistance

Gate Driver Verification

Checked:

Gate pulse transmission
Feedback response
Control communication

Final results:

Before repair:

Drive could not start
Protection faults repeated

After repair:

Power switching restored
Motor started correctly
Production equipment recovered

Allen-Bradley 1336-BDB-SP31C Common Fault Patterns and Diagnostic Methods

Gate Pulse Missing Fault

Symptoms:

Drive enabled but no output

Diagnosis:

Check gate signal interface
Verify control board communication
Inspect connectors

Immediate Overcurrent Fault

Symptoms:

Trip occurs instantly after start

Diagnosis:

Test IGBT module
Check output short circuit
Verify gate waveform

Intermittent Gate Fault

Symptoms:

Random shutdowns
Fault disappears after reset

Diagnosis:

Inspect connectors
Check control power stability
Analyze vibration effects

Allen-Bradley 1336-BDB-SP31C Long-Term Maintenance Strategy

For reliable operation:

Inspect connectors during maintenance
Check cooling conditions
Monitor fault history
Verify power component condition
Maintain clean drive cabinets

A practical engineering rule:

“When troubleshooting an Allen-Bradley 1336-BDB-SP31C gate driver fault, check the IGBT power stage and feedback circuits before replacing the gate driver board.”

Recommended troubleshooting sequence:

Fault history review → Control power check → Gate signal measurement → Power module inspection → Feedback verification → Final drive test.
