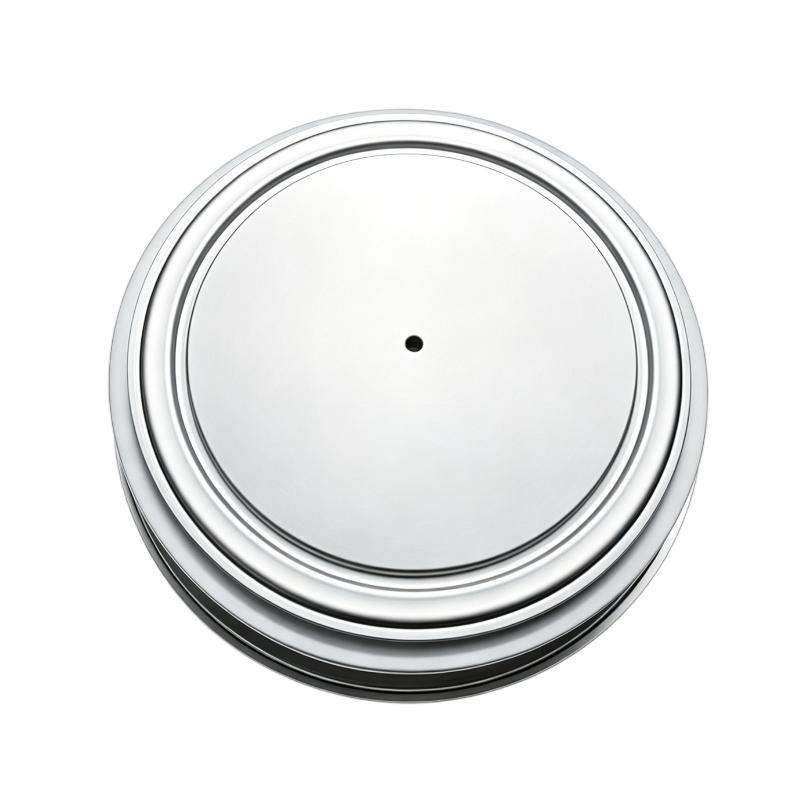

ABB 5STP4528X0001 troubleshooting should begin with the observed electrical behavior instead of assuming that the thyristor itself is defective. A high-power thyristor can be damaged by overcurrent, excessive temperature, surge energy, incorrect gate triggering, or faults elsewhere in the power circuit. Identifying the initiating condition is therefore essential for reliable repair.

ABB 5STP4528X0001 Fault Symptoms: Unexpected Conduction

A distinct failure pattern is unexpected conduction when the control system is not requesting the expected output.

Typical symptoms include:

• Load voltage remains higher than expected
• Output power does not follow the control command
• One phase carries abnormal current
• Semiconductor temperature rises unexpectedly
• Protection devices operate
• The PLC Controller indicates a normal command while the power stage behaves abnormally

The first question should be whether the thyristor is receiving an incorrect trigger or whether the power semiconductor has developed an internal failure.

That question separates the control-side investigation from the power-side investigation.

ABB 5STP4528X0001 Fault Diagnosis Process

A useful Fault Diagnosis model is:

Controller command → Gate driver → Thyristor → Load

Start by confirming what the controller is actually commanding.

If the PLC or converter controller is generating an incorrect firing command, replacing the thyristor will not correct the problem.

If the controller command is correct, examine the gate-driver output.

If the gate signal is also correct but the main circuit remains conductive when it should not, the thyristor and surrounding power circuit become the primary suspects.

This process avoids unnecessary replacement of expensive control boards.

ABB 5STP4528X0001 Troubleshooting for a Suspected Short Circuit

A failed power semiconductor may produce a condition in which the main power path remains conductive.

After the equipment has been safely isolated and discharged, the engineer can perform appropriate electrical tests according to the equipment maintenance procedure.

However, a simple resistance measurement should not be treated as a complete test of a high-power thyristor. The surrounding circuit can influence measurements, and semiconductor devices require suitable test methods.

At the same time, inspect the surrounding components for:

• Burn marks
• Damaged insulation
• Failed fuses
• Discolored terminals
• Damaged snubber components
• Loose connections
• Signs of overheating
• Cooling-system problems

The objective is to establish why the semiconductor failed, not merely to confirm that it is defective.

ABB 5STP4528X0001 Troubleshooting Case: Repeated Protection Trips

Consider a field case where a replacement 5STP4528X0001 is installed and the equipment immediately begins operating, but semiconductor protection trips again when the load is increased.

The initial assumption might be that the replacement device is defective.

A better diagnostic approach is to compare the following signals:

Firing command → Gate signal → Load current → Power-stage voltage

If the firing command and gate waveform remain stable but the current increases sharply when the load is connected, the engineer should investigate the load and power circuit before replacing the control system.

Possible causes include an abnormal downstream load, short circuit, incorrect circuit configuration, or a protection problem.

Repeated component replacement without this comparison can turn a single failure into a recurring maintenance problem.

ABB 5STP4528X0001 Gate Trigger Fault Troubleshooting

Another common fault pattern is intermittent power output.

The equipment may work normally for several minutes and then lose controlled output. After a restart, operation may temporarily return to normal.

In this situation, inspect the gate-control path rather than immediately changing the power semiconductor.

Check:

• Gate-driver connections
• Control connectors
• Wiring continuity
• Signal stability
• Electrical noise
• Grounding
• Firing timing
• Driver-board condition

An oscilloscope is particularly useful when safe access is available.

If the gate pulse disappears when the output disappears, the control path becomes the leading suspect. If the gate pulse remains stable while the power response disappears, the investigation should move toward the thyristor and main power circuit.

ABB 5STP4528X0001 Overheating Fault Diagnosis

A different failure mode is gradual overheating during normal operation.

This can occur without an immediate protection trip.

Record the load current and temperature trend rather than checking temperature only once.

For example, assume the operating current remains approximately constant while semiconductor temperature rises steadily. The investigation should then concentrate on:

• Heatsink performance
• Cooling airflow
• Thermal interface
• Mounting condition
• Electrical connection resistance
• Ambient temperature
• Abnormal conduction losses

If current simultaneously increases, the electrical load and power-stage condition should be investigated first.

The trend is often more useful than a single temperature reading.

ABB 5STP4528X0001 Repair Decision and Root-Cause Analysis

A confirmed defective 5STP4528X0001 should not automatically lead to immediate replacement without examining the original failure.

Before installing another device, determine:

Was there an overcurrent event?

Did the protection system operate correctly?

Was the cooling system operating normally?

Was the gate-driver output stable?

Did the connected load show abnormal behavior?

Were there signs of surge or electrical overstress?

These questions help distinguish primary semiconductor failure from secondary damage.

ABB 5STP4528X0001 Repair and Recovery Testing

After replacing the defective semiconductor, the repair should be validated gradually.

A practical recovery sequence is:

Power-stage inspection → control verification → controlled energization → reduced-load operation → temperature monitoring → normal-load validation

During the test, compare phase currents where applicable and watch for abnormal temperature differences.

A replacement that survives the first few seconds is not necessarily a successful repair. Some thermal and load-related faults only become visible after the equipment has operated under sustained conditions.

ABB 5STP4528X0001 Troubleshooting Checklist

The most effective troubleshooting strategy is to follow the signal and power path logically rather than replacing components based only on symptoms.

ABB 5STP4528X0001 Fault Diagnosis Long-Tail Keywords

ABB 5STP4528X0001 troubleshooting, ABB 5STP4528X0001 Fault Diagnosis, ABB 5STP4528X0001 repair, ABB 5STP4528X0001 thyristor fault, ABB 5STP4528X0001 overheating troubleshooting, ABB 5STP4528X0001 gate trigger fault, ABB 5STP4528X0001 short circuit diagnosis, ABB thyristor repair, ABB 5STP4528X0001 replacement, and ABB 5STP4528X0001 power-stage troubleshooting are relevant long-tail search terms for industrial maintenance engineers.

The key field principle is to identify the failure mechanism before replacing the component. A thyristor can be the failed part without being the original cause of the failure, and that distinction is often what determines whether the repair remains successful.
