Introduction

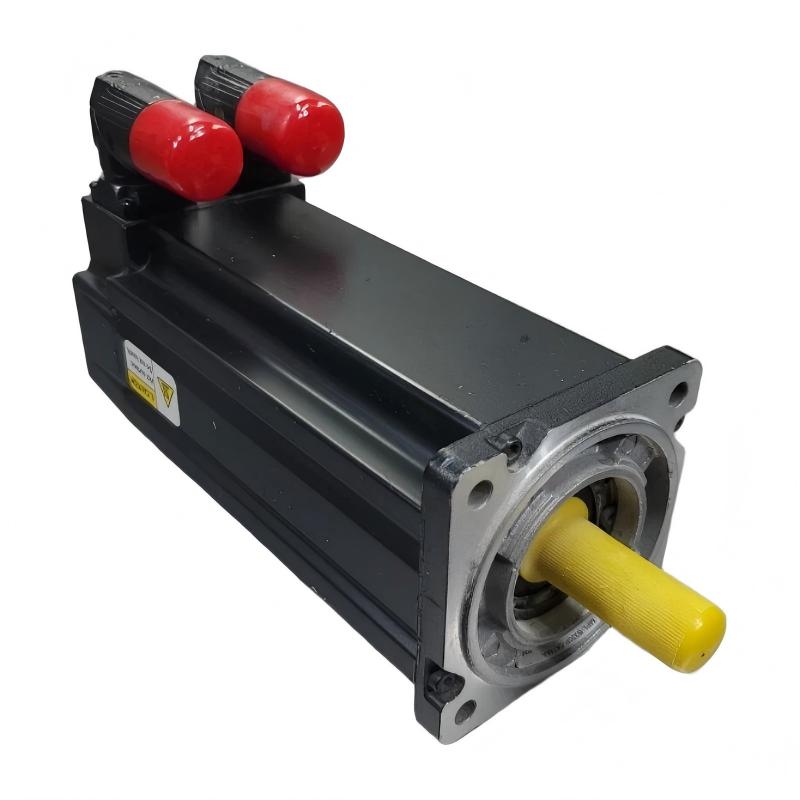

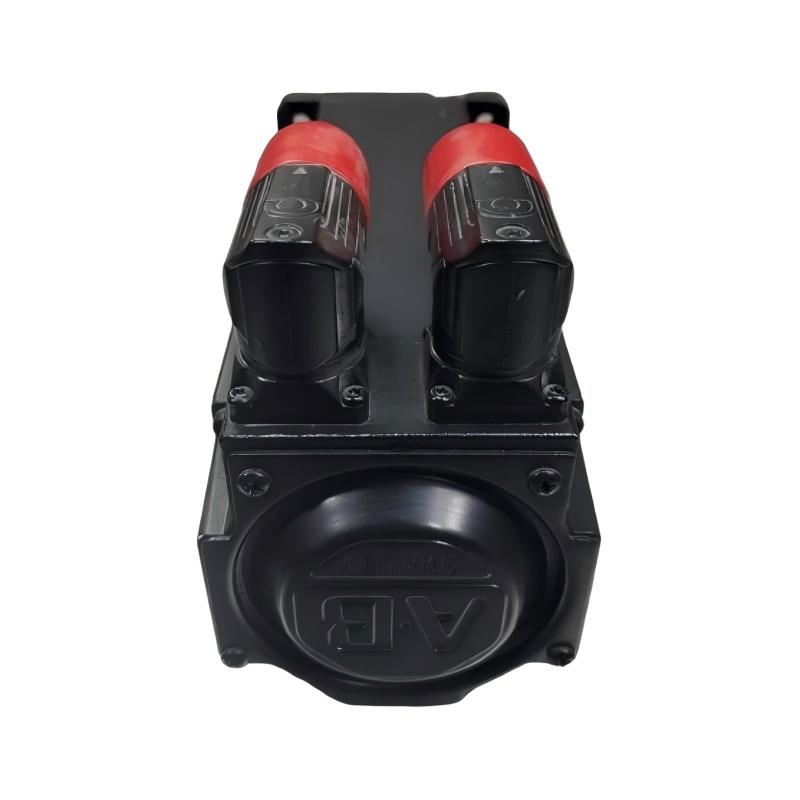

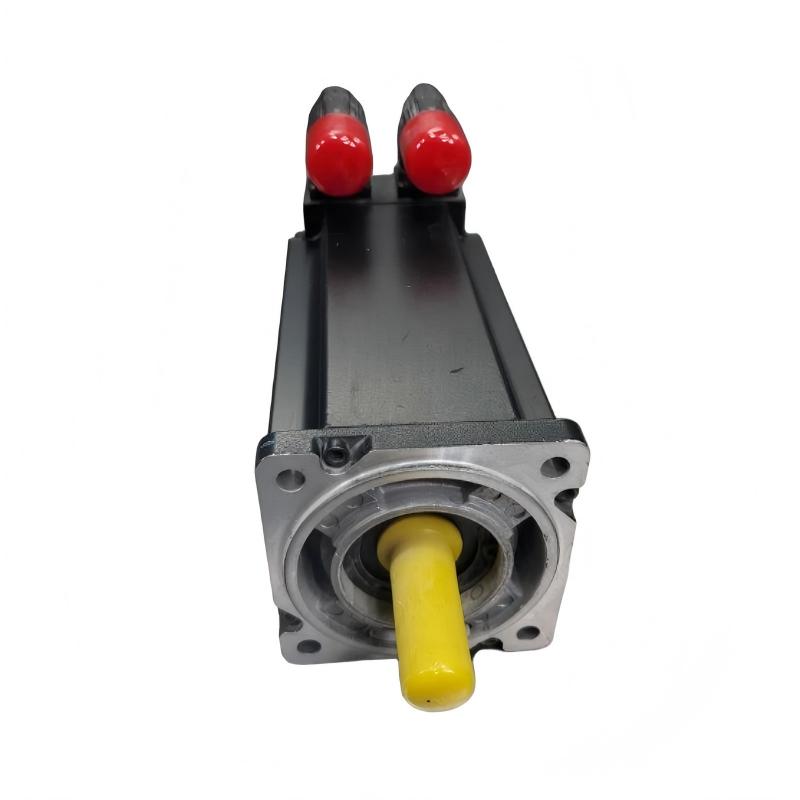

The Allen-Bradley MPL-B330P-SK74AA Servo Motor is part of the MP-Series family of industrial servo motors developed for automated motion-control applications. It is designed for machines that require repeatable movement and controlled dynamic response rather than basic open-loop motor operation.

The MPL-B330P-SK74AA has a 100 mm frame size and a specified weight of 4.60 kg (10.14 lb). Its compact form factor can be advantageous in machine designs where motor mounting space is restricted.

Typical applications include packaging equipment, assembly machines, material-handling systems, machine tools, robotics, printing equipment, and automated production lines. In a complete motion-control system, the motor works together with a compatible servo drive, feedback system, and controller to regulate the required motion profile.

For replacement applications, the complete catalog number should be confirmed before ordering. Motors with similar frame dimensions may have different electrical characteristics, feedback configurations, shaft arrangements, or system requirements.

Technical Specifications

Specification	Details
Brand	Allen-Bradley
Product Series	MP-Series
Model	MPL-B330P-SK74AA
Product Type	Servo Motor
Motor Family	MPL-B Series
Frame Size	100 mm
Application	Industrial Motion Control
Feedback	Servo feedback system
Installation	Machine-mounted servo axis
Weight	4.60 kg (10.14 lb)

The 100 mm frame size should be taken into account when planning the motor mounting arrangement. Before installation, verify the mounting interface, shaft dimensions, cable routing, feedback connections, and available mechanical clearance.

Recommended Related Models

Model	Product Type	Frame Size
MPL-B310P-SJ74AA	MP-Series Servo Motor	100 mm
MPL-B310P-SK72AA	MP-Series Servo Motor	100 mm
MPL-B310P-SK74AA	MP-Series Servo Motor	100 mm
MPL-B320P-HJ72AA	MP-Series Servo Motor	100 mm
MPL-B320P-HJ74AA	MP-Series Servo Motor	100 mm
MPL-B320P-HK72AA	MP-Series Servo Motor	100 mm
MPL-B320P-HK74AA	MP-Series Servo Motor	100 mm
MPL-B330P-SJ74AA	MP-Series Servo Motor	100 mm

Popular Related Models

Model	Product Type
MPL-B310P-SJ74AA	Allen-Bradley Servo Motor
MPL-B310P-SK72AA	Allen-Bradley Servo Motor
MPL-B310P-SK74AA	Allen-Bradley Servo Motor
MPL-B320P-HJ72AA	Allen-Bradley Servo Motor
MPL-B320P-HJ74AA	Allen-Bradley Servo Motor
MPL-B320P-HK72AA	Allen-Bradley Servo Motor
MPL-B320P-HK74AA	Allen-Bradley Servo Motor
MPL-B330P-SJ74AA	Allen-Bradley Servo Motor

Applications

The MPL-B330P-SK74AA is suitable for a variety of servo-driven industrial applications:

Application	Typical Function
Packaging Machines	Indexing, positioning, and synchronized motion
Assembly Systems	Repeatable component positioning
Material Handling	Controlled acceleration and movement
Machine Tools	Precision axis control
Robotics	Servo-driven motion axes
Printing Equipment	Speed and registration control
Production Machinery	Coordinated automated movement
Specialized Automation	Closed-loop motion control

The motor is especially useful where the machine requires frequent changes in speed, direction, or position rather than simple constant-speed operation.

Key Advantages

Accurate motion control
The MPL-B330P-SK74AA is designed for applications where controlled motor speed, torque, and position are important.

100 mm frame design
The 100 mm frame size provides a compact mechanical package for automated equipment where installation space is limited.

Responsive dynamic operation
The motor is appropriate for applications involving repeated acceleration, deceleration, indexing, and positioning.

Designed for integrated motion systems
The MP-Series architecture allows the motor to be incorporated into a suitable Allen-Bradley servo-control system.

Suitable for automated machinery
Its servo characteristics make it a good fit for packaging, assembly, material handling, machine tools, and other automated production equipment.

Useful for replacement projects
The MPL-B330P-SK74AA can be considered when maintaining or replacing an existing MP-Series servo motor, provided the electrical, mechanical, and feedback specifications match.

Technical FAQs

1. What is the Allen-Bradley MPL-B330P-SK74AA?
It is an Allen-Bradley MP-Series servo motor designed for industrial motion-control applications.

2. What is the frame size of the MPL-B330P-SK74AA?
The specified frame size is 100 mm.

3. What is the main function of this servo motor?
Its main function is to provide controlled rotary motion for applications requiring accurate speed, torque, and positioning.

4. Can the MPL-B330P-SK74AA be used for precision positioning?
Yes. When integrated with an appropriate servo drive and feedback system, it can be used for controlled and repeatable positioning applications.

5. Does the motor operate as part of a closed-loop system?
Yes. Servo applications normally use feedback information to allow the drive and controller to regulate motor movement accurately.

6. Can it be used for frequent acceleration and deceleration?
Yes. Servo motors are intended for dynamic motion profiles, including repeated acceleration, deceleration, stopping, and direction changes, within their applicable operating limits.

7. How should a compatible servo drive be selected?
The drive should be matched to the motor's electrical characteristics, feedback configuration, required control mode, and application performance requirements.

8. What should be checked before installing a replacement motor?
Verify the complete catalog number, electrical ratings, mounting arrangement, shaft configuration, feedback system, cables, and servo-drive compatibility.

9. What can cause servo motor faults?
Common causes can include incorrect wiring, feedback faults, excessive mechanical loading, poor tuning, overheating, drive problems, and incorrect configuration.

10. Is commissioning required after installing the motor?
Yes. The servo system should be configured and, where necessary, tuned to match the motor, drive, controller, and mechanical load before normal operation.
