Ingersoll Rand 47623609001 24900318 air filter installation requires correct replacement selection, sealing inspection, airflow direction verification, and compressor system maintenance procedures. In industrial compressed air systems, poor filter installation is one of the main reasons for increased pressure drop, reduced compressor efficiency, and premature contamination problems.

Ingersoll Rand 47623609001 24900318 Air Filter Application Overview

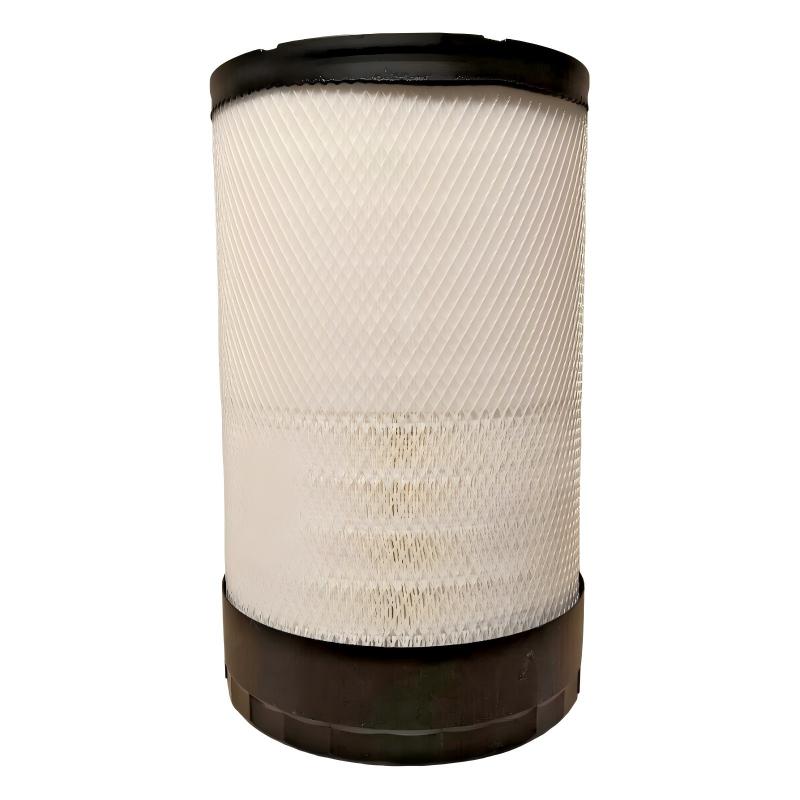

The Ingersoll Rand 47623609001 24900318 air filter is designed for compressed air equipment where clean intake air is essential for reliable compressor operation. The air filter protects internal compressor components by preventing dust, particles, and airborne contaminants from entering the compression system.

Typical applications include:

• Industrial air compressors
• Manufacturing production lines
• Pneumatic equipment systems
• Process automation plants
• Workshop compressed air networks
• Heavy-duty industrial machinery

The air filtration process directly affects:

• Compressor efficiency
• Internal component protection
• Operating temperature
• Energy consumption
• Maintenance intervals

A blocked or incorrectly installed filter can create higher intake resistance, causing the compressor to work harder and reducing overall system performance.

Ingersoll Rand 47623609001 24900318 Air Filter Technical Specifications

Before replacement, confirm the filter identification and mechanical dimensions.

The filter dimensions must match the original component to ensure correct sealing and airflow performance.

Using an incorrect filter element may create:

• Air leakage
• Reduced filtration efficiency
• Incorrect pressure drop
• Compressor performance issues

Ingersoll Rand 47623609001 24900318 Air Filter Replacement Preparation

Before starting the Installation Guide procedure, prepare the compressor system correctly.

Required checks:

• Stop compressor operation
• Disconnect electrical power
• Release internal pressure
• Confirm replacement filter model
• Inspect filter housing condition
• Clean surrounding area

Before removing the old filter, check its condition.

Common signs of filter contamination include:

• Darkened filter media
• Excessive dust accumulation
• Increased compressor loading time
• Reduced airflow performance

A practical maintenance approach is to record operating conditions before replacement so performance can be compared after installation.

Ingersoll Rand 47623609001 24900318 Air Filter Installation Procedure

The replacement process should focus on preventing contamination from entering the compressor system.

Installation sequence:

Shutdown → Remove Old Filter → Inspect Housing → Install New Filter → Seal Check → Restart Test

During installation:

1. Remove the existing air filter carefully.
2. Clean the filter housing sealing surface.
3. Inspect the gasket or sealing area.
4. Install the Ingersoll Rand 47623609001 24900318 filter correctly.
5. Confirm the filter is positioned securely.
6. Close the housing cover.
7. Restart the compressor and check operation.

Avoid touching the clean filter surface with contaminated gloves or tools.

Small particles introduced during replacement can reduce filtration performance.

Ingersoll Rand 47623609001 24900318 Air Filter Sealing Inspection

Proper sealing is critical after installation.

Check:

• Filter seating position
• Housing cover alignment
• Seal condition
• Air leakage points
• Fastener tightness

A filter that is installed without proper sealing may allow unfiltered air to bypass the filtration media.

This can result in:

• Compressor contamination
• Increased internal wear
• Reduced equipment reliability

In field maintenance, many “filter performance” problems are actually caused by installation sealing issues.

Ingersoll Rand 47623609001 24900318 Compressor Commissioning Check

After completing the Setup process, perform a commissioning inspection.

Verify:

Monitor compressor operation after replacement to confirm that the new filter restores normal airflow conditions.

Ingersoll Rand 47623609001 24900318 Field Installation Case

During one compressor maintenance project, operators reported that the machine required longer loading time and energy consumption had increased.

The maintenance team initially suspected a compressor control problem.

The engineer checked the system conditions:

• Compressor running current: Higher than normal
• Intake pressure drop: Increased
• Filter condition: Heavy contamination

After replacing the old filter with an Ingersoll Rand 47623609001 24900318 air filter, the pressure drop returned to normal and compressor operation stabilized.

The investigation showed that the problem was caused by restricted airflow, not a compressor controller failure.

This case demonstrates why air filter inspection should be part of regular compressor troubleshooting.

Ingersoll Rand 47623609001 24900318 Air Filter Maintenance Strategy

For long-term reliability, maintenance should include:

• Regular visual inspection
• Operating environment evaluation
• Dust condition monitoring
• Replacement interval tracking
• Compressor performance comparison

Harsh environments such as:

• Cement plants
• Metal processing factories
• Chemical production areas

may require more frequent inspection due to higher airborne contamination.

Ingersoll Rand 47623609001 24900318 Installation Troubleshooting
