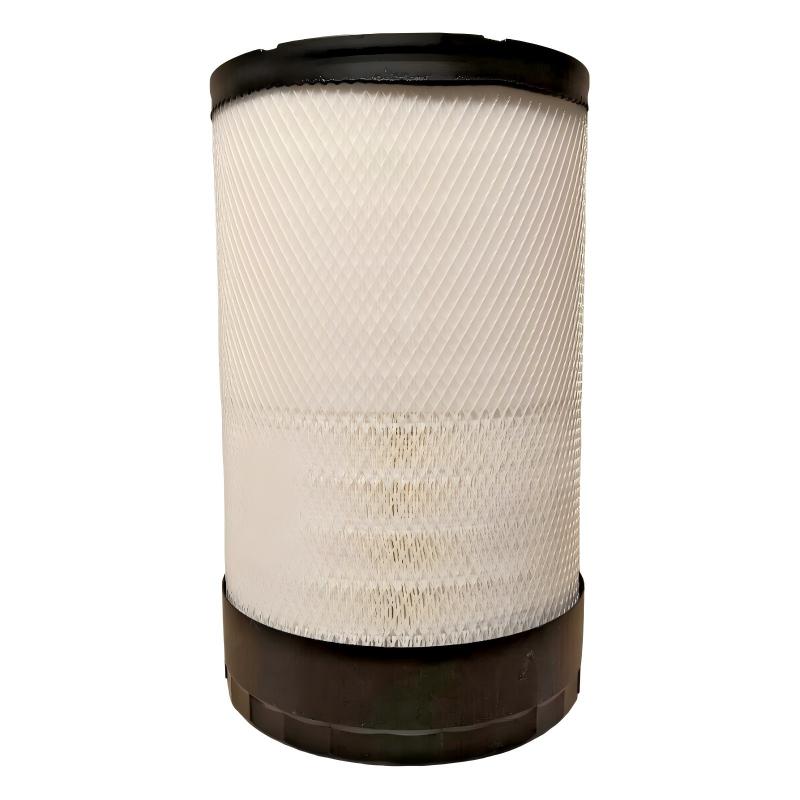

Ingersoll Rand 47623609001 24900318 air filter troubleshooting should begin with airflow performance analysis rather than immediately replacing compressor components. Many compressor problems caused by poor air supply are related to filter blockage, incorrect installation, contamination, or sealing failure.

Ingersoll Rand 47623609001 24900318 Air Filter Fault Symptoms

Common symptoms of air filter problems include:

• Reduced compressor performance
• Increased operating temperature
• Longer loading time
• Higher energy consumption
• Abnormal compressor noise
• Pressure instability
• Frequent maintenance alarms

The first diagnostic question should be:

Is the compressor failing, or is restricted airflow caused by the air filter system?

This determines the correct Fault Diagnosis direction.

Ingersoll Rand 47623609001 24900318 Air Filter Fault Diagnosis Process

A practical troubleshooting path is:

Operating Condition → Airflow Measurement → Filter Inspection → Housing Check → Compressor Performance

The engineer should evaluate:

• Compressor running condition
• Intake airflow
• Filter contamination level
• Housing sealing
• Environmental dust level

Do not replace expensive compressor components before confirming the filtration system condition.

Ingersoll Rand 47623609001 24900318 Airflow Restriction Troubleshooting

Airflow restriction is one of the most common filter-related failures.

Possible causes:

• Filter element blockage
• Excessive dust accumulation
• Incorrect replacement interval
• Wrong filter specification
• Poor installation position

A restricted filter can create additional load on the compressor.

Typical field indicators:

• Increased pressure drop
• Higher motor current
• Longer compressor operation cycle
• Reduced compressed air availability

The correct solution is to identify whether the restriction comes from the filter itself or from the surrounding intake system.

Ingersoll Rand 47623609001 24900318 Real Fault Diagnosis Case

During a factory maintenance inspection, a compressor system showed reduced output pressure during peak production hours.

The maintenance team first checked the compressor control settings, but no abnormal parameters were found.

The engineer measured operating conditions:

• Compressor temperature: Increased compared with normal operation
• Air intake condition: Restricted
• Filter element: Heavy dust loading

After replacing the contaminated air filter and cleaning the intake housing, the compressor returned to stable operation.

The final diagnosis confirmed that the airflow restriction caused the performance issue.

Ingersoll Rand 47623609001 24900318 Air Leakage Fault Diagnosis

Air leakage around the filter housing can create symptoms similar to a blocked filter.

Check:

• Filter sealing surface
• Housing cover
• Damaged gasket
• Incorrect filter installation
• Loose components

A bypass leak allows contaminated air to enter the compressor system without proper filtration.

This can increase:

• Internal component wear
• Oil contamination
• Maintenance frequency

Ingersoll Rand 47623609001 24900318 Contamination Troubleshooting

If contamination appears inside the compressor intake system, investigate:

• Incorrect filter installation
• Damaged filter media
• Poor sealing
• Excessive vibration
• Wrong replacement component

A new filter does not guarantee clean airflow if the installation environment is not controlled.

The Fault Diagnosis process must include both the filter element and the surrounding system.

Ingersoll Rand 47623609001 24900318 Repair Decision

Before replacing other compressor components, confirm:

• Air filter condition
• Filter housing sealing
• Intake airflow
• Operating environment
• Correct filter model

Replace the filter when:

• Contamination is excessive
• Pressure drop is abnormal
• Filter media is damaged
• Service interval has been reached

Replacing unnecessary compressor parts increases maintenance cost without solving the root problem.

Ingersoll Rand 47623609001 24900318 Post-Repair Validation

After corrective action, verify:

• Compressor startup
• Airflow stability
• Operating temperature
• Pressure performance
• Running current
• Noise condition

A successful repair should restore normal compressor performance during actual production operation.
