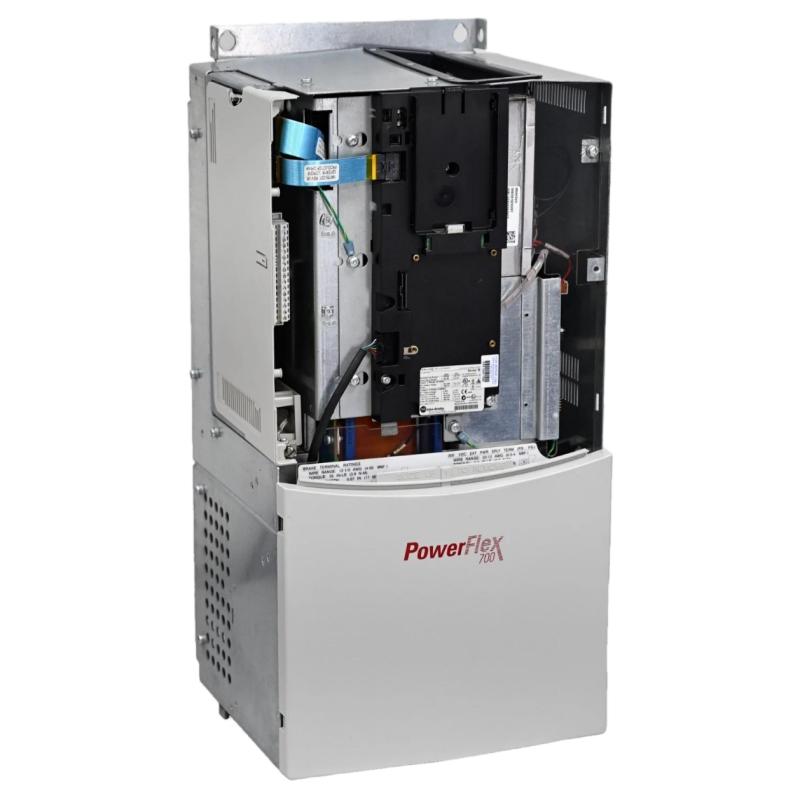

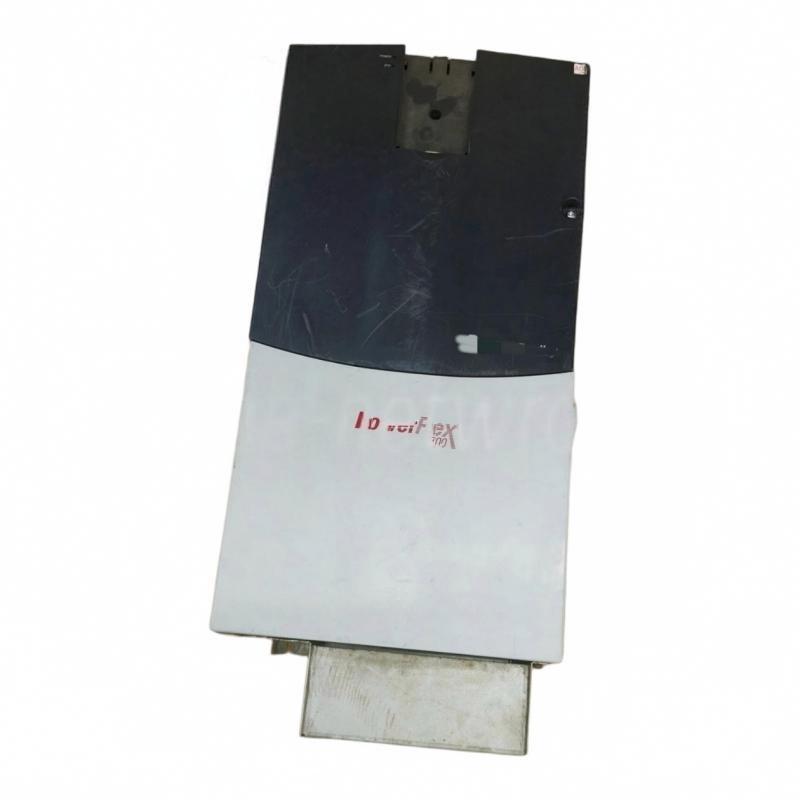

Allen Bradley 20BC140A0AYNANC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BC140A0AYNANC0 PowerFlex 700 AC Drive is an industrial variable-frequency drive intended for motor speed control in compatible automation and power distribution systems. By adjusting motor operation to suit process requirements, an AC drive can help improve equipment control and operational efficiency in suitable applications.

Typical application areas include:

• Industrial manufacturing: Speed control for compatible motors used in production machinery and automated equipment.

• Pumping systems: Adjusting motor speed to meet process flow and pressure requirements where variable-speed operation is appropriate.

• Fan and ventilation systems: Regulating airflow in industrial ventilation and process cooling applications.

• Conveyor systems: Controlling motor speed in material handling and production lines.

• Process automation: Integrating motor control into industrial automation architectures.

• Machinery modernization: Supporting replacement projects after verifying electrical ratings, control interfaces, and motor compatibility.

• Industrial equipment maintenance: Helping maintenance teams identify drive models for spare-parts sourcing and system restoration.

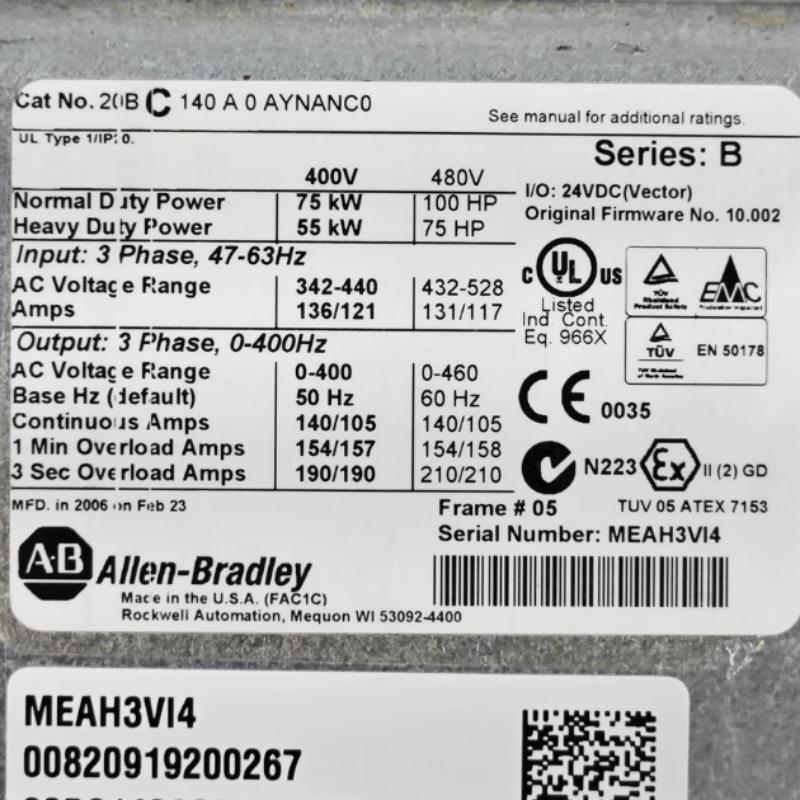

Before selecting this drive, confirm the input supply, rated output current, motor power rating, overload requirements, control method, and installed options using the product nameplate and technical documentation.

Advantages

1. Flexible Motor Speed Control

Variable-frequency drives adjust motor operation by controlling output frequency and voltage according to the selected control method. This enables compatible motors to operate at speeds suited to process demands.

2. Industrial Automation Integration

The PowerFlex 700 family is designed for industrial motor-control applications. The specific functions and integration options available on the 20BC140A0AYNANC0 depend on its exact configuration.

3. Potential Energy Efficiency Improvements

For suitable variable-torque applications, such as fans and pumps, reducing motor speed can lower energy consumption when full-speed operation is unnecessary. Actual savings depend on the load profile and system design.

4. Improved Process Regulation

Adjustable motor speed can help maintain appropriate operating conditions in production equipment and process systems, reducing reliance on fixed-speed control.

5. Support for Equipment Upgrades

The drive can be evaluated for industrial equipment upgrades and replacement projects. Compatibility should be assessed against the existing motor, power supply, control architecture, and application requirements.

6. Practical Installation Planning

The supplied dimensions of 689.6 × 308.9 × 275.4 mm provide a basis for preliminary cabinet-layout and mounting-space calculations. Cooling clearances, heat dissipation, and wiring access must also be considered.

7. Clear Model Identification

The complete catalog number, 20BC140A0AYNANC0, helps procurement and maintenance teams identify the intended drive when requesting quotations, checking inventory, or planning replacement work.

Technical FAQs

Q1: What is the Allen Bradley 20BC140A0AYNANC0 PowerFlex 700 AC Drive used for?

It is an industrial AC drive intended for variable-speed motor control in compatible applications. The exact motor capacity and operating limits must be verified from the product nameplate and technical documentation.

Q2: How do I confirm whether this drive matches my motor?

Compare the motor's rated voltage, full-load current, power rating, frequency, and operating characteristics with the drive's specifications. Also assess load type, acceleration requirements, and overload demands.

Q3: What input power supply does the 20BC140A0AYNANC0 require?

The required voltage, phase arrangement, and frequency must be confirmed from the exact catalog configuration and nameplate. Do not infer electrical ratings from the model number alone.

Q4: Can this PowerFlex 700 drive be used with pumps and fans?

The PowerFlex 700 family is intended for industrial motor-control applications, which may include suitable pumping and ventilation systems. Confirm that the specific drive's ratings and control functions meet the application requirements.

Q5: How should acceleration and deceleration parameters be configured?

Set ramp times according to the motor, load inertia, machine limitations, and process requirements. Inappropriate settings may trigger faults or cause undesirable mechanical stress. Follow the manufacturer's commissioning instructions.

Q6: What can cause an overcurrent fault during startup?

Potential causes include overly aggressive acceleration settings, excessive mechanical load, motor or cable faults, incorrect motor parameters, and unsuitable control settings. Review the drive's fault information and investigate the underlying cause before restarting.

Q7: Why might the drive experience an overvoltage fault during deceleration?

During deceleration, a motor may return energy to the drive's DC bus. Depending on the application and configuration, the deceleration ramp or braking arrangement may require review. Follow the manufacturer's diagnostic procedures before changing settings or components.

Q8: How can the drive communicate with a PLC or DCS?

Communication depends on the drive's installed interfaces and supported options. Confirm the available communication hardware, protocol, firmware compatibility, and configuration requirements before connecting it to the control system.

Q9: What maintenance does a PowerFlex 700 drive require?

Follow the manufacturer's maintenance schedule. Depending on the installation, checks may include cooling fans, ventilation passages, electrical connections, contamination, signs of overheating, and fault history. Isolate power and observe the specified DC-bus discharge and electrical safety procedures before servicing.

Q10: What information should I provide when ordering a replacement?

Provide the complete catalog number, nameplate photographs, input and output ratings, required quantity, and details of installed communication or control options. For a replacement project, compare motor data, mounting requirements, wiring, and existing parameter settings before commissioning.
