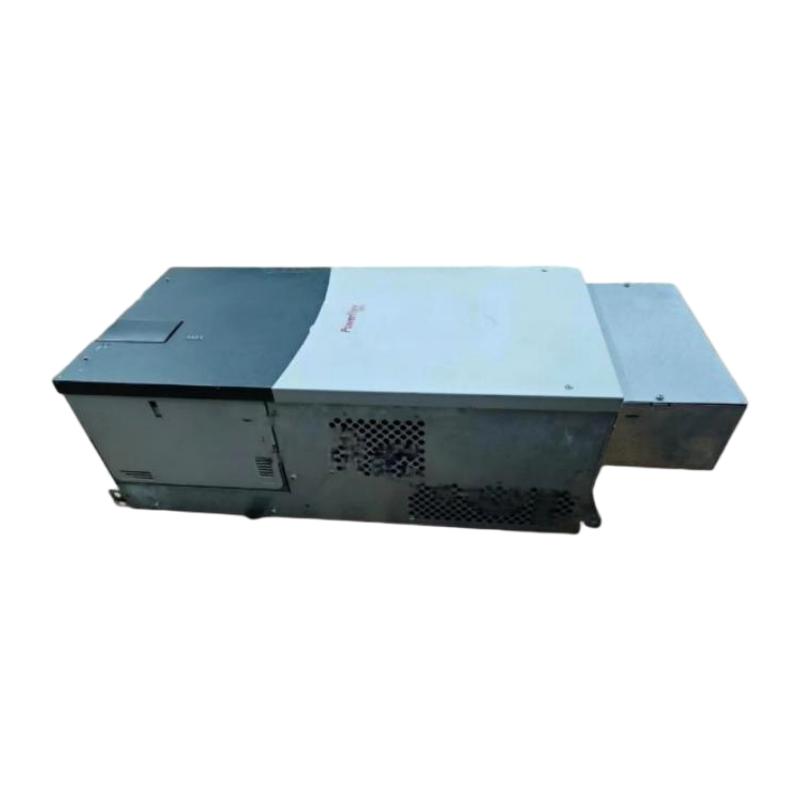

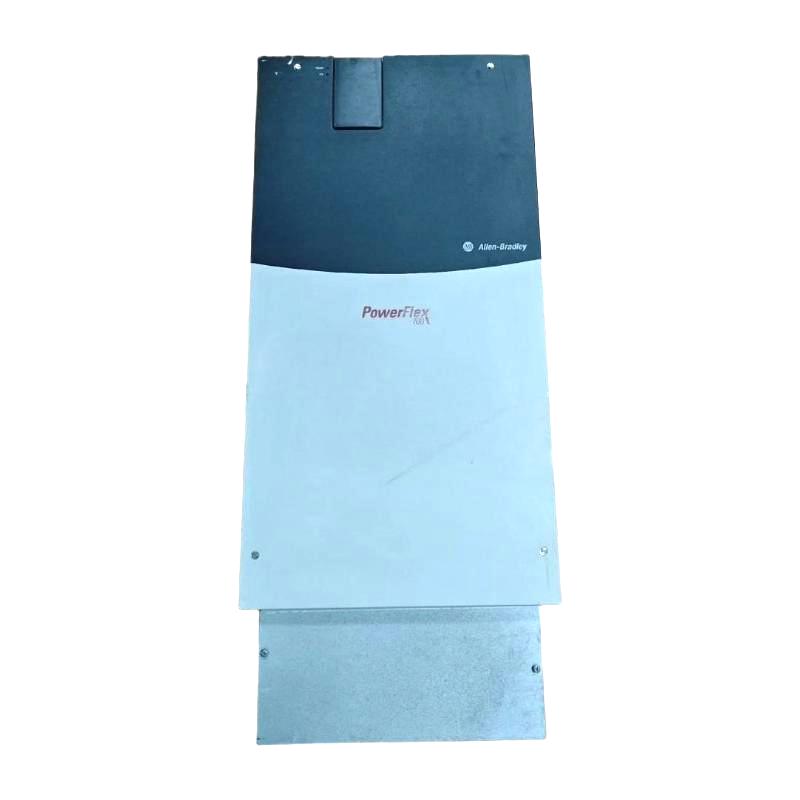

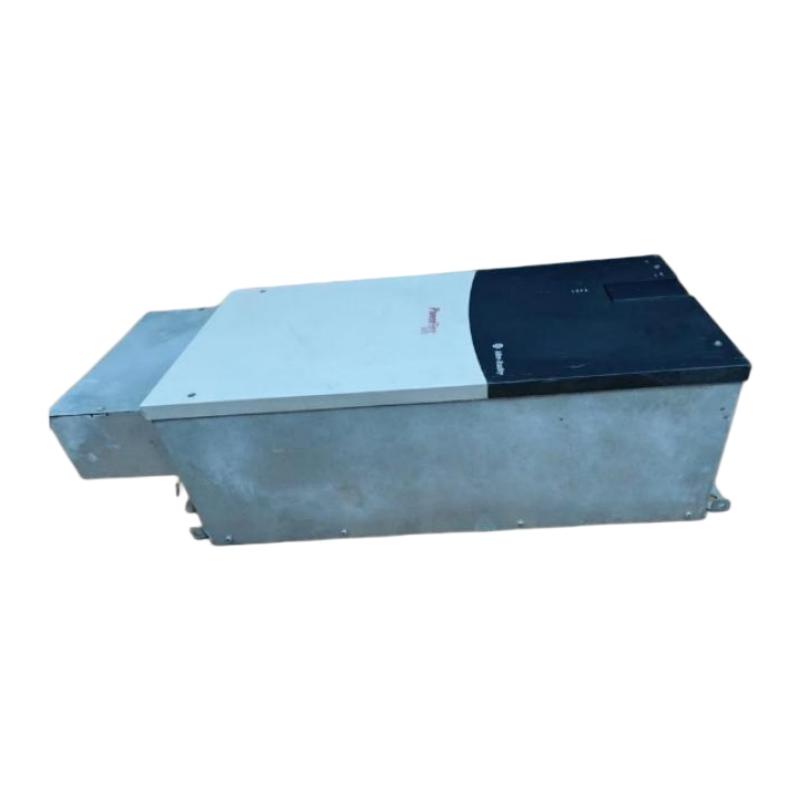

Allen Bradley 20BC170A0AYNANC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BC170A0AYNANC0 PowerFlex 700 AC Drive is an industrial variable-frequency drive intended for controlling the speed and operation of compatible AC motors. In industrial automation systems, variable-frequency drives help regulate motor performance according to process requirements and can improve operational flexibility when properly matched to the application.

Typical application areas include:

• Industrial manufacturing: Controlling motors in production machinery, processing equipment, and automated manufacturing lines.

• Pumping systems: Adjusting motor speed to meet flow and pressure demands in compatible pump installations.

• Ventilation and cooling: Regulating fan speed in industrial air-handling and cooling systems.

• Material handling: Supporting adjustable-speed operation in conveyor and material transportation equipment.

• Process automation: Integrating motor control into industrial control and monitoring systems.

• Heavy-duty machinery: Evaluating variable-speed control for demanding industrial equipment, subject to the drive's verified ratings.

• Maintenance and replacement projects: Identifying the appropriate drive for equipment repairs, upgrades, and spare-parts procurement.

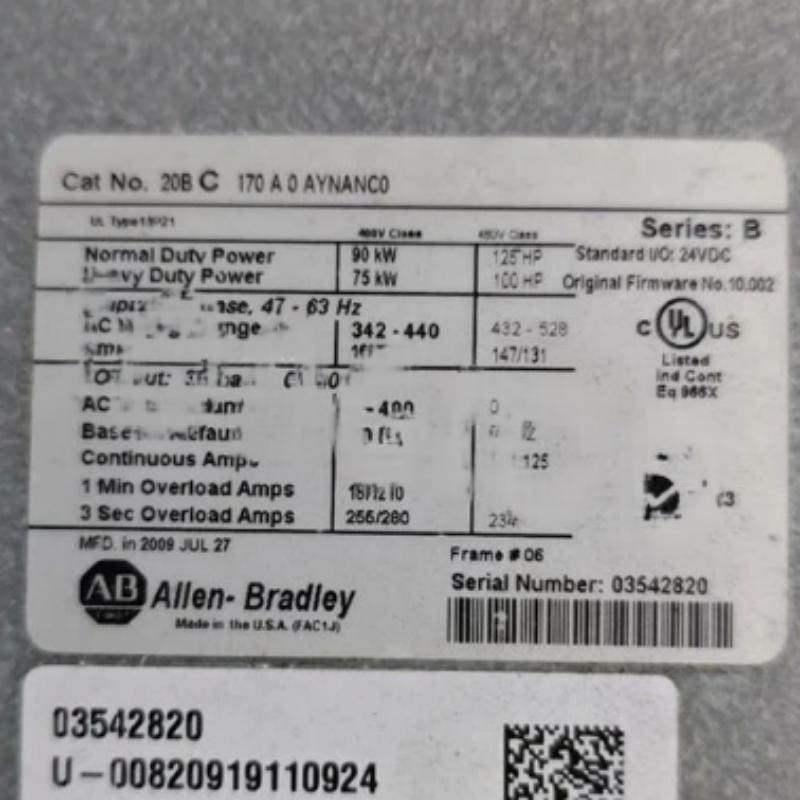

Before installation, confirm the drive's rated input voltage, output current, motor power rating, overload capacity, control mode, and installed options against the product nameplate and technical documentation.

Advantages

1. Adjustable Motor Operation

Variable-frequency drives regulate motor speed by controlling output frequency and voltage according to the selected control method. This allows compatible motors to operate at speeds appropriate for the process.

2. Industrial Automation Compatibility

The PowerFlex 700 family is intended for industrial motor-control applications. The communication capabilities and control functions available on this particular unit depend on its exact catalog configuration and installed options.

3. Potential Energy Savings

In suitable applications, especially variable-torque fan and pump systems, reducing motor speed can lower energy consumption when full-speed operation is unnecessary. Actual savings depend on system design and operating conditions.

4. Improved Process Flexibility

Adjustable motor speed can help equipment respond to changing production requirements, supporting more precise process regulation than fixed-speed operation in suitable applications.

5. Integration into Existing Systems

The drive can be assessed for integration into an existing industrial automation architecture. Confirm controller compatibility, available communication interfaces, control wiring, and configuration requirements before deployment.

6. Installation and Space Planning

The supplied dimensions of 850.0 × 403.9 × 275.5 mm help engineers estimate mounting space and plan equipment layout. Adequate cooling clearance, cable access, and heat dissipation must also be considered.

7. Reliable Model Identification for Procurement

The complete catalog number, 20BC170A0AYNANC0, helps maintenance teams and equipment buyers distinguish the required drive when requesting quotations, checking spare-parts inventory, or planning a replacement.

Technical FAQs

Q1: What is the Allen Bradley 20BC170A0AYNANC0 PowerFlex 700 AC Drive used for?

It is an industrial AC drive intended for variable-speed control of compatible motors. Its precise application range depends on the electrical ratings, configuration, and operating conditions of the specific unit.

Q2: How can I confirm whether this drive matches my motor?

Compare the motor's rated voltage, full-load current, power rating, frequency, and operating characteristics with the drive's specifications. Also consider the load type, overload requirements, and acceleration or deceleration demands.

Q3: What input power supply does the 20BC170A0AYNANC0 require?

The required input voltage, phase arrangement, and frequency must be confirmed from the product nameplate and manufacturer documentation. Do not infer these values from the catalog number alone.

Q4: Can this PowerFlex 700 drive control pumps, fans, and conveyors?

The PowerFlex 700 family is intended for industrial motor-control applications, potentially including these types of equipment. Confirm that the individual drive's ratings, control capabilities, and overload characteristics meet the specific application requirements.

Q5: How should motor parameters be configured during commissioning?

Enter the motor data specified by the nameplate and follow the manufacturer's commissioning procedure for the selected control method. Incorrect motor parameters may affect control performance or cause faults.

Q6: What can cause an overcurrent fault when the drive starts?

Potential causes include an acceleration ramp that is too short, excessive mechanical load, motor or cable faults, incorrect motor data, and unsuitable control settings. Review the fault code and diagnostic information before attempting another startup.

Q7: Why might an overvoltage fault occur during deceleration?

During deceleration, a motor may return energy to the drive's DC bus. Depending on the application and drive configuration, the deceleration ramp or braking arrangement may need review. Follow the manufacturer's diagnostic procedures before changing parameters or components.

Q8: How can the drive be integrated with a PLC or DCS?

Integration depends on the installed communication interface, supported protocol, firmware, and controller configuration. Confirm the available hardware and network requirements for the exact catalog number before integrating the drive.

Q9: What maintenance is recommended for this drive?

Follow the manufacturer's maintenance schedule. Depending on the installation, inspections may include cooling fans, ventilation passages, electrical connections, contamination, overheating, and fault history. Isolate the equipment and observe the specified DC-bus discharge procedures before servicing.

Q10: What should I verify before replacing an existing PowerFlex 700 drive?

Confirm the complete catalog number, input and output ratings, motor requirements, control interfaces, installed options, mounting arrangement, and parameter settings. Document the existing configuration and verify compatibility before installing the replacement.
