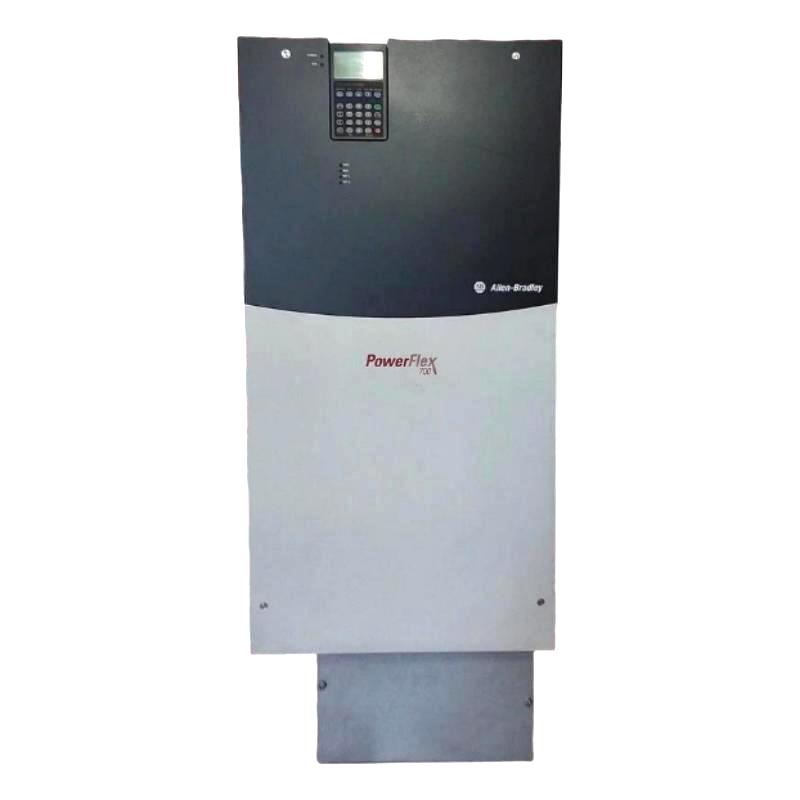

Allen Bradley 20BC205A0AYNANC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BC205A0AYNANC0 PowerFlex 700 AC Drive is an industrial variable-frequency drive intended for controlling compatible AC motors in automated machinery and industrial power systems. By adjusting motor speed to meet operating demands, an appropriately selected drive can help improve process flexibility and equipment control.

Typical application areas include:

• Industrial manufacturing: Motor speed regulation for production machinery and automated manufacturing lines.

• Pumping systems: Adjusting pump speed to meet changing flow and pressure requirements where variable-speed operation is suitable.

• Industrial ventilation: Controlling compatible fans and air-handling equipment to support process requirements.

• Material handling: Speed control for conveyor systems and other motor-driven equipment.

• Process automation: Integrating motor control into industrial control and monitoring architectures.

• Machinery upgrades: Evaluating drive replacement options when modernizing existing motor-control systems.

• Maintenance and spare-parts management: Identifying the correct drive configuration for repair, replacement, and equipment procurement.

Before selecting this drive, verify the rated input voltage, output current, motor power rating, overload characteristics, control method, and installed options using the actual product nameplate and technical documentation.

Advantages

1. Adjustable Motor Speed

Variable-frequency drives regulate motor speed by controlling output frequency and voltage according to the selected control method. This enables compatible motors to operate at speeds appropriate for process requirements.

2. Industrial Motor-Control Capability

The PowerFlex 700 family is designed for industrial motor-control applications. The capabilities of the specific 20BC205A0AYNANC0 unit depend on its exact electrical ratings and installed configuration.

3. Potential Energy Efficiency Benefits

In suitable variable-torque applications, such as pumps and fans, reducing motor speed can lower energy consumption when full-speed operation is unnecessary. Actual savings depend on load characteristics and system design.

4. Flexible Process Operation

Adjustable speed can help industrial equipment respond to changing production requirements and support more controlled operation than fixed-speed arrangements in suitable applications.

5. Automation System Integration

The drive can be assessed for integration into an existing industrial control system. Confirm the available communication interfaces, control wiring, supported protocols, and configuration requirements before installation.

6. Practical Installation Planning

The supplied dimensions of 850.0 × 403.9 × 275.5 mm provide a reference for equipment layout and mounting-space planning. Cooling clearance, ventilation, wiring access, and heat dissipation should also be considered.

7. Clear Catalog Identification

Using the complete catalog number, 20BC205A0AYNANC0, helps procurement and maintenance teams identify the required product when requesting quotations or sourcing replacement equipment.

Technical FAQs

Q1: What is the Allen Bradley 20BC205A0AYNANC0 PowerFlex 700 AC Drive used for?

It is an industrial AC drive intended for variable-speed control of compatible motors. Its suitability for a particular application depends on the exact electrical ratings, configuration, and operating conditions.

Q2: How do I verify compatibility between this drive and an AC motor?

Compare the motor's rated voltage, full-load current, power rating, frequency, and operating characteristics with the drive's specifications. Also assess the load type, overload requirements, and acceleration and deceleration demands.

Q3: What input power supply is required?

The required voltage, phase arrangement, and frequency must be confirmed from the product nameplate and manufacturer documentation. Do not infer these values from the catalog number alone.

Q4: Can this drive be used for pump and fan applications?

The PowerFlex 700 family is intended for industrial motor-control applications, which may include suitable pump and fan systems. Verify that the specific drive meets the motor ratings, control requirements, and load characteristics.

Q5: How should motor parameters be configured during commissioning?

Use the motor nameplate data and follow the manufacturer's commissioning procedure for the selected control mode. Incorrect motor parameters can affect performance and may cause drive faults.

Q6: What causes an overcurrent fault during startup?

Possible causes include an acceleration ramp that is too short, excessive mechanical load, incorrect motor parameters, wiring problems, or a motor fault. Review the fault code and diagnostic information before restarting the equipment.

Q7: Why might the drive trip on overvoltage during deceleration?

During deceleration, the motor may return energy to the drive's DC bus. Depending on the installation, the deceleration ramp or braking arrangement may need review. Follow the manufacturer's troubleshooting procedures before making changes.

Q8: How can this drive communicate with a PLC or DCS?

Communication depends on the installed interface, supported protocol, firmware, and controller configuration. Confirm the actual hardware options and compatibility requirements for the complete catalog number.

Q9: What maintenance procedures should be followed?

Follow the manufacturer's maintenance schedule. Depending on the installation, checks may include cooling fans, ventilation passages, electrical connections, contamination, signs of overheating, and recorded fault history. Isolate the equipment and follow the specified DC-bus discharge procedures before servicing.

Q10: What should be checked before replacing an existing PowerFlex 700 drive?

Verify the full catalog number, electrical ratings, motor requirements, control interfaces, installed options, mounting arrangements, and parameter settings. Document the existing configuration and confirm compatibility before commissioning the replacement.
