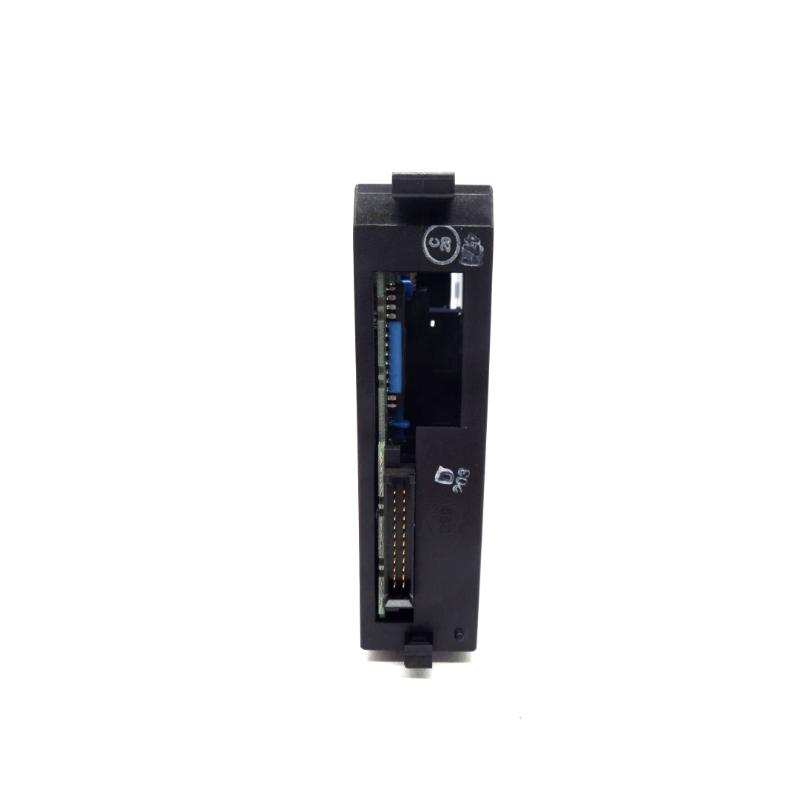

The GE IC693MDL733 is a high-capacity digital input module engineered for GE Fanuc Series 90-30 PLC platforms where extensive discrete input monitoring is required. With an expanded channel count, this module efficiently consolidates numerous 24 V DC input signals from field devices — such as safety interlocks, proximity sensors, and control switches — into a single, organized I/O point. Built for industrial environments, the IC693MDL733 combines reliable signal acquisition with compact rack utilization, helping simplify automation system design and reduce wiring complexity.

Technical Specifications

Specification	Description
Module Type	High-Capacity Digital Input Module
Input Points	32 discrete inputs
Rated Input Voltage	24 V DC
Input Configuration	Sinking
Electrical Isolation	Group-isolated inputs
PLC Platform	GE Fanuc Series 90-30
Mounting Method	Rack/baseplate mounted
Operating Environment	Industrial control cabinets

Dimensions (L×W×H): 140 × 64 × 102 mm
Weight: 0.62 kg

Recommended Related Models

GE IC693MDL730 – 32-point digital input configuration
GE IC693MDL731 – High-density input variant
GE IC693MDL660 – Standard 16-point input module
GE IC693DSM314 – High-density discrete output module

Popular GE Series 90-30 Models

GE IC693CPU372 – Advanced CPU for robust control tasks
GE IC693CPU374 – High-performance series PLC CPU
GE IC693DNM200 – DeviceNet master communication module
GE IC693DNS201 – DeviceNet slave communication module

Applications

The IC693MDL733 is well suited for automation projects that require broad input coverage and dependable performance, including:

Complex manufacturing and assembly lines
Extensive sensor networks in material handling
Multi-zone safety interlock signal acquisition
Large process control systems with dense input requirements
PLC system expansion and retrofit projects

This module simplifies signal consolidation while maintaining stable and accurate input reading across a wide range of industrial conditions.

Advantages

High-capacity input support reduces overall module count and rack usage
Stable digital signal detection enhances control logic accuracy
Industrial-grade design ensures dependable operation under continuous load
Compact footprint maximizes panel space utilization
Seamless integration with Series 90-30 PLC hardware

The IC693MDL733 combines performance with flexibility, making it a practical choice for control systems that demand both scale and reliability.

Technical FAQs

How many discrete inputs does the IC693MDL733 support?
It supports 32 discrete 24 V DC input points.
Is the module compatible with Series 90-30 CPU models?
Yes — it integrates with standard GE Series 90-30 CPUs.
Can it replace multiple lower-density input modules?
Yes — its high channel count can consolidate several standard input modules.
Which field devices are typically connected?
Proximity sensors, limit switches, push buttons, and similar 24 V DC devices.
Is this module suitable for continuous industrial operation?
Yes — it is designed for 24/7 industrial use.
Does the IC693MDL733 support hot swapping?
No — the PLC should be powered down before installation or removal.
Do I need special software to configure the module?
No — standard GE Series 90-30 programming tools are sufficient.
Is external protection recommended?
Yes — external fusing or protection is advised based on field wiring practices.
Does this module handle electrical noise effectively?
Yes — industrial-grade input conditioning supports stable acquisition even in noisy environments.
Is this module commonly used in expansion projects?
Yes — it is frequently selected to boost discrete input capacity in existing PLC systems.
