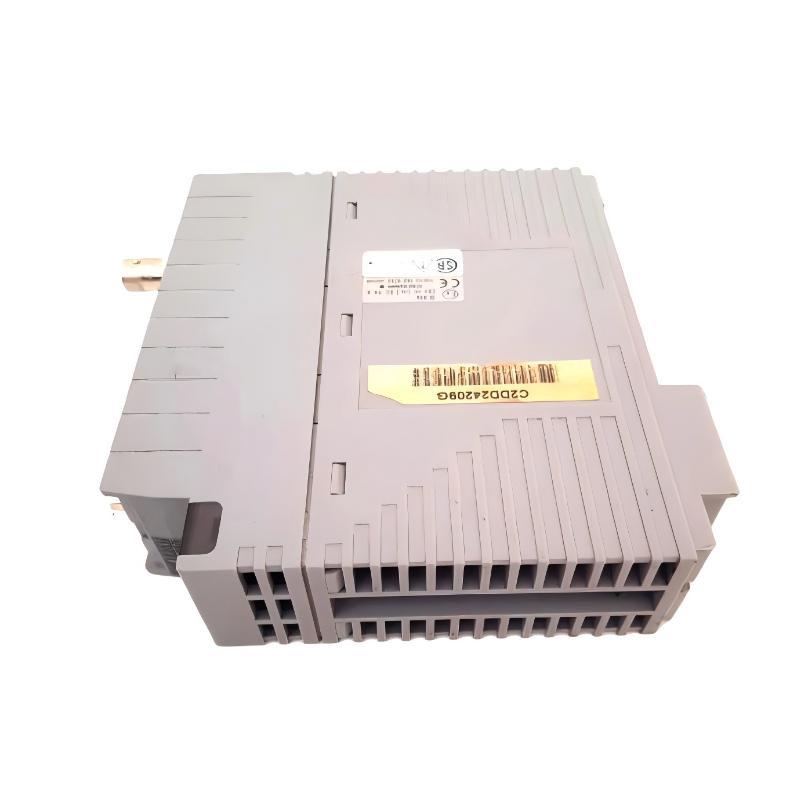

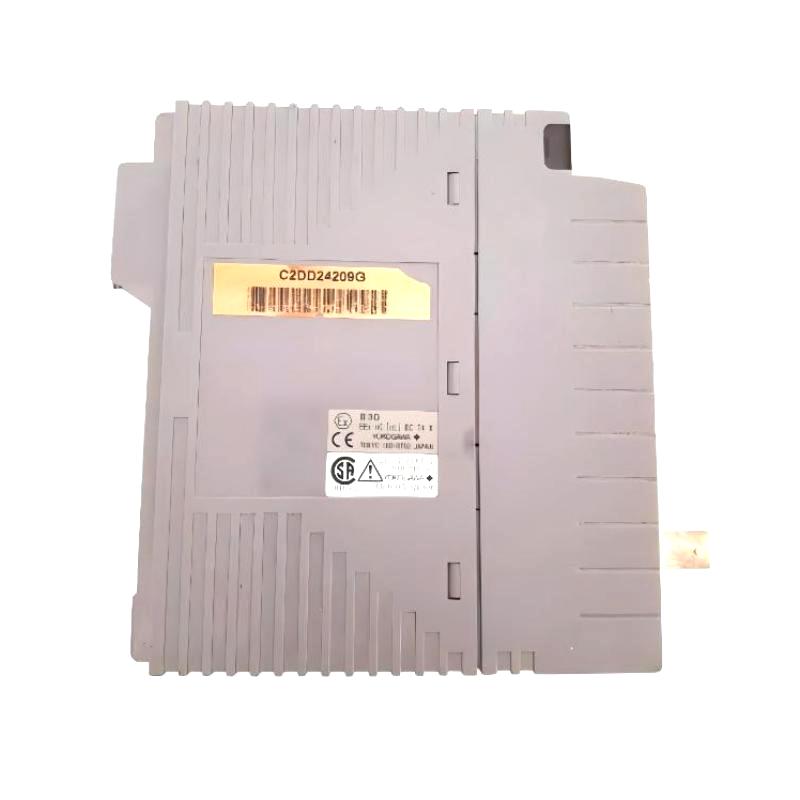

Yokogawa EB501-10 Bus Interface Module

Applications

The Yokogawa EB501-10 Bus Interface Module is designed to facilitate high-speed, reliable communication between bus systems and control modules in industrial automation environments. It ensures seamless data transfer, supporting both monitoring and control functions.

Typical applications include:

• Distributed control systems (DCS) in process industries

• Integration of multiple control and I/O modules

• Power plants, chemical, and petrochemical plants

• Real-time process monitoring and control

• Safety and critical process applications requiring reliable bus communication

Advantages

This module provides robust performance, high reliability, and easy integration with Yokogawa systems.

Key benefits:

• Ensures stable and fast bus communication between modules

• Compact design suitable for standard rack installations

• Minimal maintenance requirements

• Rugged construction for industrial environments

• Supports seamless integration with Yokogawa DCS and related modules

Technical FAQs

1. What is the primary function of this module?
   Provides reliable bus communication between Yokogawa control and I/O modules.

2. What are the dimensions?
   144.65 × 130 × 32.8 mm.

3. What is the weight?
   Approximately 0.3 kg.

4. Is it compatible with other Yokogawa modules?
   Yes, fully compatible with Yokogawa EB series modules and DCS systems.

5. Can it operate continuously?
   Yes, designed for 24/7 industrial operation.

6. Does it require cooling?
   Standard rack ventilation is sufficient.

7. Is it suitable for harsh industrial environments?
   Yes, built to withstand typical industrial conditions.

8. How is it installed?
   Mounted in standard Yokogawa module racks with appropriate connectors.

9. Does it require frequent maintenance?
   Minimal maintenance is needed, primarily checking connections.

10. Can it support large system configurations?
    Yes, ideal for linking multiple modules in extensive automation setups.
