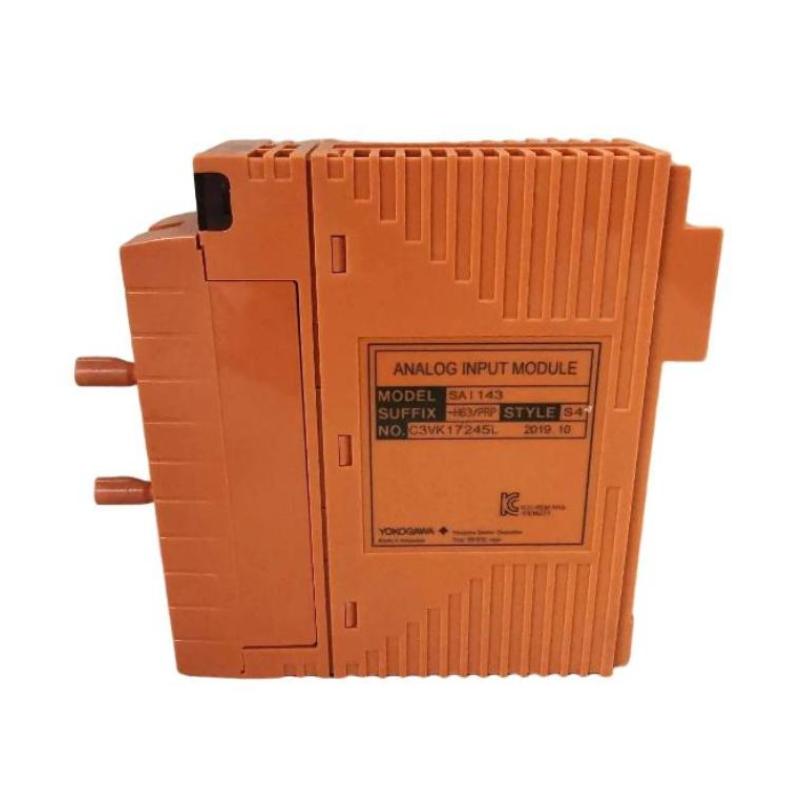

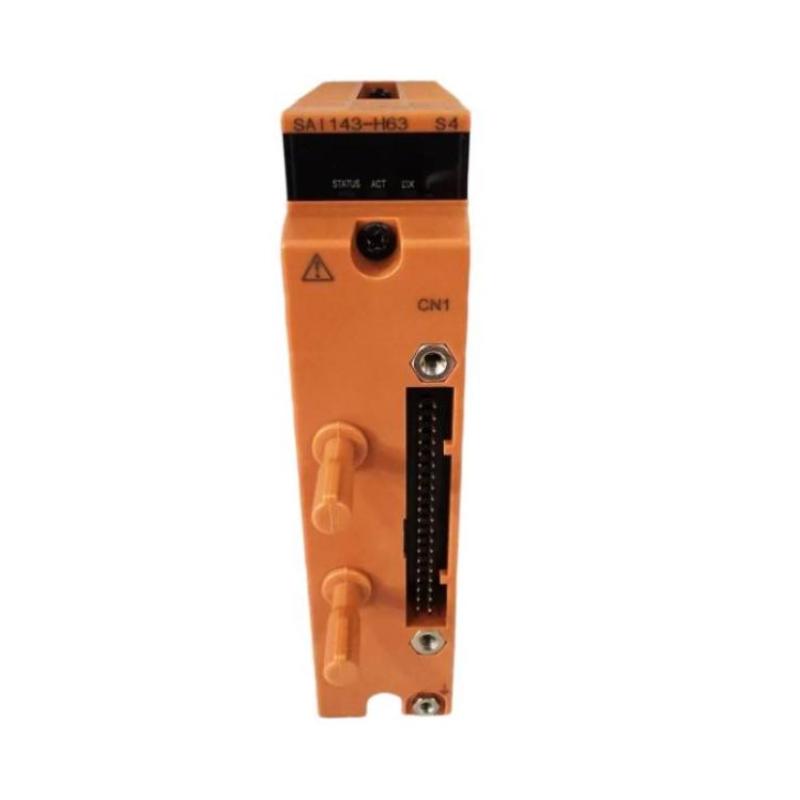

Yokogawa SAI143-H63/PRP Analog Input Module

Applications

The Yokogawa SAI143-H63/PRP Analog Input Module is engineered for precise analog signal acquisition in critical process automation systems. It converts field sensor signals into digital data, enabling accurate monitoring and control of industrial processes.

Typical applications include:

• Distributed control systems (DCS) in chemical, petrochemical, and power plants

• Acquisition of analog signals from sensors such as temperature, pressure, and flow

• Real-time process monitoring and control

• Integration of analog field data into control networks

• Safety-critical and redundant systems requiring high reliability

Advantages

This module offers high accuracy, robust construction, and seamless integration for industrial automation applications.

Key benefits:

• High-precision analog signal conversion

• PRP (Parallel Redundancy Protocol) support for enhanced reliability

• Compact design for standard rack installations

• Rugged industrial-grade construction

• Fully compatible with Yokogawa SAI/SAI143 series systems

Technical FAQs

1. What is the primary function of this module?
   Converts analog field signals into digital data for process control.

2. What are the module dimensions?
   130 × 107.5 × 32.8 mm.

3. What is the weight?
   Approximately 0.39 kg.

4. Is it compatible with other Yokogawa modules?
   Yes, designed for SAI/SAI143 series integration.

5. Does it support redundant configurations?
   Yes, supports PRP for high availability systems.

6. Can it operate continuously?
   Yes, suitable for 24/7 industrial use.

7. Does it require cooling?
   Standard rack ventilation is sufficient.

8. Is it suitable for harsh industrial environments?
   Yes, built for reliable operation in industrial conditions.

9. What types of signals does it support?
   Analog signals from sensors such as voltage, current, temperature, and pressure.

10. Is maintenance required?
    Minimal maintenance, mainly routine inspection of connections.
