Brand:Yokogawa Electric Item No.:NFAT141-S01 Product Origin:Japan Product Dimensions:130 x 107.5 x 32.8 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

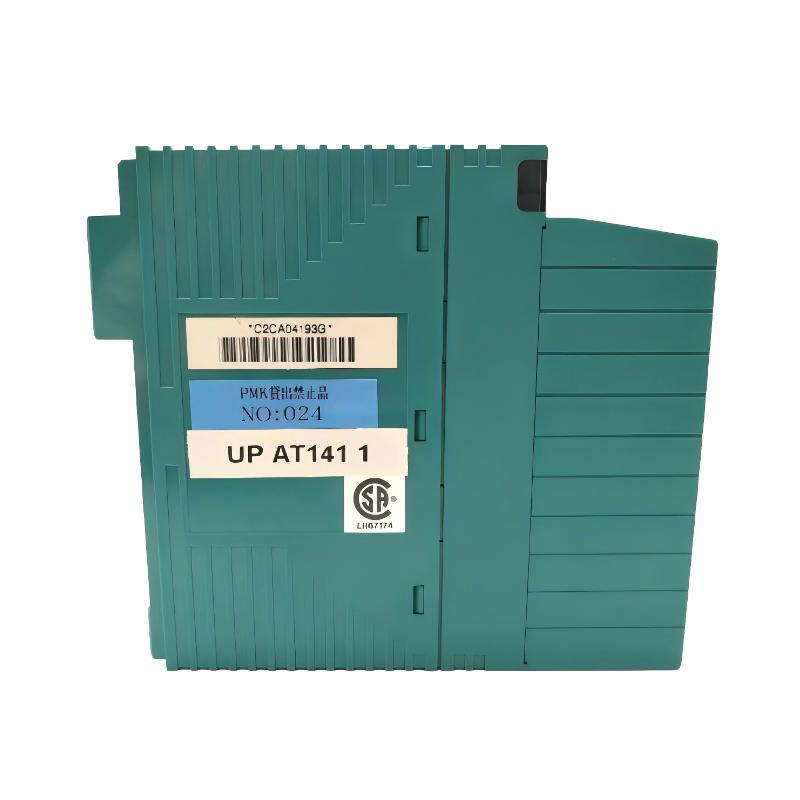

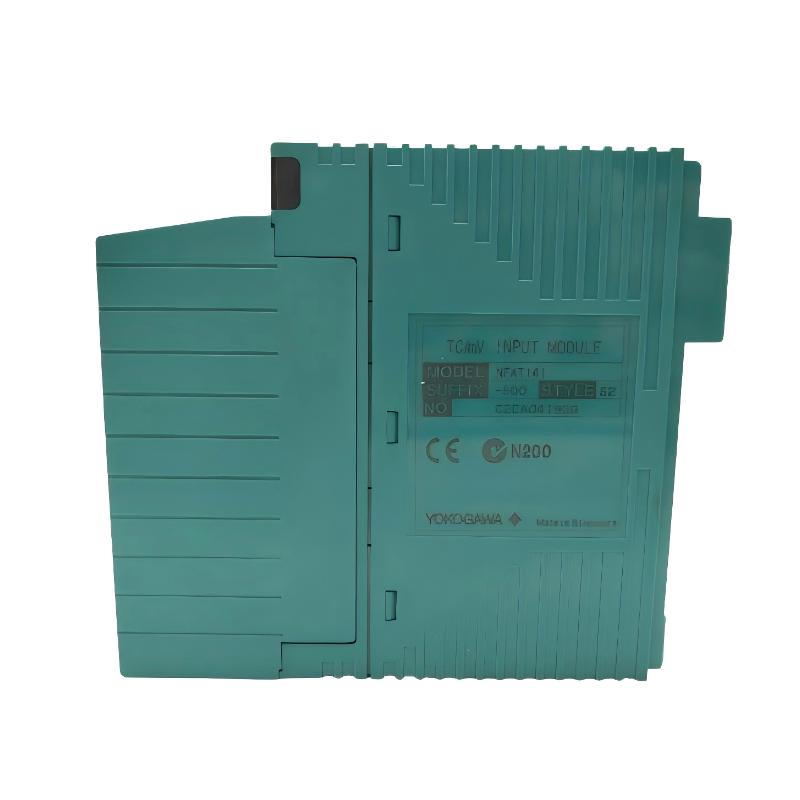

The Yokogawa NFAT141-S01 TC/mV Input Module provides precise and reliable acquisition of thermocouple and millivolt signals in industrial automation systems. Its compact, durable design ensures easy integration into control cabinets while delivering accurate process data. Ideal for both new installations and system upgrades, it enhances real-time monitoring and process control within Yokogawa Distributed Control Systems.
Technical Specifications
Parameter
Specification
Manufacturer
Yokogawa
Model
NFAT141-S01
Product Type
TC/mV Input Module
System Compatibility
Yokogawa DCS and Field Devices
Installation
Rack or Panel-mounted
Operating Environment
Industrial Process Plants
Cooling
Passive
Dimensions
130 × 107.5 × 32.8 mm
Weight
0.2 kg
Recommended Related Models
Yokogawa NFAT142-S01 — TC/mV Input Module, alternate version
Yokogawa AFV30D-S41201 — Duplex Field Control Unit
Yokogawa F3LR01-0N — Fiber Optic FA Bus Interface Module
Yokogawa DCS-IOC-01 — Input/Output Control Module
Yokogawa FCS-TERM-01 — Field Termination Assembly
Industrial Applications & Use Cases
The Yokogawa NFAT141-S01 TC/mV Input Module is designed for accurate acquisition of thermocouple (TC) and millivolt (mV) signals in industrial control systems. It enables precise temperature and process monitoring, ensuring reliable data integration into distributed control networks.
Typical applications include:
Temperature monitoring in chemical and petrochemical processes
Thermal process control in oil & gas operations
Power generation and turbine temperature measurement
Water and wastewater treatment systems requiring precise thermocouple inputs
Integration with Yokogawa Distributed Control Systems (DCS)
Retrofitting or upgrading existing industrial measurement networks
Key Advantages & Benefits
High-Accuracy Signal Acquisition – Reliable measurement of thermocouple and mV signals
Compact & Lightweight Design – Fits easily into industrial control cabinets
Robust Industrial Performance – Withstands vibration, temperature fluctuations, and electrical noise
Seamless DCS Integration – Fully compatible with Yokogawa controllers and I/O systems
Long Operational Life – Engineered for continuous industrial operation
Technical FAQs
1. What is the primary function of the NFAT141-S01?
It receives and processes thermocouple and millivolt input signals for accurate process monitoring.
2. Can it handle multiple thermocouple types?
Yes, it supports standard thermocouple types used in industrial applications.
3. Is it compatible with Yokogawa DCS systems?
Yes, it integrates seamlessly with Yokogawa distributed control systems.
4. How is the module installed?
Rack or panel-mounted within industrial control cabinets.
5. Does it require configuration?
Minimal configuration is needed; plug-and-play operation is supported.
6. Can multiple modules be used together?
Yes, several modules can be deployed for expanded signal monitoring.
7. What maintenance is required?
Periodic inspection and cleaning; ensure connectors are secure.
8. Is it suitable for retrofitting older systems?
Yes, it can replace or expand existing thermocouple input networks.
9. Which industries typically use this module?
Chemical, petrochemical, power generation, oil & gas, and water/wastewater sectors.
10. What is the expected service life?
Engineered for long-term industrial use, typically exceeding 10 years under standard operating conditions.
