Introduction

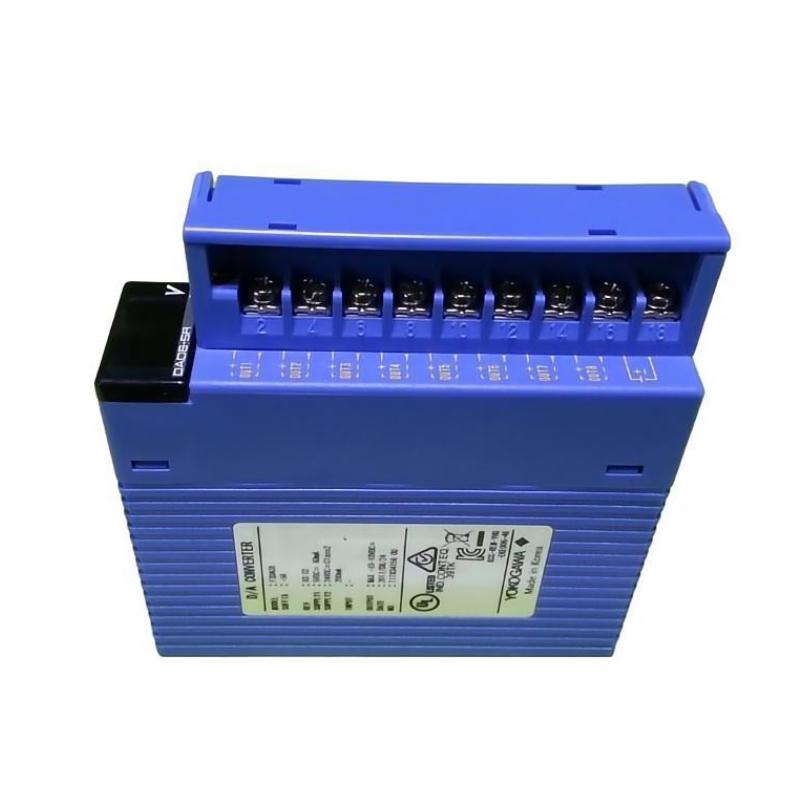

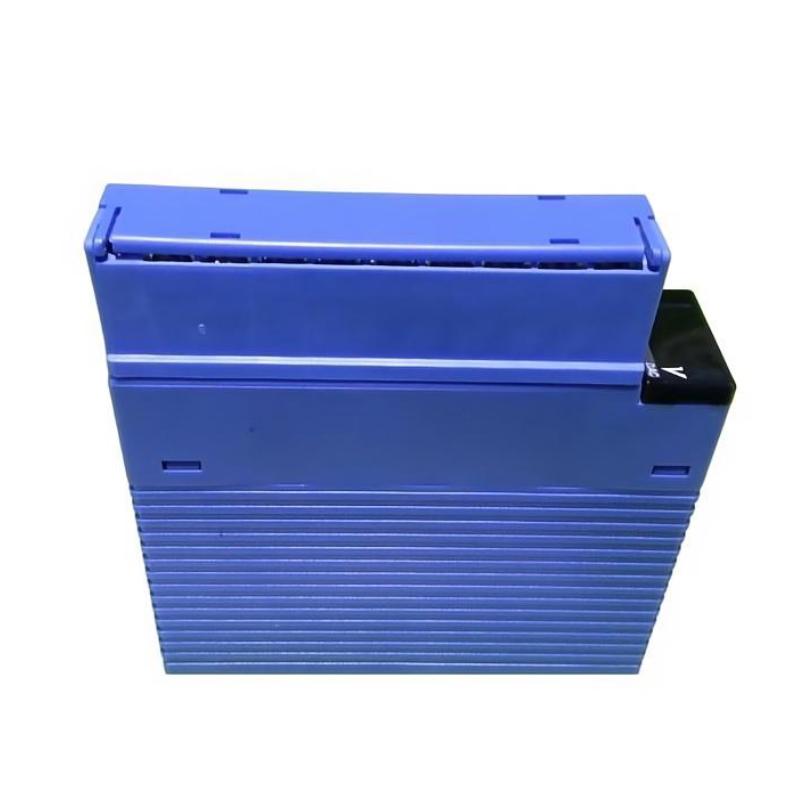

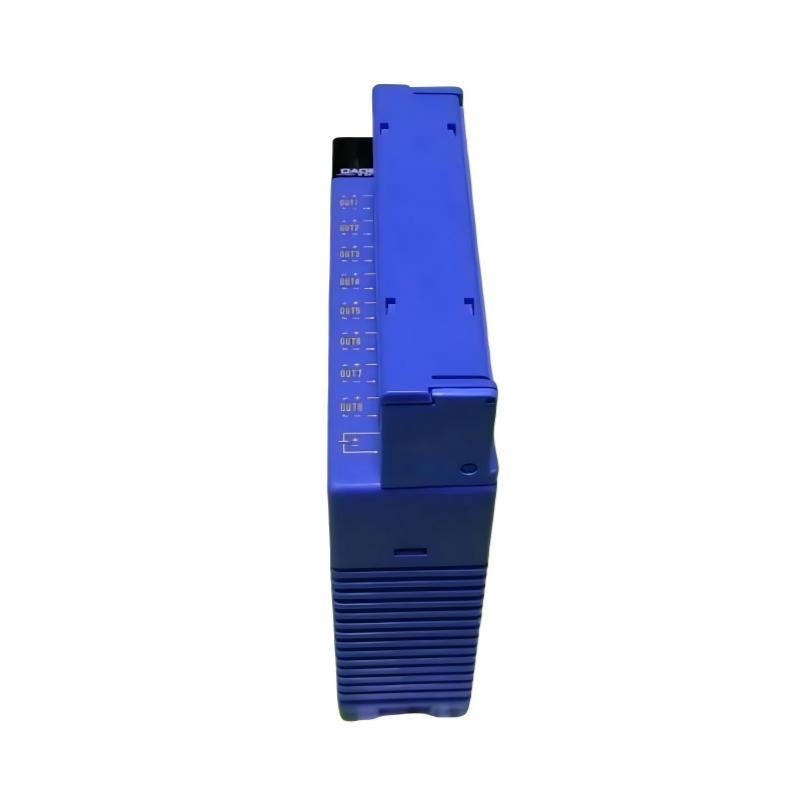

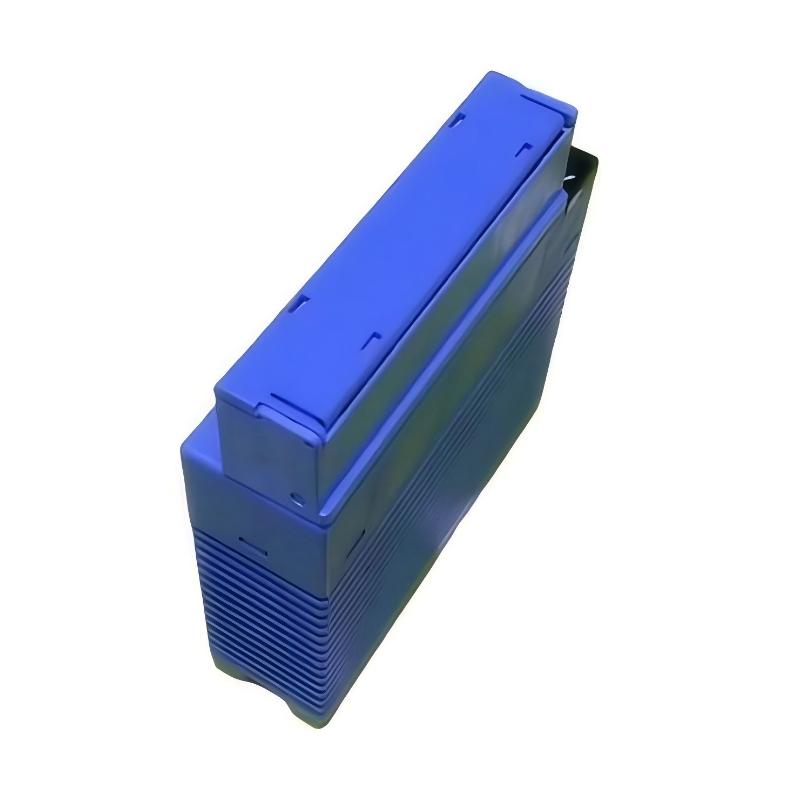

The Yokogawa F3DA08-5R Analog Output Module is engineered for precise and reliable analog signal output in industrial automation systems. Its compact form factor, robust construction, and seamless integration with Yokogawa DCS networks ensure consistent performance, high stability, and uninterrupted operation. This module is ideal for plants where accuracy, reliability, and continuous operation are critical.

Technical Specifications

Specification	Details
Function	Analog Output Module
Signal Type	4–20 mA / 0–10 VDC
Operating Temperature	-10°C to 55°C
Storage Temperature	-20°C to 70°C
Protection	Short Circuit / Overload
Dimensions	28.9 × 100 × 106.2 mm
Weight	0.18 kg
Mounting	Panel / DIN Rail

Recommended Related Models

Yokogawa F3DA16-5R Analog Output Module
Yokogawa F3PA08-5R Analog Input Module
Yokogawa F3IA16-5R Analog Input Module
Yokogawa F3DA08-6R Analog Output Module

Popular Related Models

Yokogawa F3DA08-4S Analog Output Module
Yokogawa F3PA16-5R Analog Input Module
Yokogawa FCS3000D Controller Module
Yokogawa F3DA16-6S Analog Output Module

Applications

Precise analog output control for industrial automation systems.
Integration with Yokogawa DCS and PLC networks for process control.
Signal transmission to actuators, valves, and other field devices.
Critical monitoring in chemical, energy, and manufacturing plants.
Suitable for environments requiring stable, continuous analog output.

Advantages

Delivers accurate analog signals under varying load conditions.
Compact design reduces cabinet space requirements.
Easy integration with Yokogawa DCS and automation systems.
High reliability for 24/7 industrial operation.
Built-in protection against short circuits and signal faults.

Technical FAQs

What is the primary function of this module?
It provides precise analog output to field devices for process control.
Which signal types are supported?
Supports standard analog signals such as 4–20 mA or 0–10 VDC.
Is it suitable for continuous operation?
Yes, designed for 24/7 industrial use.
Can it operate in harsh environments?
Yes, with industrial-grade housing to withstand dust and moderate temperatures.
How is the module installed?
Mounting is simple via panel or DIN rail.
Is it compatible with Yokogawa DCS systems?
Yes, fully compatible with standard Yokogawa DCS communication protocols.
What is the expected lifespan?
Over 10 years under recommended operating conditions.
Does it provide protection against electrical faults?
Yes, internal circuits prevent damage from overloads or short circuits.
Can the module be monitored remotely?
Yes, integration with Yokogawa diagnostic interfaces is supported.
Are replacement parts available?
Yes, through authorized Yokogawa distributors.
