Brand:Yokogawa Electric Item No.:AED5D-05 Product Origin:Japan Product Dimensions:482.6 x 88.1 x 85 mm Product Weight:1.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

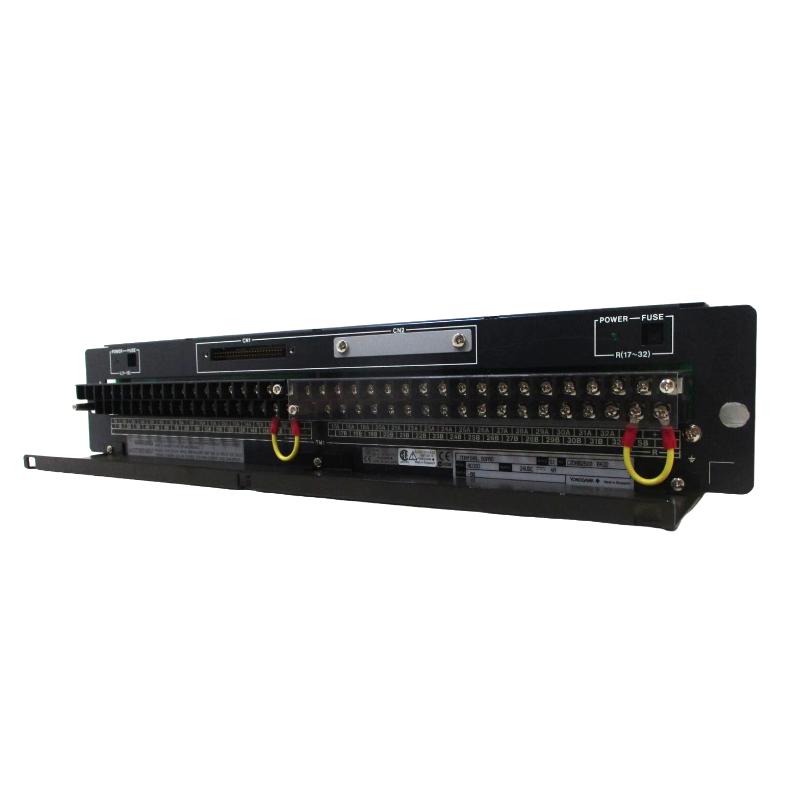

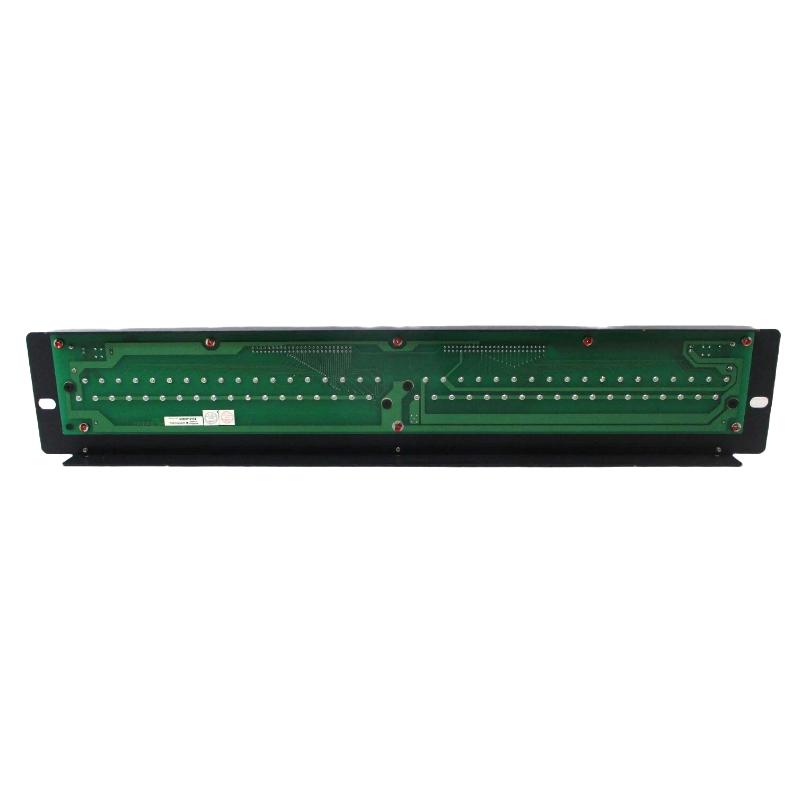

The Yokogawa AED5D-05 Terminal Board reflects precision engineering tailored for modern process automation systems. In complex control environments, structured and secure signal termination is essential for operational stability.
Designed to support clean wiring architecture and long-term durability, the AED5D-05 enhances cabinet organization while maintaining dependable connectivity between field instrumentation and control modules. It is a practical solution for facilities that prioritize uptime, safety, and streamlined maintenance.
Technical Specifications
Parameter
Details
Model
AED5D-05
Manufacturer
Yokogawa Electric Corporation
Product Type
Terminal Board
Mounting Method
Panel Mount
Terminal Type
Screw Terminal
Application
Industrial Control Systems
Operating Temperature
0°C to 55°C
Dimensions
482.6 × 88.1 × 85 mm
Weight
1.5 kg
Recommended Related Models
Yokogawa AAI143-H00 – Analog Input Module
Yokogawa AAI543-H00 – Analog Output Module
Yokogawa ADV151-P53 – Digital Input Module
Yokogawa ADV551-P53 – Digital Output Module
Popular Related Models
Yokogawa AAT141-S00 – Temperature Input Module
Yokogawa AAR181-S00 – RTD Input Module
Yokogawa CP451-50 – Processor Module
Yokogawa PW482-50 – Power Supply Module
Application Environments
The AED5D-05 Terminal Board is engineered for structured field wiring within industrial control systems. It is widely applied in:
Distributed Control System (DCS) marshalling cabinets
Oil & gas production facilities
Power generation control panels
Petrochemical processing units
Water treatment automation systems
Functional Advantages
High Wiring Integrity – Provides stable and clearly organized termination points
Industrial Reliability – Designed for continuous operation in demanding cabinet environments
Seamless System Integration – Built to align with Yokogawa control platforms
Simplified Maintenance – Clear labeling supports faster inspection and diagnostics
Technical FAQs
1. What is the core function of the AED5D-05 Terminal Board?
It provides structured termination points for field wiring connected to Yokogawa I/O modules.
2. Is the AED5D-05 an active signal processing board?
No, it is a passive terminal board without signal conditioning or amplification functions.
3. What signal types can be routed through this board?
It supports routing of analog and digital signals depending on the connected I/O module.
4. Does the board support shield grounding for noise reduction?
Yes, its layout allows proper shield termination to maintain signal integrity.
5. Can it be integrated into redundant control system configurations?
Yes, it can be used within redundant architectures when properly configured.
6. What type of terminal connection does it utilize?
Industrial-grade screw terminals for secure and stable connections.
7. Does it require firmware or parameter configuration?
No configuration is required, as it functions purely as a termination interface.
8. Is it compatible with Yokogawa DCS cabinets?
Yes, it is designed for integration within compatible Yokogawa control environments.
9. How does it contribute to system reliability?
By ensuring structured wiring and stable electrical continuity between field devices and I/O modules.
10. What installation environment is recommended?
It is intended for installation inside industrial control cabinets under standard operating conditions.
