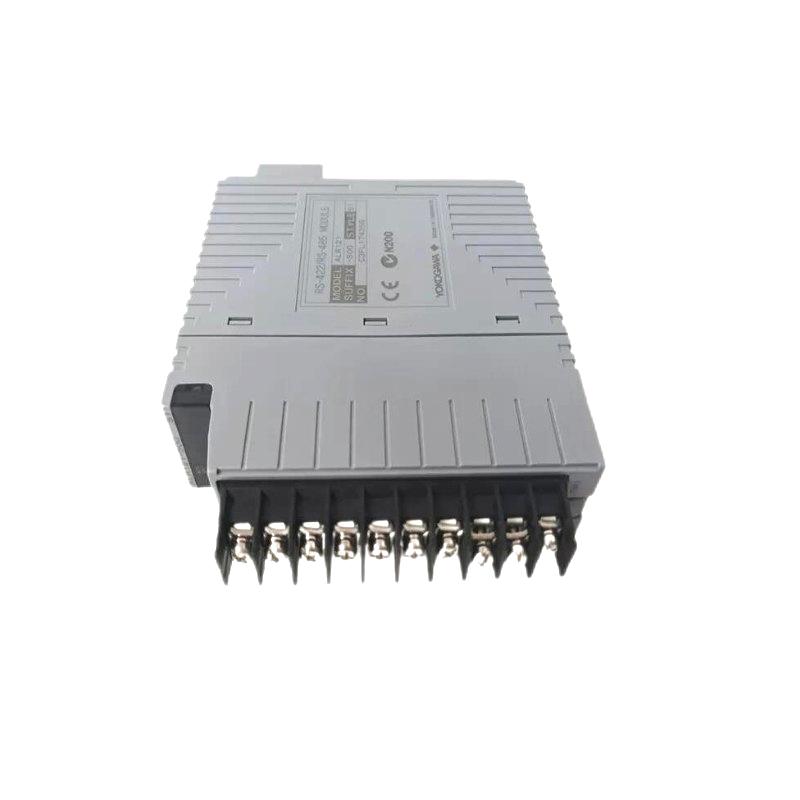

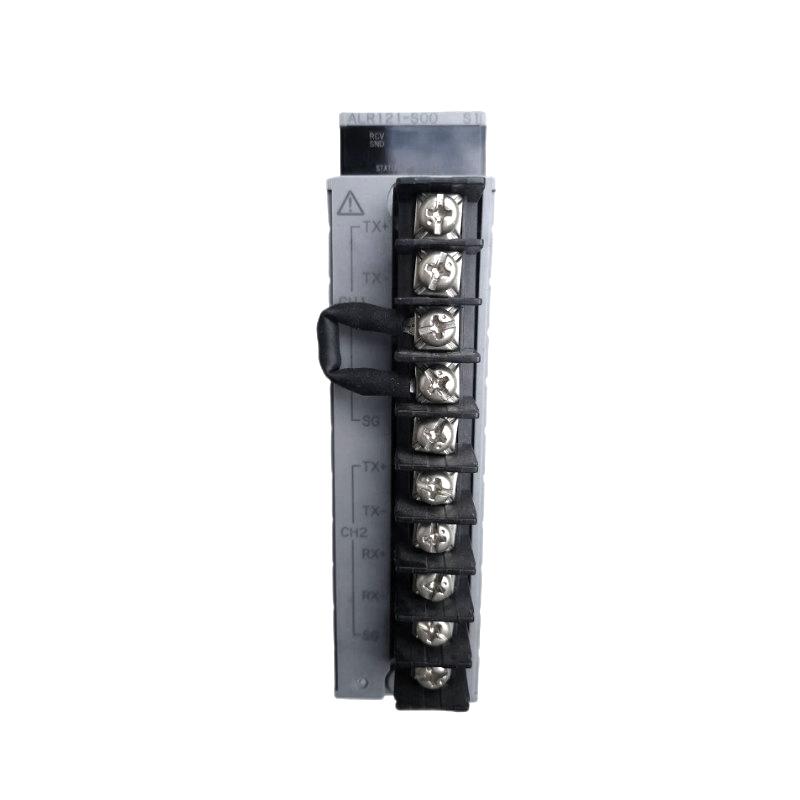

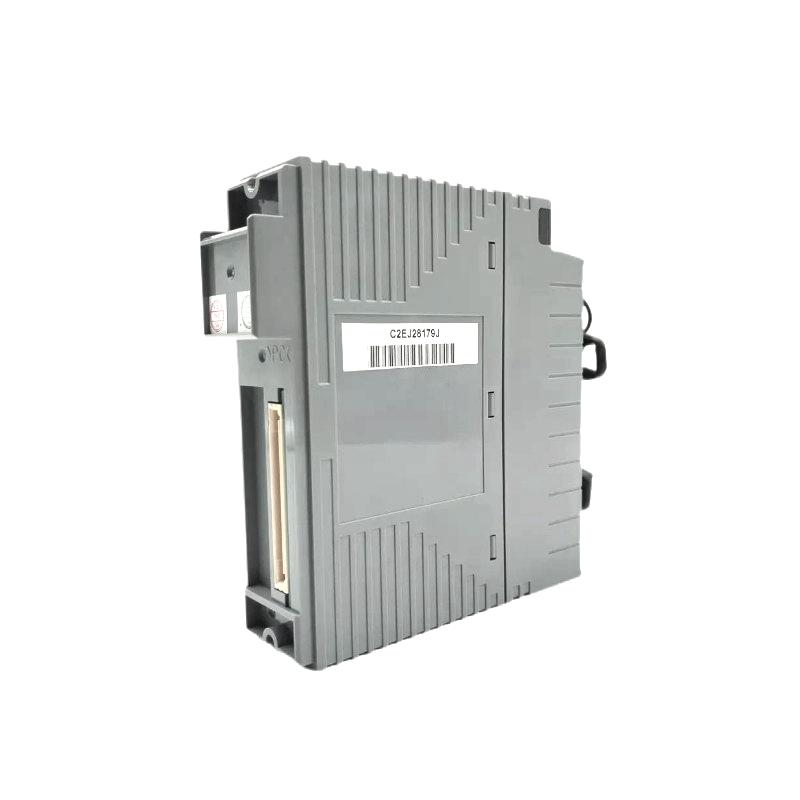

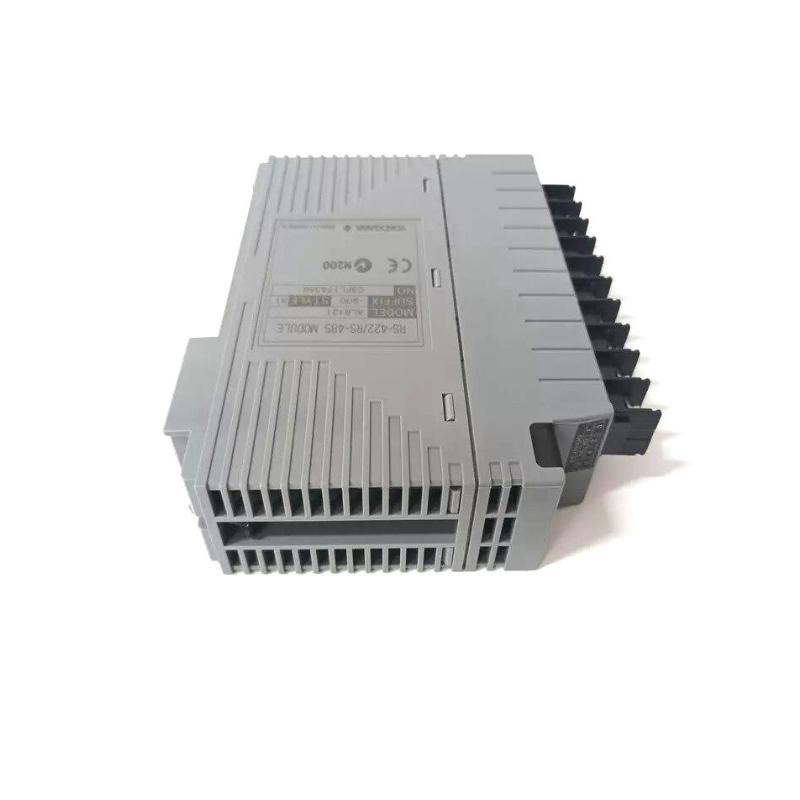

The Yokogawa ALR121 Serial Communication Module is engineered to enable stable and high-integrity communication between field control stations and external subsystems within modern industrial automation architectures. Designed for Yokogawa distributed control environments, the ALR121 supports RS-422 and RS-485 communication interfaces, allowing flexible integration with PLCs, analyzers, instrumentation systems, and other field devices.

This module plays a critical role in subsystem communication within Yokogawa DCS platforms, ensuring reliable data exchange between controllers and connected devices. With support for point-to-point and multipoint communication networks, the ALR121 enables scalable industrial networking while maintaining consistent performance in demanding environments.

Thanks to its robust hardware architecture, compact design, and proven communication stability, the ALR121 module is widely used in process plants, energy facilities, and manufacturing automation systems where uninterrupted data transmission is essential. Its industrial-grade construction ensures dependable operation in harsh environments, making it a trusted component in mission-critical control infrastructures.

Technical Specifications

Parameter	Specification
Brand	Yokogawa
Model	ALR121
Module Type	Serial Communication Module
Communication Interface	RS-422 / RS-485 (4-wire system)
Communication Ports	2 ports
Connection Method	Point-to-Point (RS-422), Multipoint (RS-485)
Communication Mode	Half-duplex
Synchronization Method	Start-Stop Synchronization
Transmission Speed	1200 / 2400 / 4800 / 9600 / 19200 / 38400 bps
Transmission Code	ASCII / Binary
Character Length	7 or 8 bits
Stop Bit Length	1 or 2 bits
Parity Check	None / Even / Odd
Maximum Transmission Distance	Up to 1200 m (RS-485 network)
Connector	D-Sub 9-pin (Female ×2)
Power Supply	24 VDC
Current Consumption	0.5 A
Operating Temperature	-40°C to +75°C
Dimensions (L×W×H)	126.7 × 32.8 × 130 mm
Weight	0.30 kg

The ALR121 allows field control stations to exchange operational data with subsystem equipment through serial communication links, ensuring efficient monitoring and control.

Recommended Related Models

Model	Description
ALR111	RS-232C Serial Communication Module
ALR121-S00	Standard version serial communication module
ALR121-S01	ISA Standard G3 corrosion-resistant version
ALR121-S50	Standard industrial communication version
AKB131	Serial communication cable
AKB132	Shielded interface cable

Popular Yokogawa Modules in Industrial Control Systems

Model	Module Type
AAI143	Analog Input Module
AAI835	High-performance Analog Input Module
ADV151	Digital Input Module
ADV561	Digital Output Module
ALE111	Ethernet Communication Module
ALF111	Field Communication Interface Module
ALP121	Processor Module
AAM51	Multiplexer Module

Applications

The Yokogawa ALR121 module is widely deployed in industrial automation systems that require reliable subsystem communication.

Typical application areas include:

Distributed Control Systems (DCS)
Oil and gas production platforms
Power generation plants
Chemical and petrochemical facilities
Industrial process control lines
Factory automation systems
SCADA monitoring networks
Subsystem integration for PLC or analyzer communication

Its RS-422/RS-485 capability makes it ideal for long-distance industrial communication networks and multi-device connection architectures.

Advantages

Long-Distance Industrial Communication
RS-485 communication allows transmission distances up to 1200 meters, supporting large-scale plant networks.

Flexible Networking Architecture
Supports both point-to-point and multipoint connections, enabling scalable industrial communication systems.

Stable Data Transmission
Industrial-grade design ensures reliable communication even in electrically noisy environments.

Seamless System Integration
Designed for Yokogawa control platforms such as CENTUM and related field control stations.

Compact and Durable Construction
The lightweight and compact design simplifies installation in control cabinets and automation racks.

Energy-Efficient Operation
Low current consumption reduces power requirements while maintaining consistent performance.

Technical FAQs

1. What is the main function of the ALR121 module?
It provides serial communication between Yokogawa control systems and external subsystems using RS-422 or RS-485 interfaces.

2. How many communication ports does the ALR121 provide?
The module typically includes two serial communication ports.

3. What is the maximum communication distance?
RS-485 communication supports distances up to approximately 1200 meters.

4. What communication speeds are supported?
Supported transmission speeds range from 1200 bps to 38400 bps.

5. What communication protocols are supported?
The module supports ASCII and binary transmission formats.

6. What devices can connect to the ALR121 module?
It can communicate with PLCs, analyzers, control instruments, and other industrial subsystems.

7. Which Yokogawa systems support this module?
It can be installed in field control stations such as ANB10, ANR10, AFV10, AFV30, and AFV40 platforms.

8. What type of connector does the module use?
The module uses D-sub 9-pin connectors for serial communication.

9. Is the module suitable for harsh industrial environments?
Yes. It is designed to operate reliably across a wide industrial temperature range.

10. What is the difference between ALR111 and ALR121?
ALR111 supports RS-232 communication, while ALR121 supports RS-422/RS-485 for longer distance and multipoint networking.
