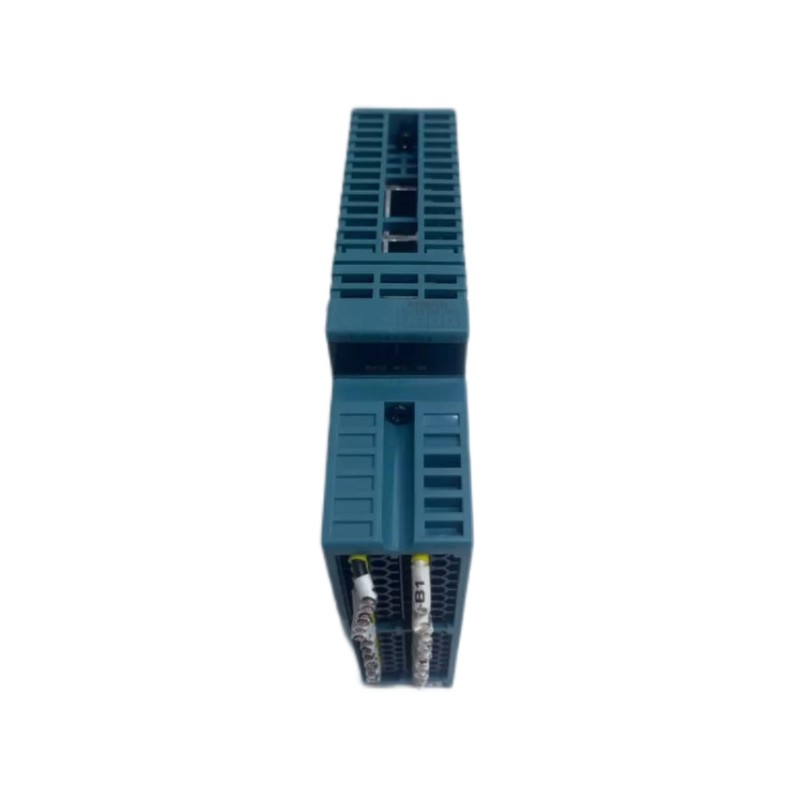

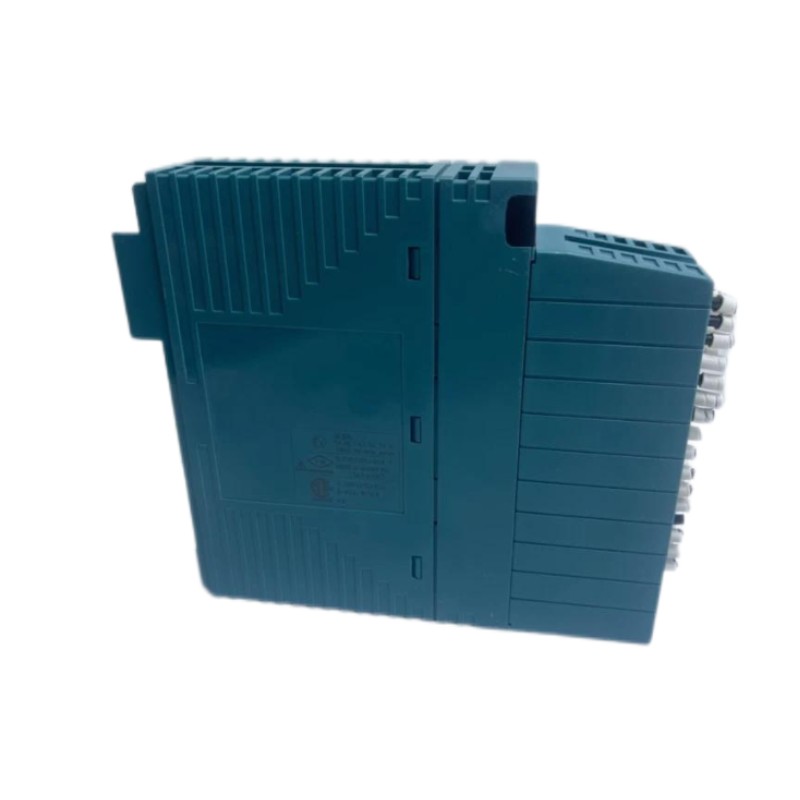

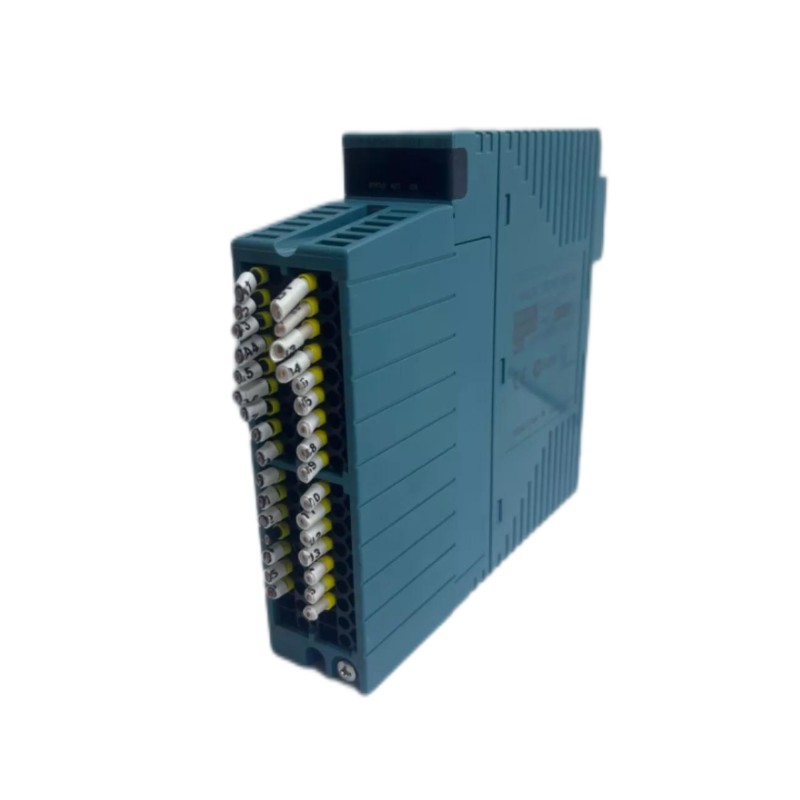

The Yokogawa NFAI543 Analog Output Module is designed to provide precise and stable analog current output signals for advanced industrial automation and process control systems. As part of Yokogawa’s STARDOM modular controller platform, this module converts digital control data from the controller into reliable analog signals used to drive field instruments, actuators, and control devices.

Featuring sixteen isolated current output channels, the NFAI543 ensures high-accuracy signal transmission while minimizing interference between channels. Its robust architecture enables dependable performance in demanding industrial environments where consistent analog control signals are critical for maintaining stable process operations.

The module supports 4–20 mA analog outputs, which are widely used in industrial instrumentation and process control loops. With configurable fallback protection and optional HART communication support, the NFAI543 is an ideal solution for modern automation systems that require both reliability and flexibility in field signal control.

Technical Specifications

Parameter	Specification
Brand	Yokogawa
Model	NFAI543
Module Type	Analog Output Module
Output Channels	16 isolated analog outputs
Output Signal	4–20 mA
Allowable Load Resistance	0–750 Ω
Accuracy	±0.3% of full scale
Resolution	16-bit
Data Refresh Cycle	10 ms
Output Step Response Time	100 ms
Circuit-Open Detection	≤0.65 mA
Temperature Drift	Max ±0.01% / °C
Isolation Voltage	1500 V AC (between output and system)
Current Consumption	230 mA (5 V DC), 540 mA (24 V DC)

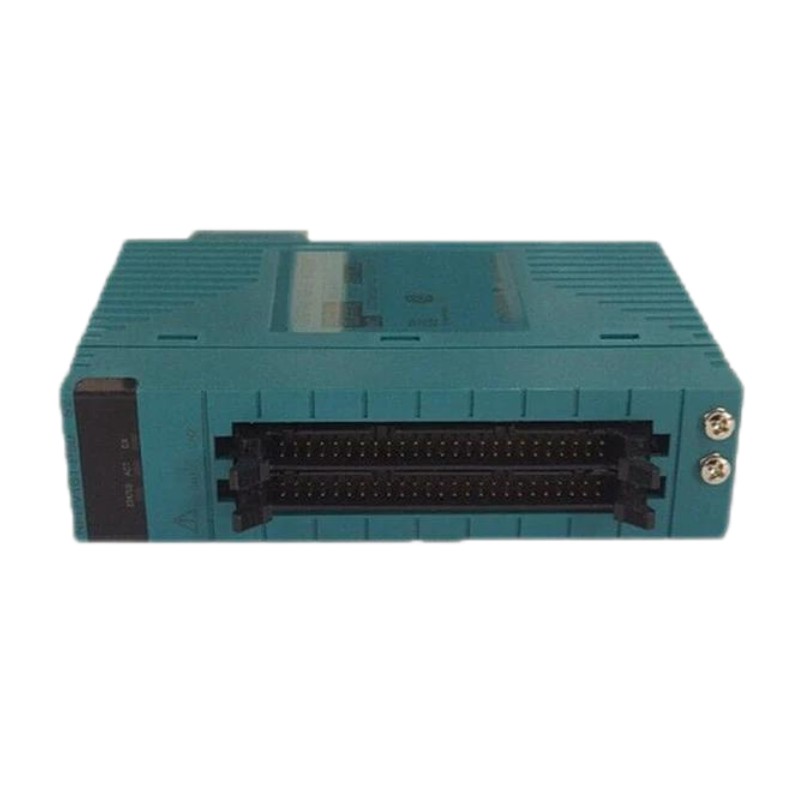

External Connection	Pressure clamp terminal / MIL 40-pin connector
Dimensions (L×W×H)	130 × 32.8 × 107.5 mm
Weight	0.40 kg

The NFAI543 provides high-precision 4–20 mA analog output signals across sixteen isolated channels, ensuring reliable signal transmission and stable process control in industrial environments.

Recommended Related Models

Model	Description
NFAI543-S00	Standard analog output module
NFAI543-H00	Analog output module with HART communication
NFAI143	Analog input module
NFAV542	Voltage output module
NFCP501	STARDOM CPU module
NFTA4S-00	Terminal block for analog modules
NFCCC01	Connector cover for MIL cable

Popular Yokogawa Automation Modules

Model	Module Type
AAI143	Analog Input Module
ADV151	Digital Input Module
ADV561	Digital Output Module
ALE111	Ethernet Communication Module
ALF111	Field Communication Interface
ALP121	Processor Module
ASD533	Digital Output Module
ALR121	Serial Communication Module

Applications

The Yokogawa NFAI543 module is widely used in industrial automation environments where precise analog control signals are required.

Typical applications include:

Distributed Control Systems (DCS)
STARDOM modular controller platforms
Oil and gas production facilities
Power generation and energy plants
Chemical and petrochemical processing
Water treatment and environmental monitoring
Industrial manufacturing automation
Process instrumentation control loops

The module allows control systems to output accurate analog signals to devices such as control valves, variable speed drives, and actuators.

Advantages

High-Precision Analog Output
Delivers accurate 4–20 mA signals with ±0.3% full-scale accuracy, ensuring precise control of field equipment.

16 Independent Output Channels
Supports multi-channel analog output, allowing multiple devices to be controlled simultaneously.

Electrical Isolation for Signal Integrity
Channel isolation helps prevent interference and protects the system from electrical noise.

Fast Control Response
10 ms refresh cycle and 100 ms step response enable rapid system response for dynamic process control.

Flexible Communication Options
Optional HART communication capability allows advanced diagnostics and configuration.

Industrial-Grade Reliability
Designed to operate continuously in harsh process environments with strong electromagnetic interference resistance.

Technical FAQs

1. What is the main function of the NFAI543 module?
It converts digital control signals into analog 4–20 mA outputs for controlling field devices in industrial automation systems.

2. How many output channels does the module support?
The module provides sixteen isolated analog output channels.

3. What signal type does the module output?
It outputs standard industrial 4–20 mA current signals.

4. What is the allowable load resistance?
The supported load resistance range is 0 to 750 Ω.

5. What is the accuracy of the module?
The module provides approximately ±0.3% full-scale output accuracy.

6. What is the refresh cycle for output signals?
The module refreshes output data every 10 milliseconds.

7. Does the module include circuit-open detection?
Yes. It detects open circuits when current drops to approximately 0.65 mA or less.

8. What systems are compatible with the NFAI543?
It is typically used with Yokogawa STARDOM controllers and other industrial control platforms.

9. Can the module support HART communication?
Yes, certain versions support HART communication for advanced diagnostics and device configuration.

10. What devices are typically controlled by this module?
Control valves, actuators, drives, and other field equipment requiring analog current signals.
