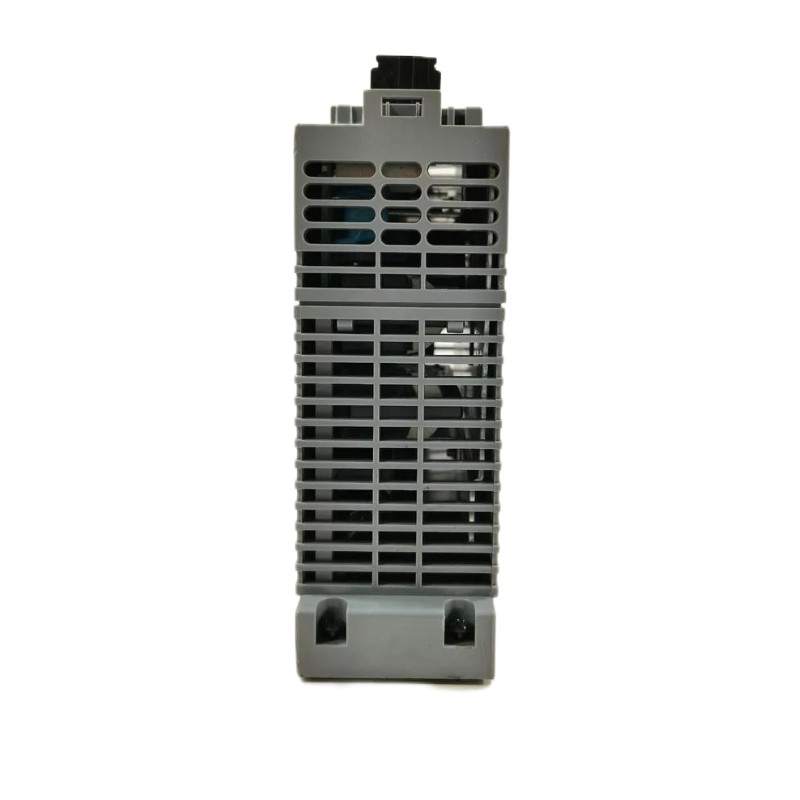

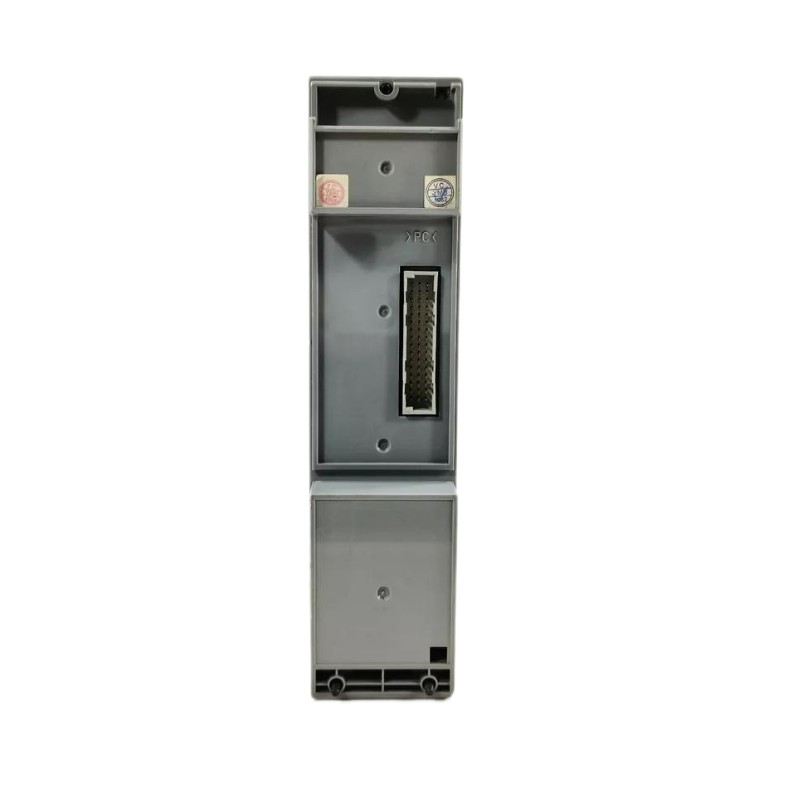

Yokogawa PW482-10 AC Input Power Supply Module for CENTUM VP Distributed Control Systems
Yokogawa PW482-10 AC Input Power Supply Module for CENTUM VP Distributed Control Systems
0.0
Points
Brand:Yokogawa Electric Item No.:Yokogawa PW482-10 Product Origin:Japan Product Dimensions:199.5 × 149 × 49.7 mm Product Weight:1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Yokogawa PW482-10 Power Supply Module is a high-reliability AC input power unit designed for use within Yokogawa distributed control architectures such as CENTUM CS and CENTUM VP. It converts incoming AC power into stable internal DC voltages required by CPUs, communication modules, and I/O subsystems inside the control rack.
Industrial control systems require consistent and uninterrupted power delivery to ensure safe and stable plant operation. The PW482-10 module is engineered with industrial-grade components and protection mechanisms that help maintain system uptime even in demanding environments such as oil & gas plants, chemical processing facilities, and power generation stations.
This module can be installed in Field Control Units (FCU), FIO Node Units, and Optical ESB Bus Repeater Units. For critical applications, two modules can be installed in a redundant configuration to provide continuous power even if one unit fails.
Technical Specifications
Parameter
Specification
Brand
Yokogawa
Model
PW482-10
Module Type
Power Supply Module
Compatible Systems
CENTUM CS / CENTUM VP DCS
Input Voltage
220–240 V AC ±10%
Frequency
50/60 Hz ±3 Hz
Maximum Power Consumption
230 VA
Output Voltage
5.1 VDC and 24 VDC
Output Current
5.1 VDC: approx. 7.8 A / 24 VDC: approx. 1.7 A
Redundancy
Dual-redundant configuration supported
Protection Features
Overload, short-circuit protection
Operating Temperature
−20°C to +70°C
Installation
FCU / FIO Node / ESB Bus Repeater Unit
Dimensions (L × W × H)
199.5 × 149 × 49.7 mm
Weight
Approx. 1 kg
The PW482-10 converts AC power into regulated DC outputs used internally by Yokogawa control systems and is not intended to function as a general-purpose power supply module.
Recommended Related Models
Model
Description
PW481
Standard AC power supply module
PW484
DC input power supply module
CP471
Processor module for CENTUM control systems
ALE111
Ethernet communication module
ALR121
Serial communication module
AAI143
Analog input module
Popular Yokogawa Automation Modules
Model
Module Type
AAI143
Analog Input Module
ADV151
Digital Input Module
ADV561
Digital Output Module
ALE111
Ethernet Communication Module
ALF111
Field Communication Interface
ALP121
Processor Module
ASD533
Digital Output Module
NFAI143
Analog Input Module
Applications
The Yokogawa PW482-10 module is widely deployed in mission-critical industrial automation environments where reliable control system power is essential.
Typical application scenarios include:
Distributed Control Systems (DCS)
Yokogawa CENTUM VP control cabinets
Oil and gas production facilities
Chemical and petrochemical plants
Power generation systems
Water treatment and environmental control systems
Industrial manufacturing automation
By providing stable internal power to system components, the PW482-10 helps maintain continuous operation and prevents unexpected system interruptions.
Advantages
Industrial-Grade Reliability
Designed for continuous operation in demanding process industries with strict stability requirements.
Dual Power Redundancy Support
Two PW482-10 modules can be installed for redundant power configurations, improving system availability.
Stable DC Output for Control Hardware
Provides regulated internal DC voltages required by processors, communication interfaces, and I/O modules.
Wide Operating Temperature Range
Engineered to operate reliably across harsh industrial environments.
Optimized for Yokogawa Systems
Fully compatible with CENTUM series controllers and associated system hardware.
Compact Control Cabinet Design
Slim structure allows easy installation within control racks and automation cabinets.
Technical FAQs
1. What is the main function of the PW482-10 module?
It converts AC input power into stable DC voltages required by Yokogawa control system components.
2. Which control systems use the PW482-10?
It is primarily used in Yokogawa CENTUM CS and CENTUM VP distributed control systems.
3. What input voltage does the module support?
The module supports 220–240 V AC input with 50/60 Hz frequency.
4. Can the PW482-10 operate in redundant configurations?
Yes. Two identical modules can be installed to create a redundant power supply system.
5. What DC outputs are generated by the module?
Typical outputs include 5.1 VDC and 24 VDC for powering internal control system electronics.
6. What is the power consumption of the module?
The maximum power consumption is approximately 230 VA.
7. What is the operating temperature range?
The module typically operates between −20°C and +70°C depending on configuration.
8. Where is the module installed inside the system?
It is installed in FCU units, FIO node units, or ESB bus repeater units within Yokogawa control racks.
9. Can the module be used as a general industrial power supply?
No. It is designed exclusively for Yokogawa automation platforms.
10. Why is the PW482-10 important in automation systems?
It ensures stable and continuous power delivery to essential control hardware, maintaining system reliability and preventing downtime.
