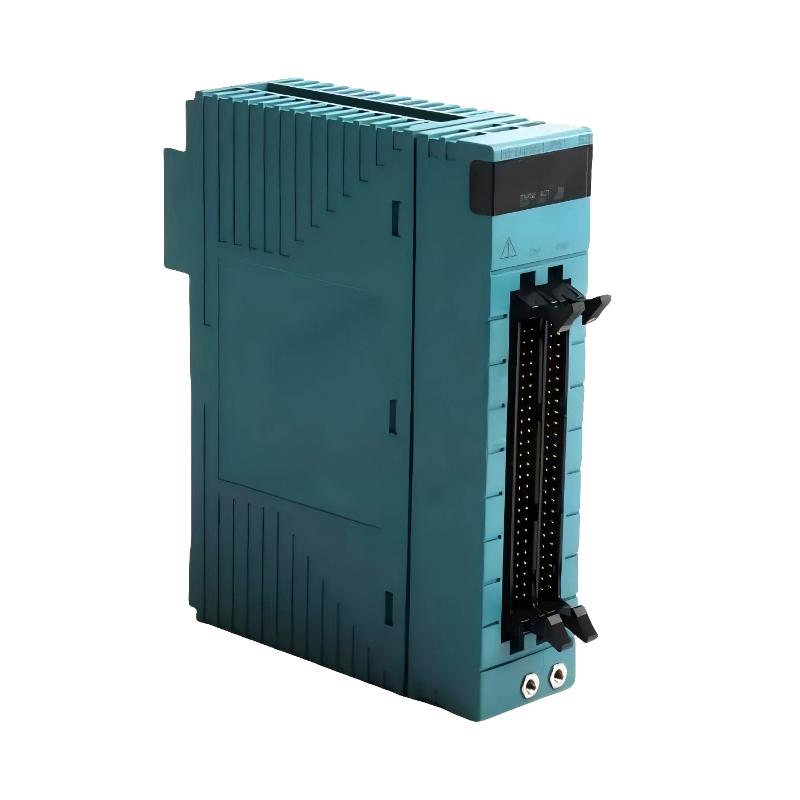

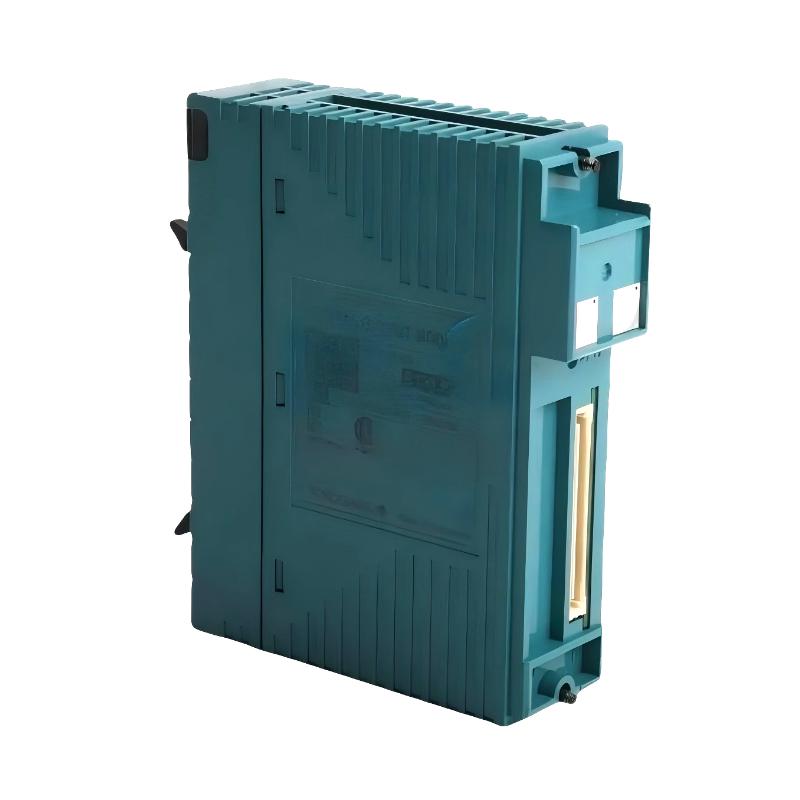

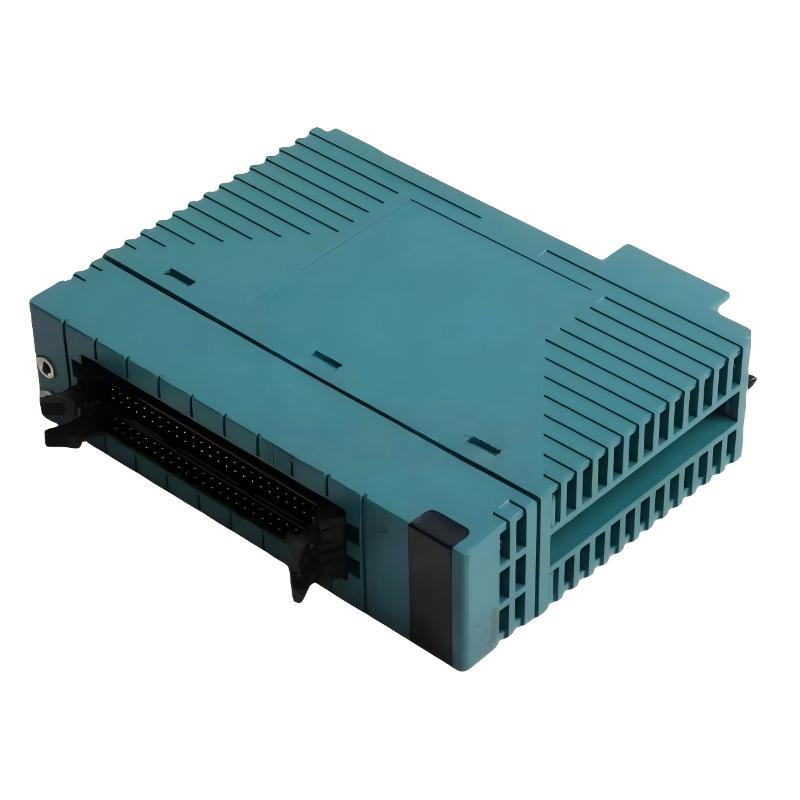

Yokogawa NFAP135-S50 Pulse Input Module

Applications

• High-speed pulse signal acquisition in industrial automation systems

• Flow meter and turbine signal monitoring in oil & gas and water treatment plants

• Encoder feedback processing in motion control applications

• Energy metering and pulse-based measurement systems

• Integration of pulse-generating field devices into distributed control systems

Advantages

• High-speed pulse detection for accurate counting and measurement

• Reliable performance with excellent noise immunity

• Seamless integration with Yokogawa control platforms

• Stable multi-channel processing for complex signal environments

• Compact design for efficient panel and rack installation

Technical FAQs

1. Q: What types of pulse signals does the NFAP135-S50 support?
   A: It supports standard industrial pulse signals such as open collector, voltage pulse, and contact signals.

2. Q: How many input channels are available?
   A: The module typically provides multiple pulse input channels configurable within the system.

3. Q: What is the maximum input frequency supported?
   A: It supports high-frequency pulse inputs suitable for most industrial measurement applications.

4. Q: Can it be used with flow meters?
   A: Yes, it is commonly used with turbine and vortex flow meters generating pulse outputs.

5. Q: Does the module include signal isolation?
   A: Yes, electrical isolation is implemented to ensure signal integrity and system protection.

6. Q: How is the module integrated into the control system?
   A: It connects via the Yokogawa system backplane for direct communication with the controller.

7. Q: Is it suitable for real-time counting applications?
   A: Yes, it provides fast and accurate pulse counting for real-time processing.

8. Q: What diagnostic capabilities are included?
   A: Built-in diagnostics monitor signal status and detect abnormal pulse conditions.

9. Q: Can it operate in noisy industrial environments?
   A: Yes, it is designed with strong anti-interference capability.

10. Q: Does it support redundant system configurations?
    A: Yes, it can be used in redundant architectures to enhance system reliability.
