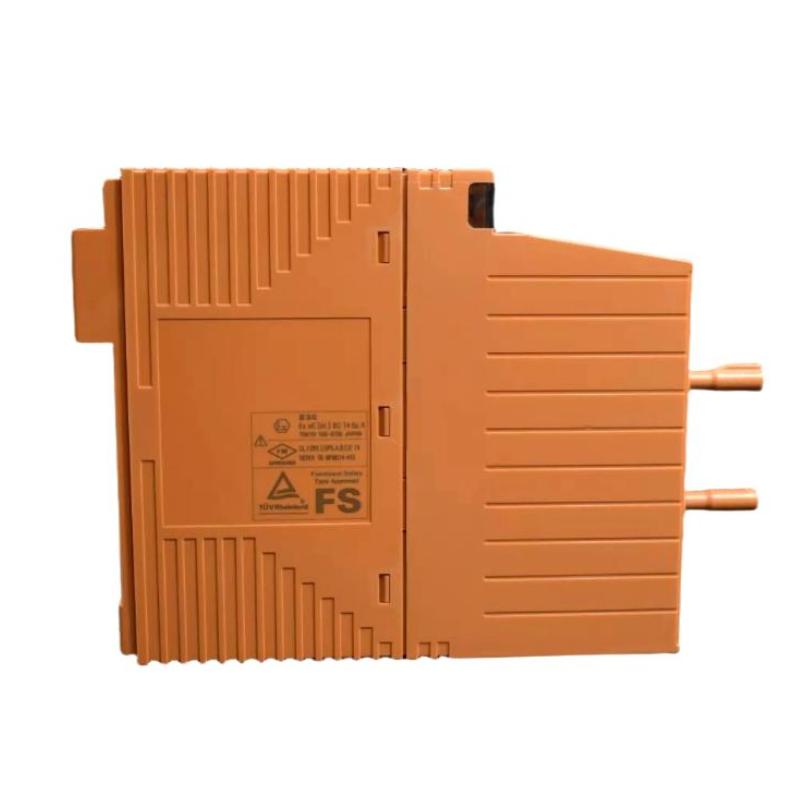

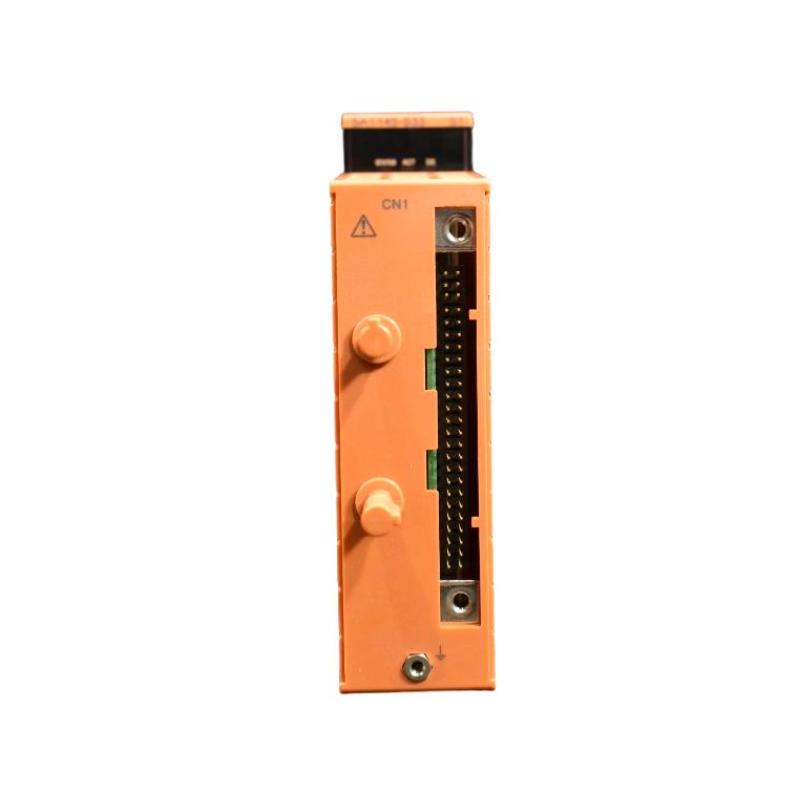

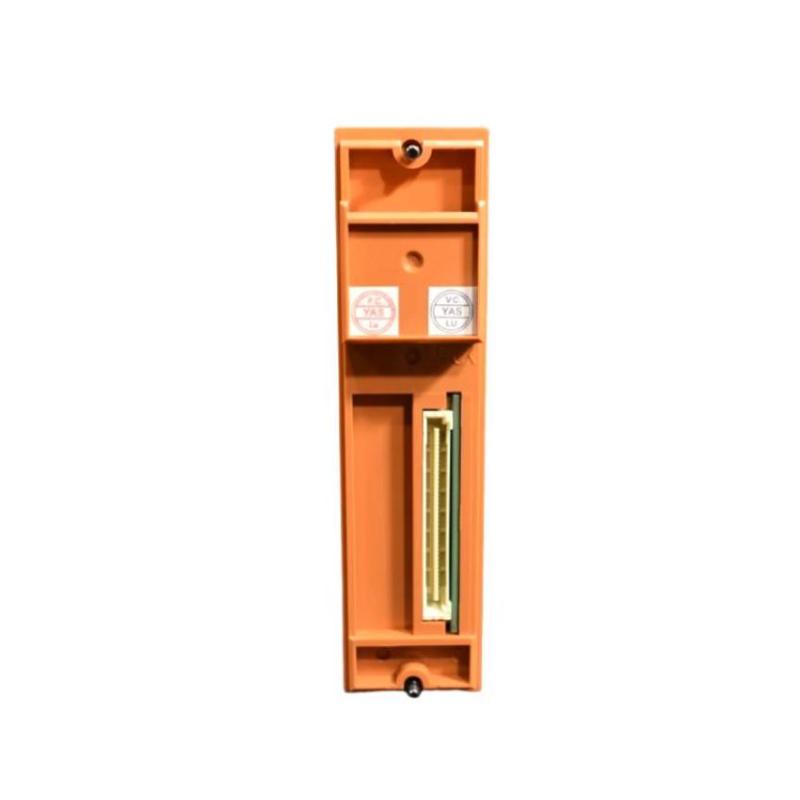

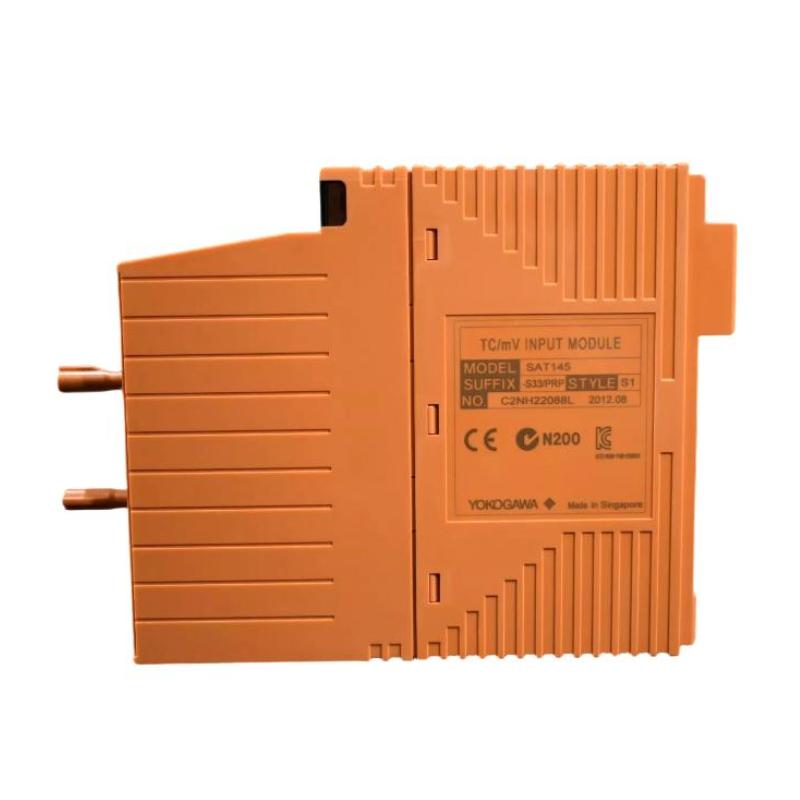

Name: Yokogawa SAT145-S63/PRP S2 TC/mV Input Module
Brand: Yokogawa Electric
SKU: 5916
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Yokogawa SAT145-S63/PRP S2 TC/mV Input Module is designed for precise temperature and millivolt signal measurement in demanding industrial environments. It ensures accurate data acquisition and stable performance, making it an ideal choice for critical process control applications.

Technical Specifications

Parameter	Specification
Module Type	TC/mV input module
Input Signals	Thermocouple (TC), millivolt (mV)
Thermocouple Types	K, J, T, E (configurable)
Compensation	Built-in cold junction compensation
Accuracy	High precision measurement
Communication Interface	System backplane
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Dimensions	130 × 159.8 × 32.8 mm
Weight	0.47 kg

Recommended Related Models

Yokogawa SAT145-S63 S2 TC/mV Input Module
Yokogawa SAT144-S63 S2 TC Input Module
Yokogawa SAT146-S63 S2 High-precision Input Module
Yokogawa SAT142-S63 S2 Temperature Input Module

Popular Related Models

Yokogawa SAI143-S63 S2 Analog Input Module
Yokogawa SAO143-S63 S2 Analog Output Module
Yokogawa SDI143-S63 S2 Digital Input Module
Yokogawa SDO143-S63 S2 Digital Output Module

Applications

Temperature measurement using thermocouples in process industries
Millivolt signal acquisition for precision instrumentation systems
Oil & gas, chemical, and power plant temperature monitoring
Integration with distributed control systems for real-time data acquisition
High-accuracy sensing in critical process control loops

Advantages

High-precision TC and mV signal acquisition for accurate measurements
Stable performance with excellent resistance to signal noise
Wide compatibility with multiple thermocouple types
Reliable operation in continuous industrial environments
Compact structure for efficient system integration

Technical FAQs

Q: What types of input signals does the SAT145-S63/PRP S2 support?
A: It supports thermocouple (TC) and millivolt (mV) input signals.
Q: Which thermocouple types are compatible?
A: Common types such as K, J, T, E, and others depending on configuration.
Q: How many input channels are available?
A: The module typically supports multiple temperature input channels within a single unit.
Q: Does the module include cold junction compensation?
A: Yes, built-in cold junction compensation ensures accurate temperature readings.
Q: What is the measurement accuracy?
A: High accuracy suitable for process-critical temperature monitoring applications.
Q: How is the module integrated into the control system?
A: It connects via the Yokogawa system backplane for seamless communication.
Q: Is it suitable for high-noise industrial environments?
A: Yes, it is designed with strong noise immunity for stable signal acquisition.
Q: Does it support real-time data processing?
A: Yes, it provides fast and reliable real-time measurement data.
Q: Can it be used in redundant systems?
A: Yes, it supports redundant configurations to improve system reliability.
Q: Is calibration supported?
A: Yes, calibration can be performed using Yokogawa engineering tools.
