Introduction

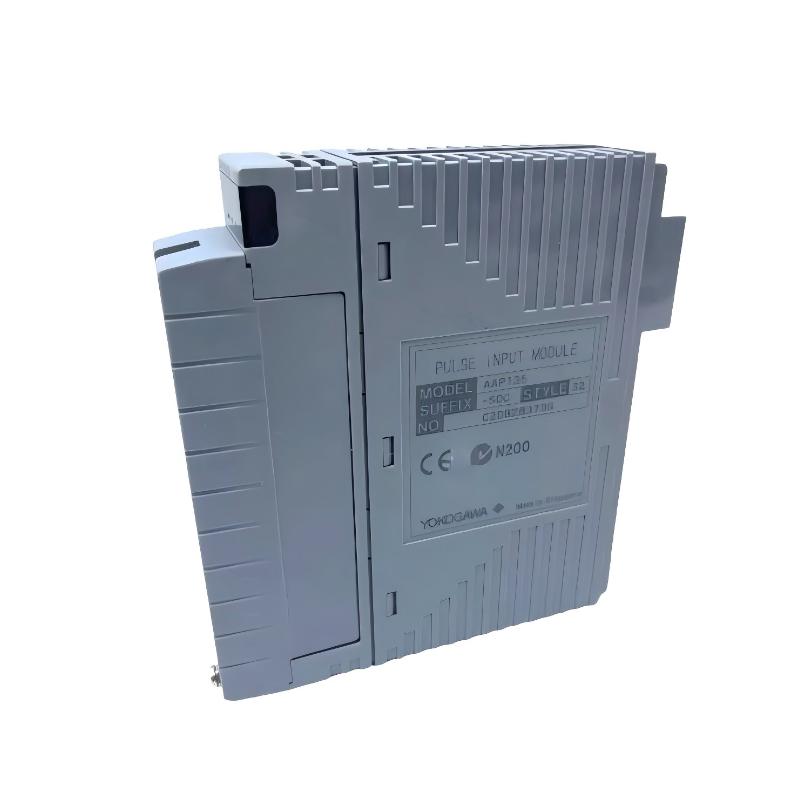

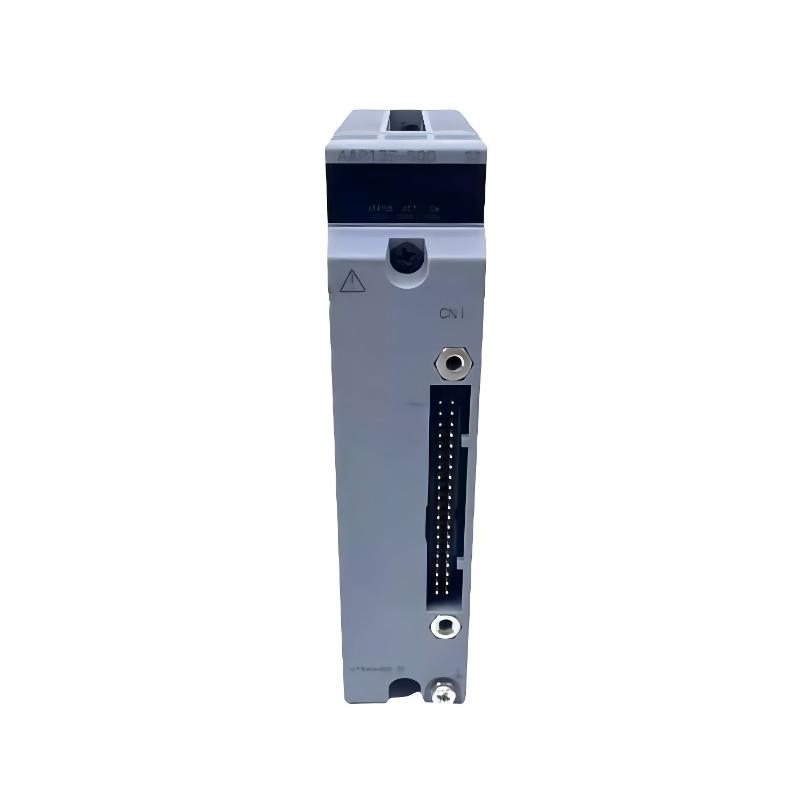

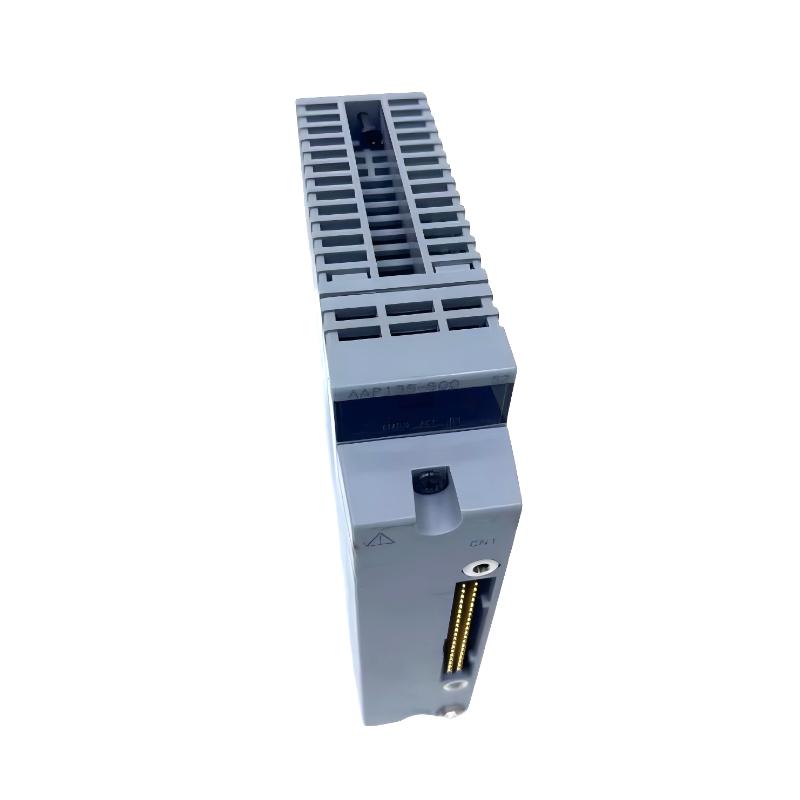

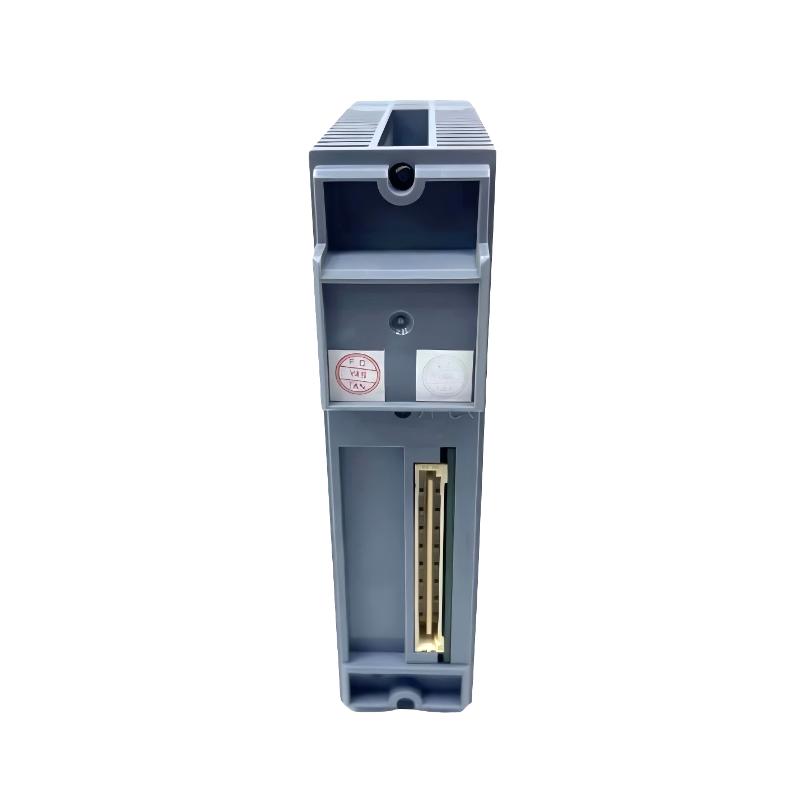

The Yokogawa AAP135-S00/I3S00 Analog I/O Module represents the pinnacle of industrial signal management. Combining precision, stability, and compatibility, it ensures your process control systems operate efficiently and reliably. Designed for engineers who demand accuracy and durability, this module excels in high-stakes production environments where every signal counts.

Technical Specifications

Feature	Specification
Input Type	Voltage/Current (0–10V, 4–20mA)
Output Type	Voltage/Current (0–10V, 4–20mA)
Accuracy	±0.1% of full scale
Response Time	<10 ms
Isolation	Channel-to-channel isolation
Operating Temperature	−10°C to 55°C
Dimensions	107.5 × 32.8 × 130 mm
Weight	0.3 kg
Mounting	DIN Rail / Rack Mount

Recommended Related Models

Yokogawa AAP136-S00/I3S01 – High-density Analog Input/Output Module
Yokogawa AAP138-S00/I3S02 – Enhanced Temperature Signal Module
Yokogawa AAP139-S00/I3S05 – Multi-channel Voltage/Current Module
Yokogawa AAP140-S00/I3S06 – High-Precision Process Control I/O Module

Popular Related Models

Yokogawa AAP134-S00/I3S03 – Standard Analog I/O Module
Yokogawa AAP137-S00/I3S04 – High-Precision Current Output Module
Yokogawa AAP141-S00/I3S07 – Compact Analog Signal Module
Yokogawa AAP142-S00/I3S08 – Universal Analog Input/Output Module

Applications

Continuous process control in chemical, petrochemical, and pharmaceutical plants
Monitoring and regulating temperature, pressure, and flow in production lines
Integration with SCADA (Supervisory Control and Data Acquisition) systems
Use in DCS (Distributed Control Systems) for real-time process optimization
Signal acquisition for critical industrial automation processes

Key Advantages

High Accuracy and Stability: Guarantees precise analog signal processing for critical industrial operations.
Versatile I/O Capability: Supports multiple analog input and output types for flexible system integration.
Robust Industrial Design: Engineered for long-term reliability in harsh plant environments.
Simplified Installation: Compact form factor and plug-in architecture reduce setup time and maintenance costs.
Seamless DCS Compatibility: Fully compatible with Yokogawa CENTUM and other major control platforms.

Technical FAQs

What types of signals does the module support?
Analog voltage and current signals, including 0–10V, 4–20mA, and configurable ranges.
Can it handle high-speed signal acquisition?
Yes, it provides fast sampling rates suitable for process control loops.
What is the typical response time?
Response time is typically under 10 ms, ensuring real-time monitoring.
Is there isolation between channels?
Yes, each channel is electrically isolated to prevent interference.
Can it operate in extreme temperatures?
Yes, the module supports industrial temperature ranges from −10°C to 55°C.
How is the module configured?
Configuration is available via Yokogawa’s DCS engineering software, with intuitive parameter settings.
Does it support redundancy?
Yes, it can be integrated into redundant I/O systems for maximum uptime.
Are calibration adjustments necessary?
Minimal calibration is required, as the module comes factory-calibrated for standard ranges.
What is the expected lifespan?
With proper maintenance, it can operate reliably for over 10 years.
Does it support remote diagnostics?
Yes, diagnostic data can be accessed via DCS or field network for proactive maintenance.
